Removal and Installation Procedures
TLA5000 Series Service Manual
6-27
6. Remove the single T-15 Torx-drive screw that secures the power supply to
the right side of the chassis.
7. Move the power supply towards the front of the instrument to disengage the
power connector from the back panel. Then lift the power supply out of the
chassis so that you can access the cables and disconnect them from the
circuit boards and hard disk drive.
8. Lift the power supply away from the chassis and guide the cables out.
9. To reinstall the power supply do steps 1 through 8 in reverse order. Tighten
the T-15 Torx-drive screws to 8-in lbs.

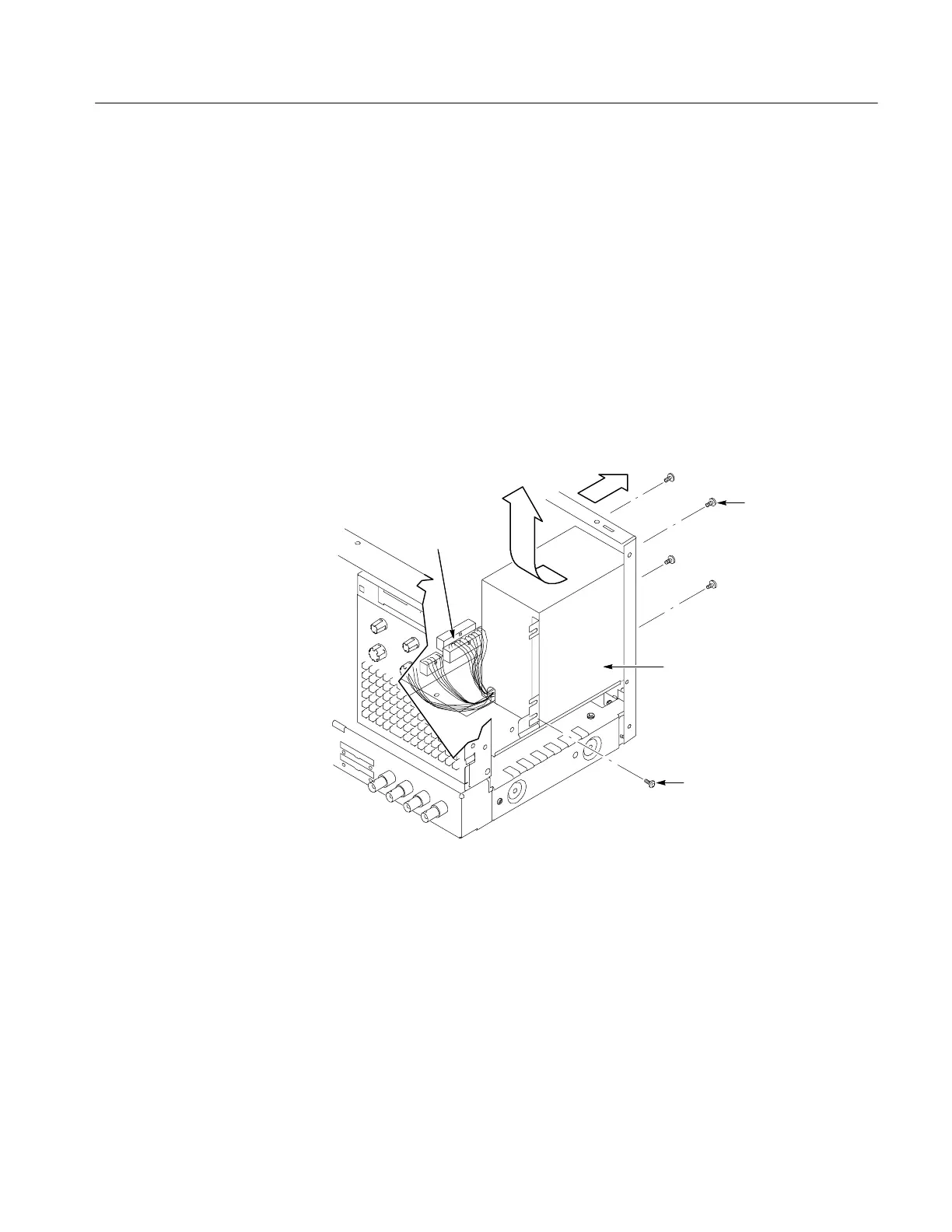

T-15 Torx-drive
screws (4)
Power supply
T-15 Torx-drive
screw (1)
Pull the sheet metal away from the
power supply just enough to clear and
lift the power supply up
Disconnect from the
Interface board and
hard disk drive
Figure 6- 14: Power supply removal
