Name: Tektronix TLA5202
Brand: Tektronix
Rating: 4 (1 reviews)

To Next Page

To Previous Page

Removal and Installation Procedures

6-30

TLA5000 Series Service Manual

Mother board

assembly

T-15 Torx-drive

screws (8)

VGA bracket

Front of the

instrument

Jack screws (2)

T-15 Torx-drive

screws (6)

Jack screws (6)

Mother board

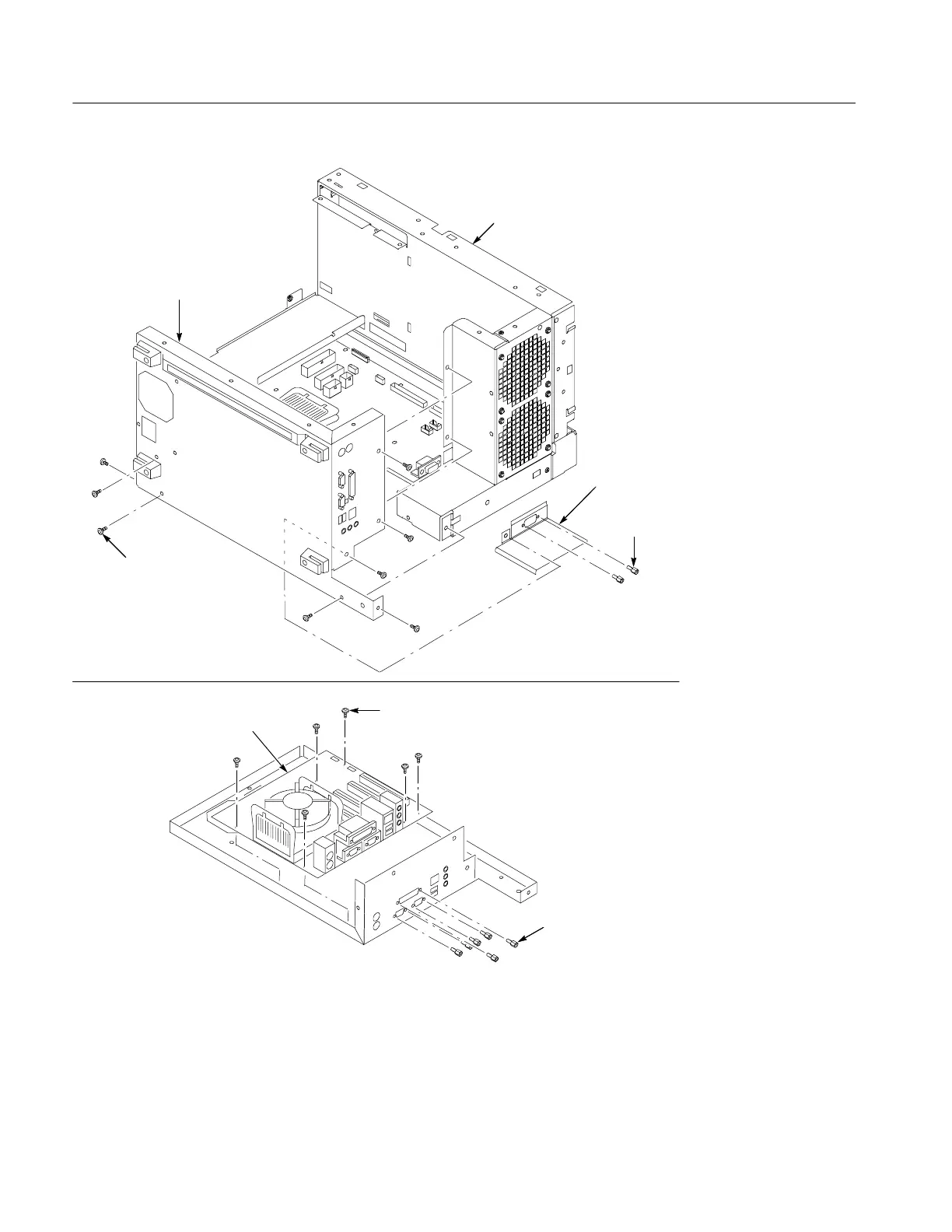

Figure 6- 16: Mother board removal
