Installation Instructions
14
WVR6UP, WVR70UP, and WVR7UP Upgrades
2. If you are installing Option DDE, perform the following sub-steps;
otherwise, skip to step 3.
a. Find the Dolby Module in your kit. In a static safe workstation only,
remove it from the static protective container.

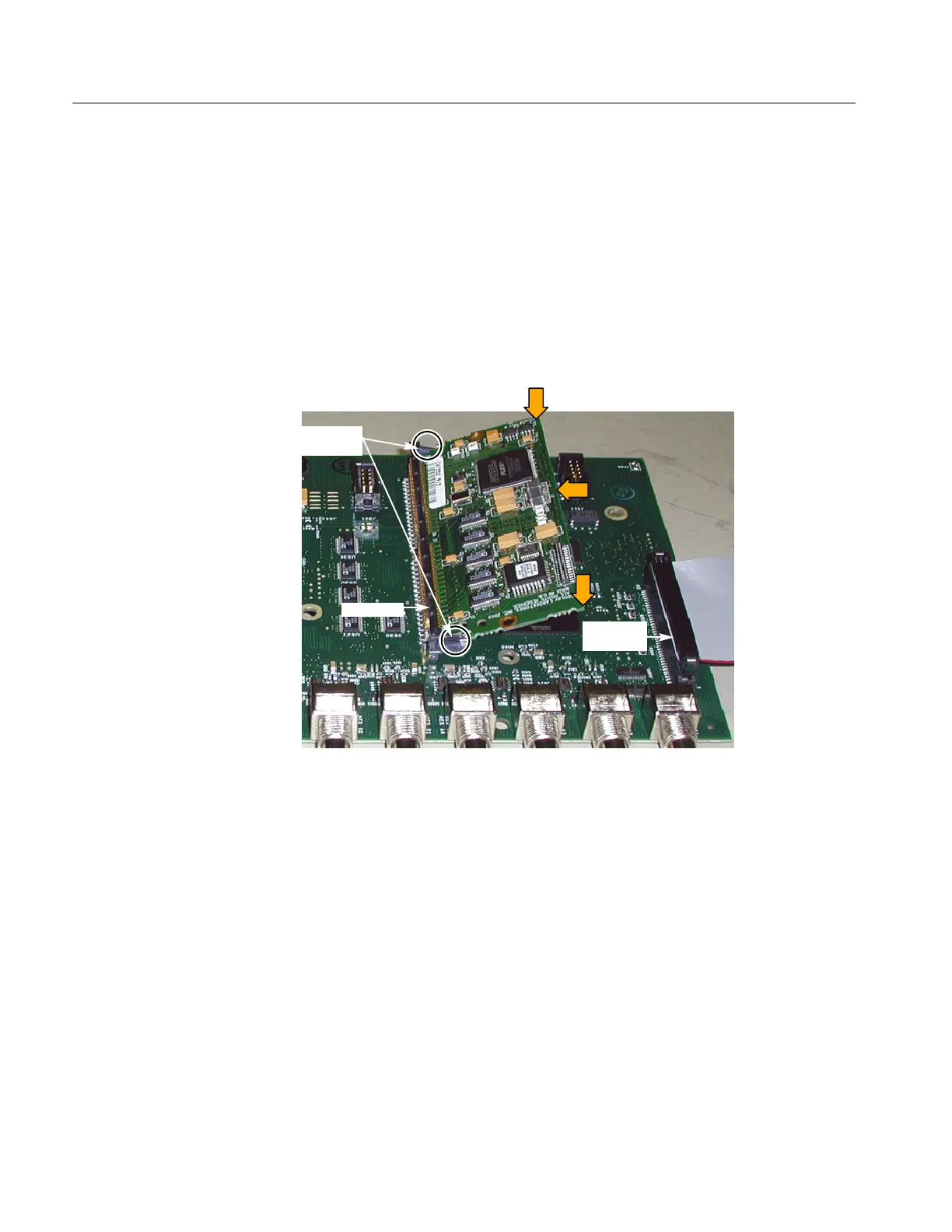

b. As shown in the following figure, push the module into the SIMM
connector to seat it, and then push downward to rotate the module until
it is parallel to the Main board surface and the two connector latches are
locked.
Connector
Connector
latches
Plug in this
cable
3. Plug the 80-pin cable from the new audio board into its jack on the underside
of the M ain board.
4. Install the three mounting posts from the kit in the locations from which you
removed the mounting screws or the mounting posts earlier. The figure
associated with step 6 on page 13 indicates the post locations. Tighten
firmly, but not excessively.
To Next Page
