1-4 Introduction 90453-02 Rev A0

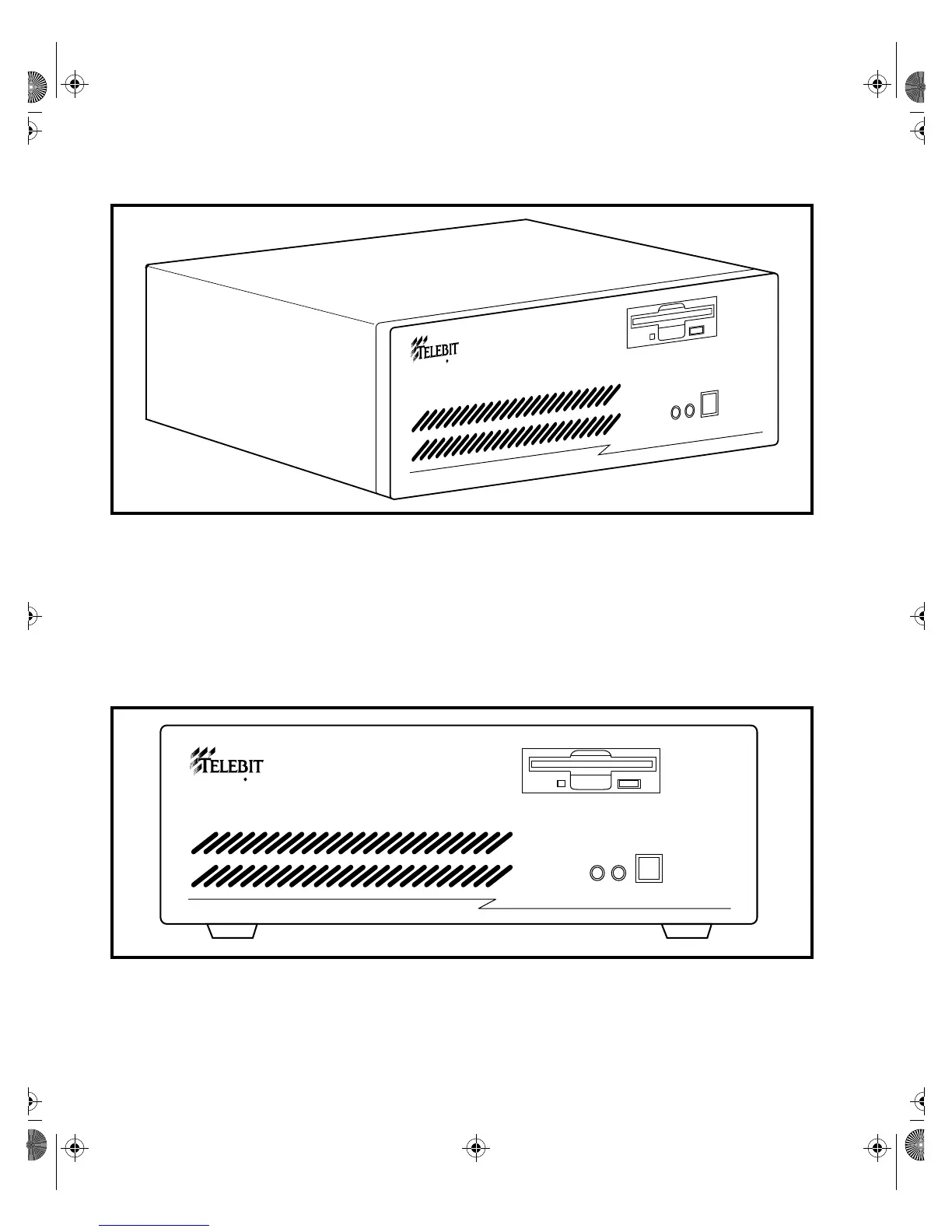

Figure 1-4. The NetBlazer 40i
Figure 1-5 shows the NetBlazer 40i front panel with a 1.44-Mbyte, 3.5-inch
floppy diskette drive, two status indicators, and a reset switch, all located on
the right side. The LED labeled LAN shows Ethernet network activity. The
LED labeled POWER shows that power is on.
The POWER indicator blinks
on and off while the system is powering up.
Figure 1-5. NetBlazer 40i Front View
NetBlazer 40i
LAN POWER RESET
¤
NetBlazer 40i
LAN POWER RESET
¤
Book Page 4 Thursday, March 27, 1997 10:55 AM
