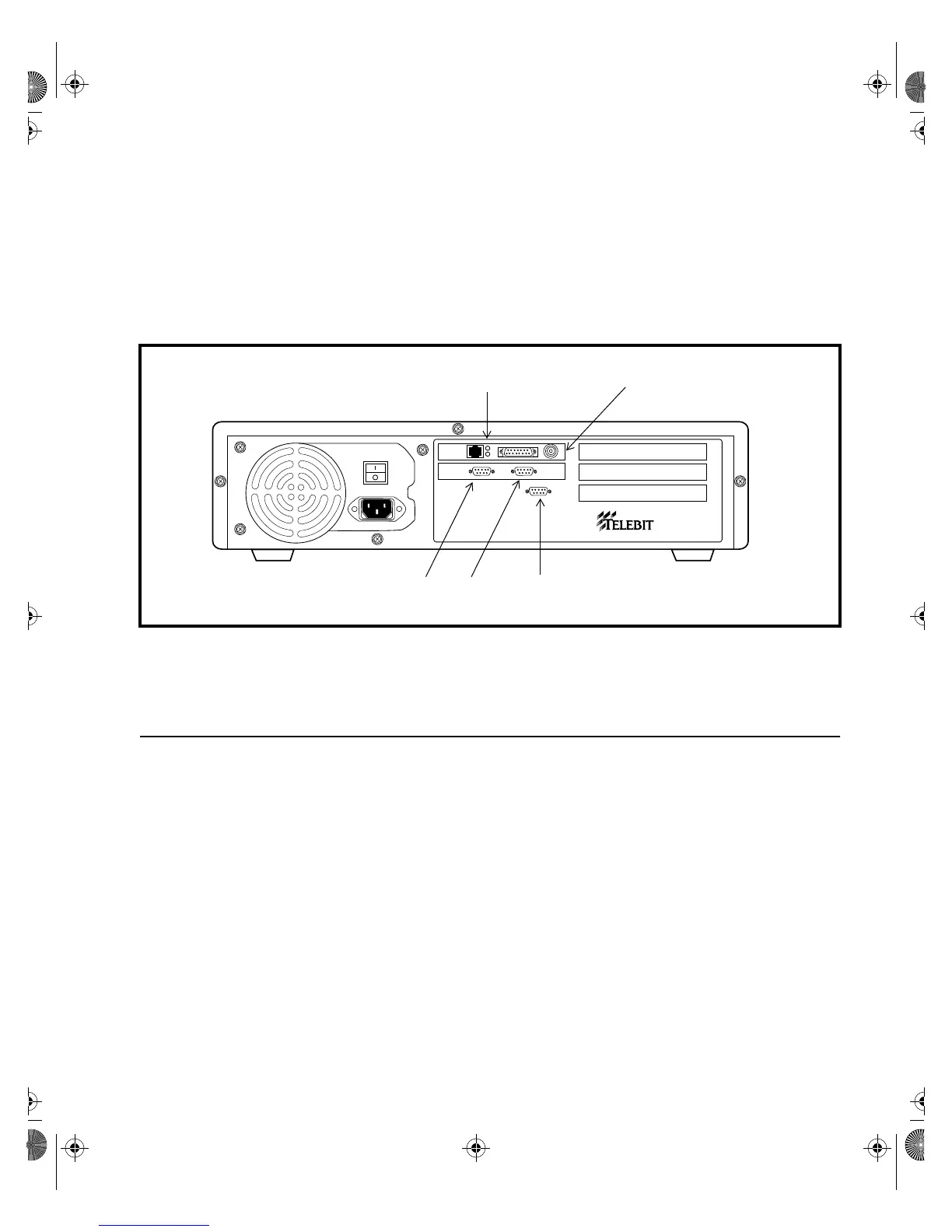

Figure 1-3 shows a typical NetBlazer STi rear panel. The chassis I/O ports,
line00 and line01, are RS-232 9-pin ports available for connection to a
modem or asynchronous terminal at speeds up to 115.2 Kbps. The console
port is also an RS-232 serial port for use with an asynchronous terminal op-
erating at 9600 baud. The NetBlazer STi includes 12 megabytes of system
memory.
Figure 1-3. NetBlazer STi — Typical Rear Panel
NetBlazer 40i Description
The NetBlazer 40i, shown in Figure 1-4, is the most powerful member of
the NetBlazer line of modular routers. The NetBlazer 40i is designed as a
large multiport solution where a high-speed processor and performance is
critical. It is designed for mounting in a 19-inch rack, or can be used on a
desktop or shelf. Applications for which the NetBlazer 40i is suited include
central sites that need up to 32 serial modem ports (NetBlazer 40i with a
NetBlazer MTA32 Rack Adapter).
NetBlazer
®
line00 line01
NetBlazer Combo Board
Status
line02
(console)
LEDs
