90453-02 Rev A0 NetBlazer Installation 2-3
1. Choose an unused option slot and remove the filler panel from the
back panel.
2. As shown in Figure 2-2, carefully guide the option board into its slot
so that the board’s edge connector is aligned with the slot connector
and the cable connectors extend through the slot opening. Then,
firmly press on the top edge of the board until it is securely mated
with its connector.
3. Replace the board mounting screw.

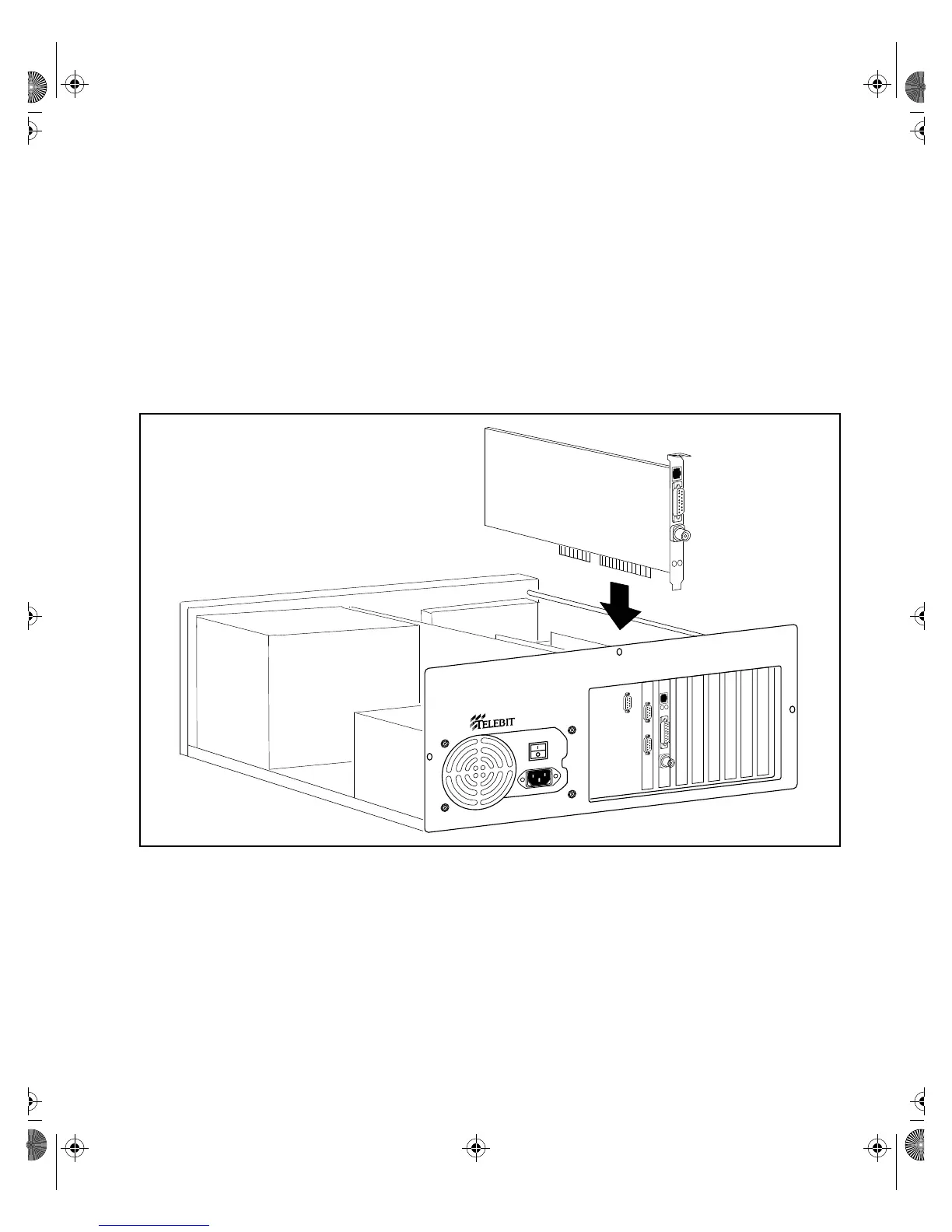

Figure 2-2. NetBlazer 40i Option Board Installation
NetBlazer
®
