7

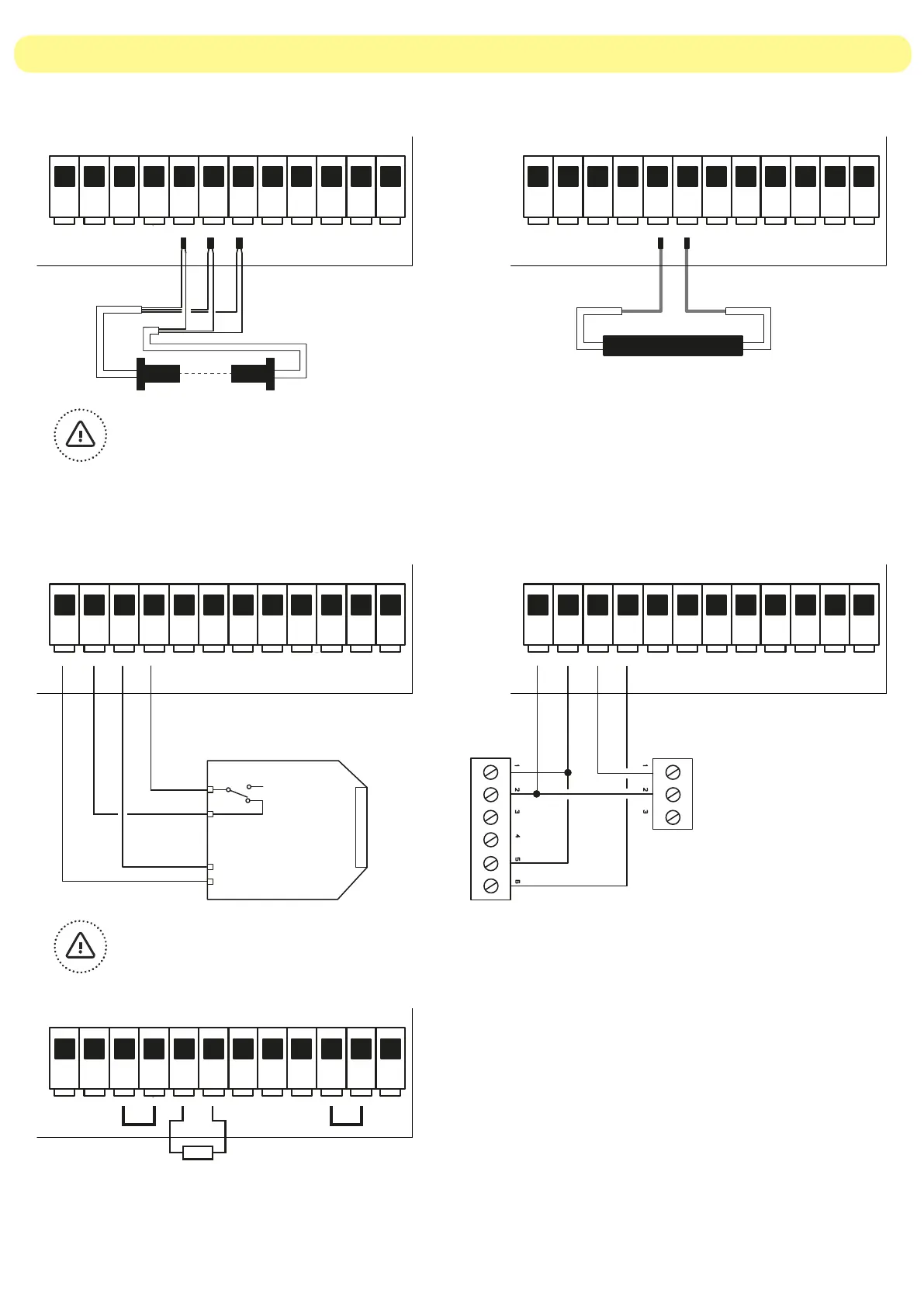

2.5 Wired safety device connections
Infrared (IR) safety edge 8.2Kohm resistive safety edge
Connect a 8K2 resistor between terminals 16 and 17.
Terminals 14 and 15 must be closed by a jumper.
Terminals 21 and 22 must be closed by a jumper.
If no wired safety edge is used, connect a 8K2 resistor between terminals 16 and 17.
Reflex photocell Pair of standard photocells (N.C.)
If no photocells are used, terminals 14 and 15 must be closed by a jumper.
NO WIRED SAFETY DEVICE CONNECTED
12 13 14 15 16 17 18 19 20 21 22 23
16- BROWN
17- GREEN
18- WHITE
12 13 14 15 16 17 18 19 20 21 22 23
8K2
0V
12V
24V
N.O.
COM
N.C.
0V
12V
24V
12 13 14 15 16 17 18 19 20 21 22 23 12 13 14 15 16 17 18 19 20 21 22 23
RX FTC010
TX FTC010
REFLEX
+
-
COM
N.C.
12Vdc - 15Vdc
12 13 14 15 16 17 18 19 20 21 22 23
8K2
