TELECO AUTOMATION TVRDS868B01 User Manual

6

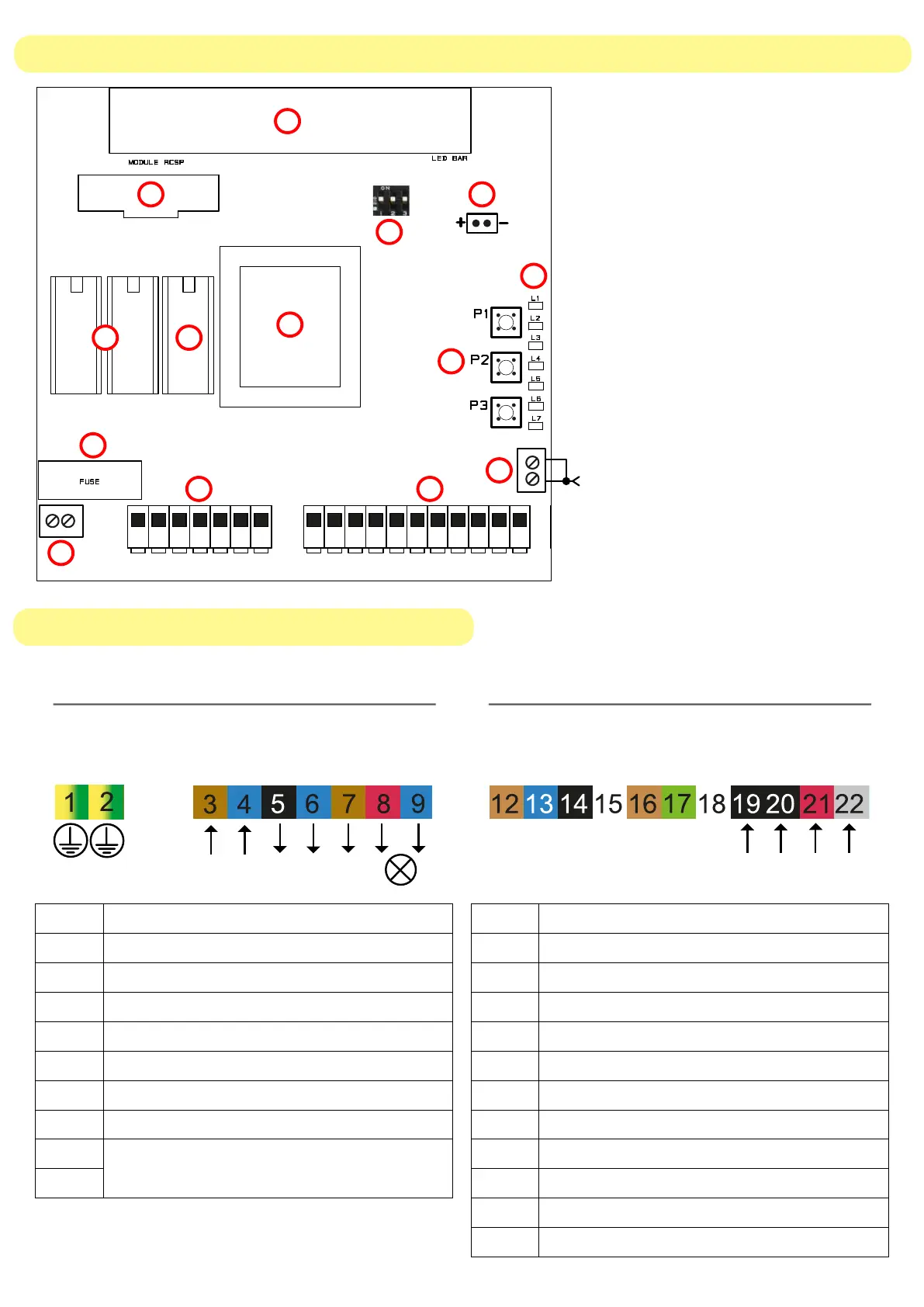

2.3 Control unit diagram
1 - High voltage terminals
2 - Low voltage terminals
3 - 5A fuse
4 - Aerial connection
5 - Programming/command buttons
6 - Dip switches
7 - Status/alarm LED
8 - LED courtesy light
9 - Socket for radio card (MASTER)
10 - Alarm buzzer output
11 - Manoeuvre relays
12 - Common relay
13 - Transformer
14 - Ground terminal
2.4 Electrical connections
High voltage terminals
# CONNECTION
1 Motor Ground
2 230V~ Power supply - Ground
3 230V~ Power supply IN - LIVE
4 230V~ Power supply IN - NEUTRAL
5 Motor - OPEN
6 Motor - COMMON
7 Motor - CLOSE
8
230V~ LIGHT OUTPUT
(300W max. lamp)
9
# CONNECTION
12 Photocells power supply (+12V)
13 Safety common (COM)
14 Photocells power supply (0V)
15 N.C. contact FTC (photocells)
16 Infrared/8K2 safety edge input (brown)
17 Infrared/8K2 safety edge input (green)
18 Infrared/8K2 safety edge input (white)
19 Push-button common (COM)
20 Push-button (step-by-step, N.O.)
21 Emergency STOP push-button (N.C.)
22 Emergency STOP push-button common
Wired
infrared/8K2
safety edge
Emergency
STOP (TB)
Low voltage terminals
Push-
button
(TD)
Wired
photocells
< -- see pag. 7 for connections -- >
Open COM Close
MOTOR
230V
Line IN
GND
LIGHT
output
Via dell'Artigianato, 16 - 31014 Colle Umberto (TV) ITALY
Tel. +39.0438.388511 Fax +39.0438.388536
Web site: www.telecoautomation.com
DATE: 02/03/17
REV: 1.0
ETI-MORS-RDSB02
Da stampare a colori
L N
1
4
5
2
3
6
7
8
9 10
11
13
12
14
3 4 5 6 7 8 9
12 13 14 15 16 17 18 19 20 21 22
TB COM
COM
TD
Via dell'Artigianato, 16 - 31014 Colle Umberto (TV) ITALY
Tel. +39.0438.388511 Fax +39.0438.388536
Web site: www.telecoautomation.com
DATE: 02/03/17
REV: 1.0
ETI-MORS-RDSB02
Da stampare a colori
