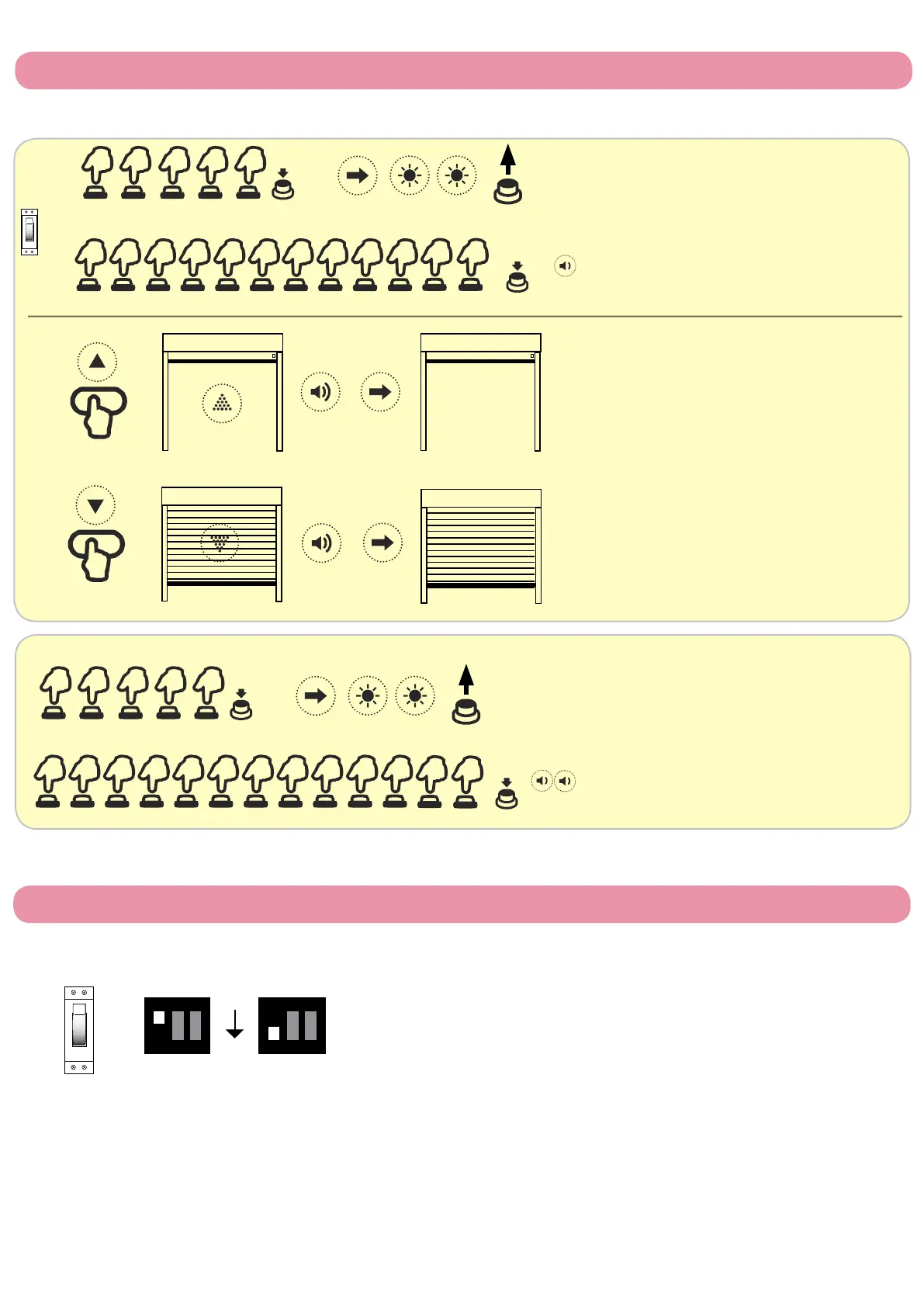

3.1 Limit switches configuration
Open the door (in hold-to-run mode) in order
to set up the upper limit switch.
Close the door (in hold-to-run mode) in order
to set up the down limit switch.
hold-to-run
DEACTIVATION
P2
( 5 s)
keep it
pressed
Press P2 button five times and keep it
pressed for at least 5 seconds. L7 starts
flashing.
Press P2 button twelve times and keep it
pressed for 5 seconds. The buzzer emits 1
beep and L7 flash fast.
L7 flashes
slow
...
( 5 s)
keep it
pressed
HOLD TO RUN
L7 FLASH FAST
( 5 s)
keep it
pressed
L7 flashes
slow
...
( 5 s)
keep it
pressed
Press P2 button five times and keep it
pressed for at least 5 seconds. L7 starts
flashing slow.
Press P2 button thirteen times and keep
it pressed for 5 seconds. The buzzer emit
2 beeps.
hold-to-run
5x
12x
5x
13x
WITHIN 30 SEC.
FROM POWER-ON
P2
P2
P2
Procedure only with hold to run commands. Warning: The safety devices are excluded!
ON
1 2 3
ON
1 2 3
ON
3.2 Deactivation of wireless safety system
This function is possible ONLY within 30 seconds from the power on of the control unit.
By default DIP1 is ON (system activated).
Switch the unit on and move DIP1 to OFF within 30 seconds.
ON to OFF
The control unit will emit 6 beeps if the system has been correctly deactivated.
It is possible activate the safety system again, moving DIP1 from OFF to ON within 30 seconds from
power-on. After keeping pressed P2 button for 5 seconds, the control unit will emit 7 beeps.
Press P2 button for 5 seconds and hold it down
