Teleco TVPLS868TT3 User Manual

2
1. Connections and adjustments p. 6
2. TRANSMITTERS p. 3 - 5
2.1 Radio codes memorization
2.2 Working time conguration (necessary if 7/42 channel transmitters are used)
2.3 Radio codes deletion
2.4 Remote memorization of other radio codes
2.5 Remote deletion of a radio code
3. SENSORS p. 5 - 6
3.1 WIND sensor
3.2 RAIN sensor
3.3 SNOW condition
3.4 Activation/Deactivation rain sensor or rain sensor and temperature (Snow)
4. Technical specications p. 7
INDEX
WARNINGS
The product at issue must be installed, commissioned and maintained only by licensed and
authorised people, respecting the laws concerning the automatic covers. The system is powered
by 24Vdc. Before the connection to the power supply make sure that the sensors and motors are
correctly connected. A faulty connection of the motors (polarity inversion) could damage them
together with the connected mechanical elements. The power supply must supply the required
voltage and current according to the characteristics of the system. The power supply must be
compliant with IEC60950-1 and must be protected against the short-circuit and over-voltage. Use
a 2x1.5mm cable to connect the motors and the control unit for length up to 6m, or 2x2.5mm cable
for longer segments. PRODUCT DISPOSAL: at the end of this product’s useful life, it must not be
disposed of as domestic waste, but must be taken to a collection centre for waste electrical and
electronic equipment. The manufacturer, Teleco Automation s.r.l, declares that the type of radio
equipment is compliant with Directive 2014/53 / EU. The full text of the EU compliance declaration
is available at the following Internet address: www.telecoautomation.com/ce
In the view of a constant development of their products, the manufacturer reserves the right for
changing technical data and features without prior notice.
1

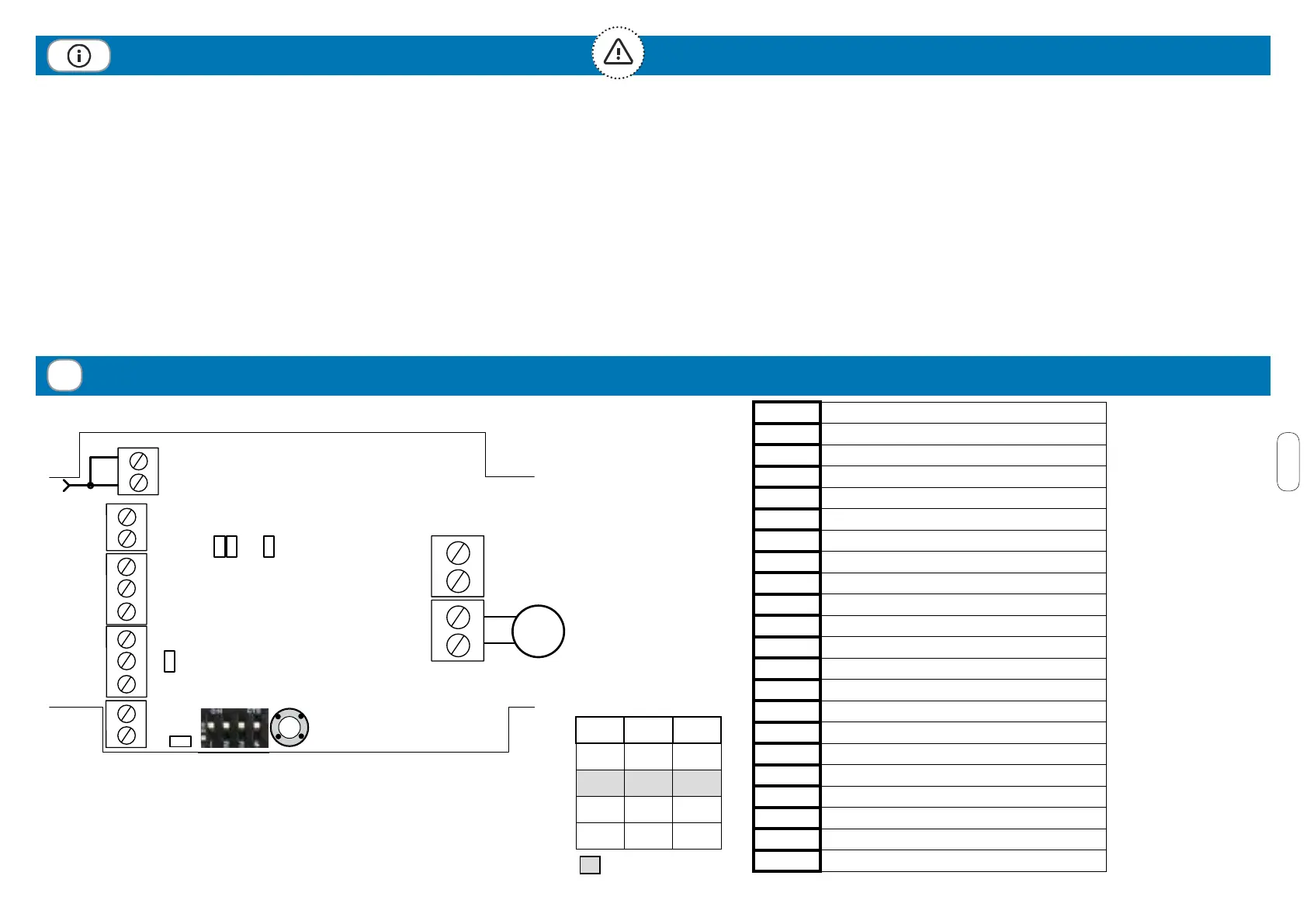

CONNECTIONS AND ADJUSTMENTS
M
AN
LED
-
+
14
13
LM
24Vdc IN
16
15
DIP SWITCH
P1
1
2
5
6
7
8
9
10
11
12
RN
LED
EN
DIP1 DIP2 (A)
OFF OFF 1
OFF ON 2
ON OFF 3
ON ON 4
Default
1
AERIAL GND
2
AERIAL RF
3
TEMPERATURE SENSOR (BLACK)
4
TEMPERATURE SENSOR (WHITE)
5
INPUTS COMMON
6
CLOSE/STOP INPUT (N.O.)
7
OPEN/STOP INPUT (N.O.)
8
RAIN SENSOR (YELLOW, GND)
9
RAIN SENSOR (BLUE, SIGNAL)
10
RAIN SENSOR (WHITE,+12V)
11
WIND SENSOR (BLUE)
12
WIND SENSOR (BROWN)
13
MOTOR (CLOSE)
14
MOTOR (OPEN)
15
+24Vdc POWER SUPPLY
16
POWER SUPPLY GND
AN LED
WIND SENSOR PULSES
RN LED
RAIN SENSOR ACTIVE
L1
ON = RAIN ALARM
L2
FLASHING = WIND ALARM
LM
LIMIT SWITCH LED
P1
PROGRAMMING BUTTON
3
4
L1
L2
M
MOTOR STOPS. The control unit stops the motors at the point of a mechanical
stop through current absorption. The threshold can be set with DIP1 and DIP2
(table). Attention! Check that the motor only stops at the mechanical stops
(LM = ON): increase the threshold if the motor stops during operation or
decrease if the motor continues to push against the mechanical stops.
