remain its status as well.
g. “On & Off”: Both pushbuttons are used to operate the same relay.
Press the “On” pushbutton to activate and the “Off”
pushbutton to de-activate the same relay.
h. “Combination”: When 2 pushbuttons are being pressed
simultaneously, it would result for an
additional relay output (as toggle) to suit some
of the special application such as lighting
system. (No any extra pushbutton required to
save the space and cost)
Note: 1. “Combination” setting is prohibited for magnetic
devices.
2. Click “EXIT” back to the front main page.

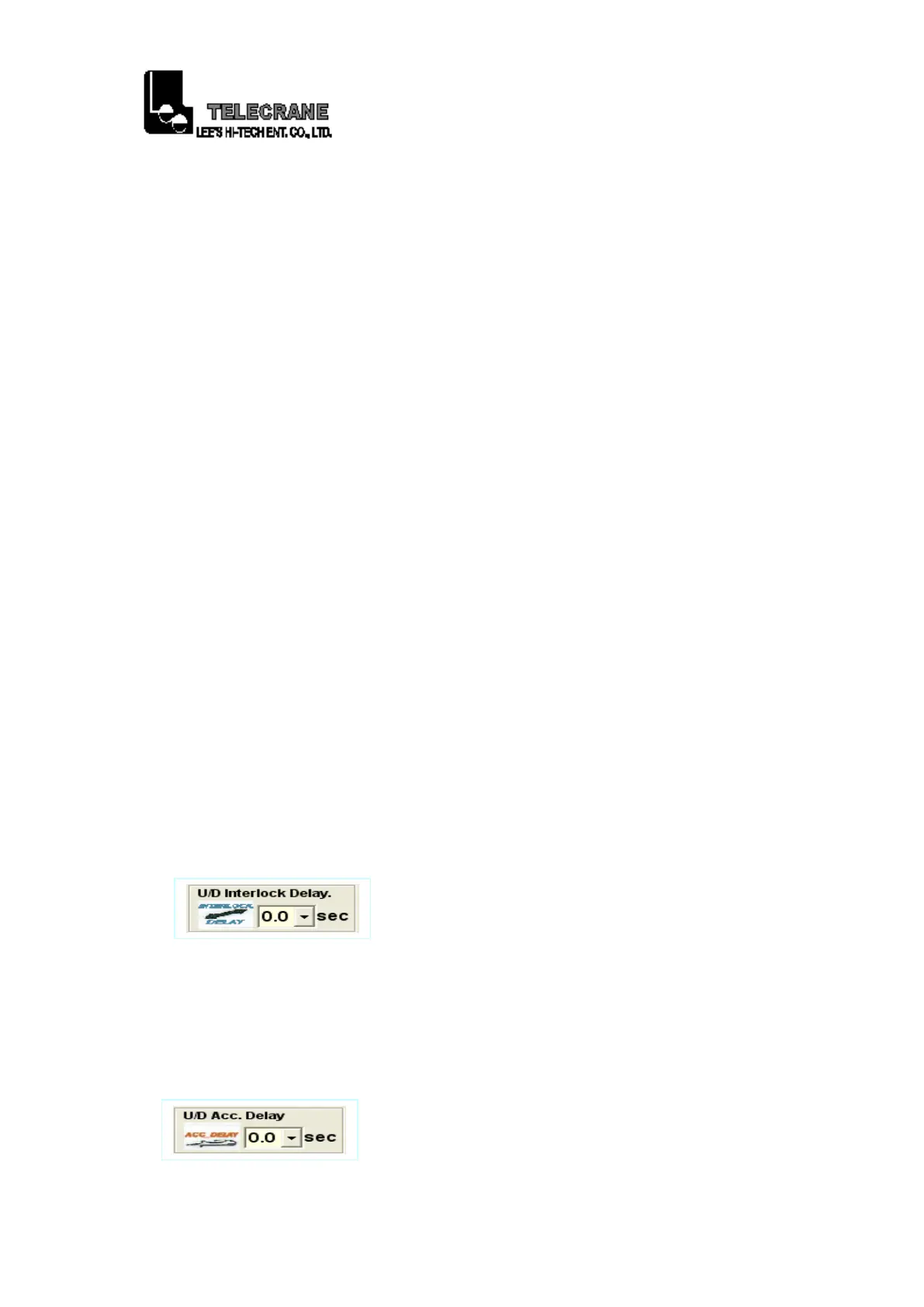

1-38. “Interlock Delay”: This function is available when the “Interlock”
mode (Mode 1) is selected. It is the delay time
between 2 opposite pushbuttons being press one
after another. i.e. while Crane is moving one
direction (forward), moving opposite direction
(backward) immediately would be dangerous
specially when Crane is hooking up the heavy
object. The object may sway if Crane does not
completely stop before moving into opposite
direction. Therefore, the interlocked delay time
could potentially prevent it. Normally the
interlocked delay time should be larger than the
duration of Crane stop.
1-39. “Acc. Delay”: This function is only available for F21-2D/4D to
select the interval time between 1-speed and 2-speed
relay to prevent the Crane directly runs to highest
speed to damage the motor.
22
