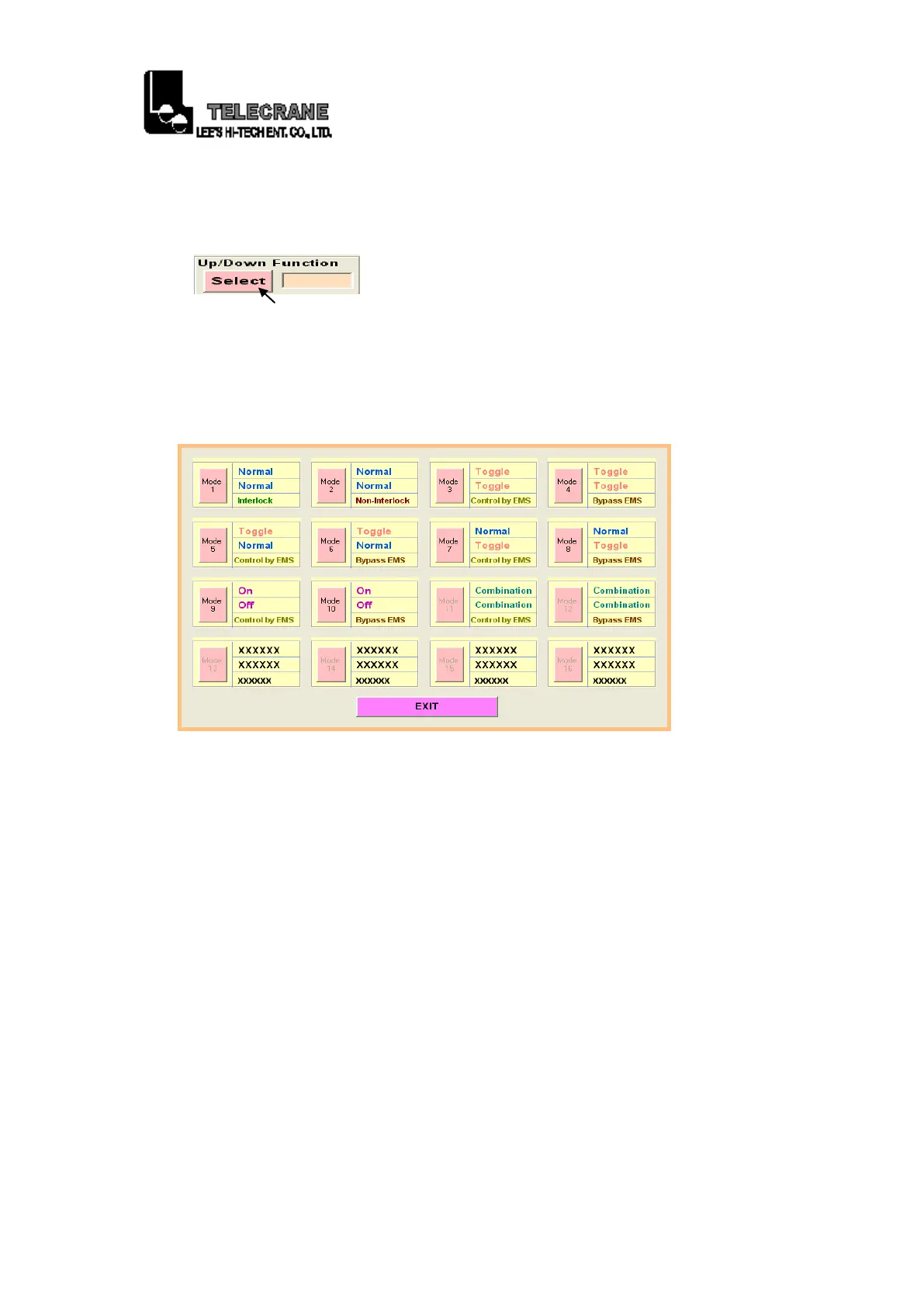

1-36. “Select”: After clicking “Select”, the function modes will appear
for selecting.
1-37. The function modes contain “Normal”, “Interlock”, “Non-
Interlock”, “Toggle”, “Control by EMS”, “Bypass EMS”, “On”,
“Off” and “Combination” etc.
a. ”Normal”: The relative relay is “ON” when the pushbutton
(rotary key switch) is pressed (turned) and held; and
relay is “off” when the pushbutton (rotary key switch)
is released.
b. “Interlock”: The correspondent relay to the two pushbutton are
interlocked, it is not possible to operate two
opposite functions at same time.
c. “Non-Interlock”: The correspondent relays to the two pushbutton
can activate at the time.
d. “Toggle”: The relay is operated by pressing (turning) and
releasing the pushbutton (rotary key switch); press
(turn) and release again to turn off the relay.
e. “Control by EMS”: The correspondent relay to pushbutton is
controlled by an emergency stop signal.
f. “Bypass EMS”: The correspondent relay to pushbutton is not
controlled by an emergency stop signal and will
