ELF System
Copper / Fiber :: ELF Family
2.6 ELF 4-Circuit DNI-1, Wire-Wrap I/O to RJ48C I/O (Model ELF-9704-1119)
This ELF DNI-1 4-Circuit Module contains 4, NE-1 wire-wrap termination on the rear. 4, NE-2 RJ48C
termination are on the front along with 4 sets of Bantam-style patch and monitor jacks for interconnections and
testing. Shields for all cable connectors are connected internally to chassis ground along with a shield ground
pin for the wire-wrapped NE-1 cable. Screws for mounting module to an ELF chassis or lockable wall-mount
enclosure are included.
Circuit Designation
Label
Interconnect Jumper
Tie-Down Bar
NE-1 Interconnect Pinfield
4-Circuit Interconnect Module
DNI-1 Bantam
Jacks
NE-2 RJ48C Jack Field
0.78 (19.9)
5.50
(139.7)
5.11 (129.7)
1.63
(41.3)
0.55
(13.9)
Note: Dimensions are in in. (mm)
Top View
5.86 (148.8)

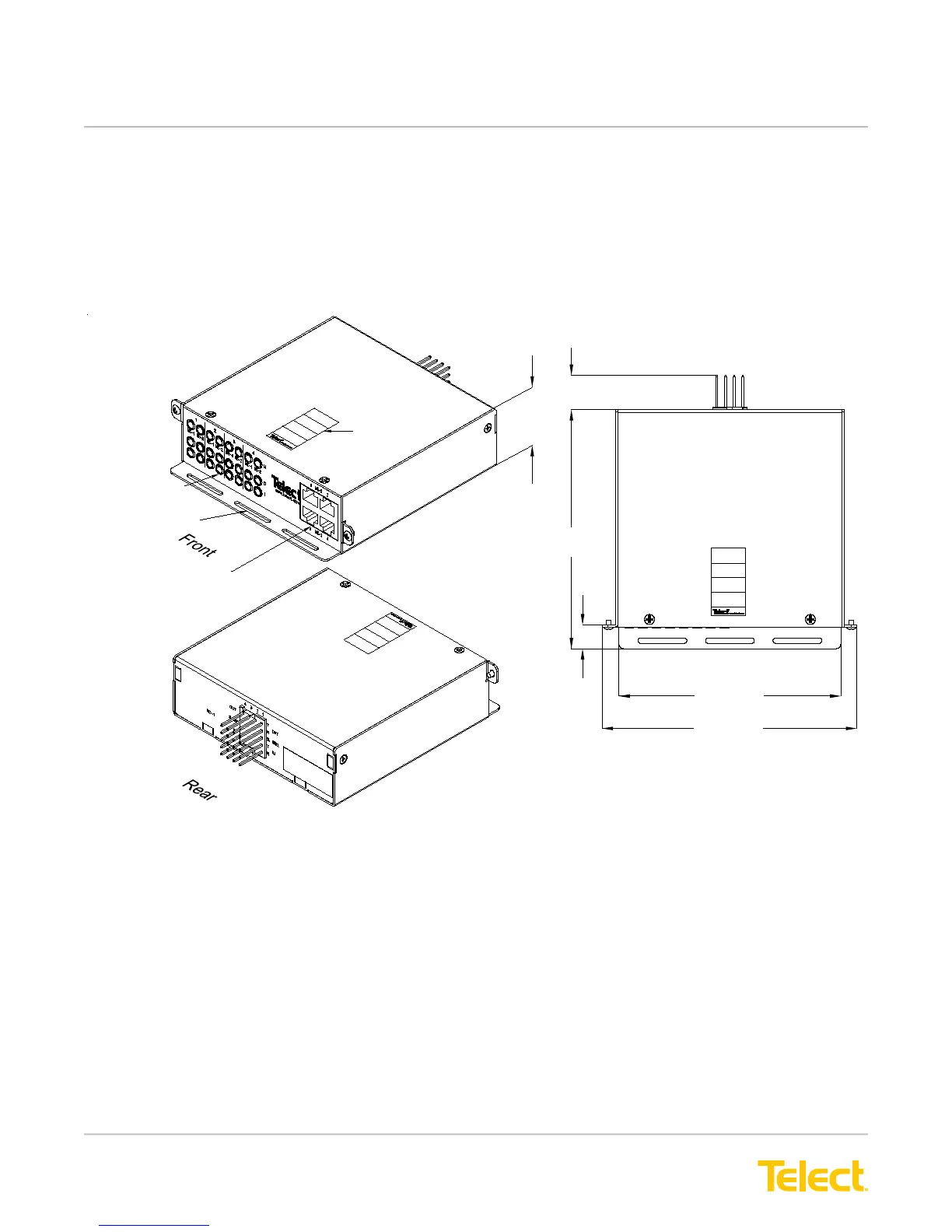

Figure 21 - Model ELF-9704-1119 Dimensions
