ELF System
Copper / Fiber :: ELF Family
2.7 ELF 4-Circuit DNI-1, RJ48C I/O to RJ48C I/O (Model ELF-3004-1800)
The ELF DNI-1 4-Circuit Total Front Access Module contains 4, NE-1 and 4, NE-2 RJ48C terminations on the front
along with 4 sets of Bantam-style patch and monitor jacks for interconnections and testing. Shields for all cable
connectors are connected internally to chassis ground. Screws for mounting module to an ELF chassis, wall-mount
bracket, or lockable wallmount enclosure are included.
Circuit Designation
Label
4-Circuit Interconnect Module
NE-2 RJ48C Jack Field
4.25
(108.0)
5.11 (129.7)
1.63
(41.3)
0.55
(13.9)
Note: Dimensions are in in. (mm)
NE-1 RJ48C Jack Field
Top View
Interconnect Jumper
Tie-Down Bar
DNI-1 Bantam
Jacks
5.86 (148.8)

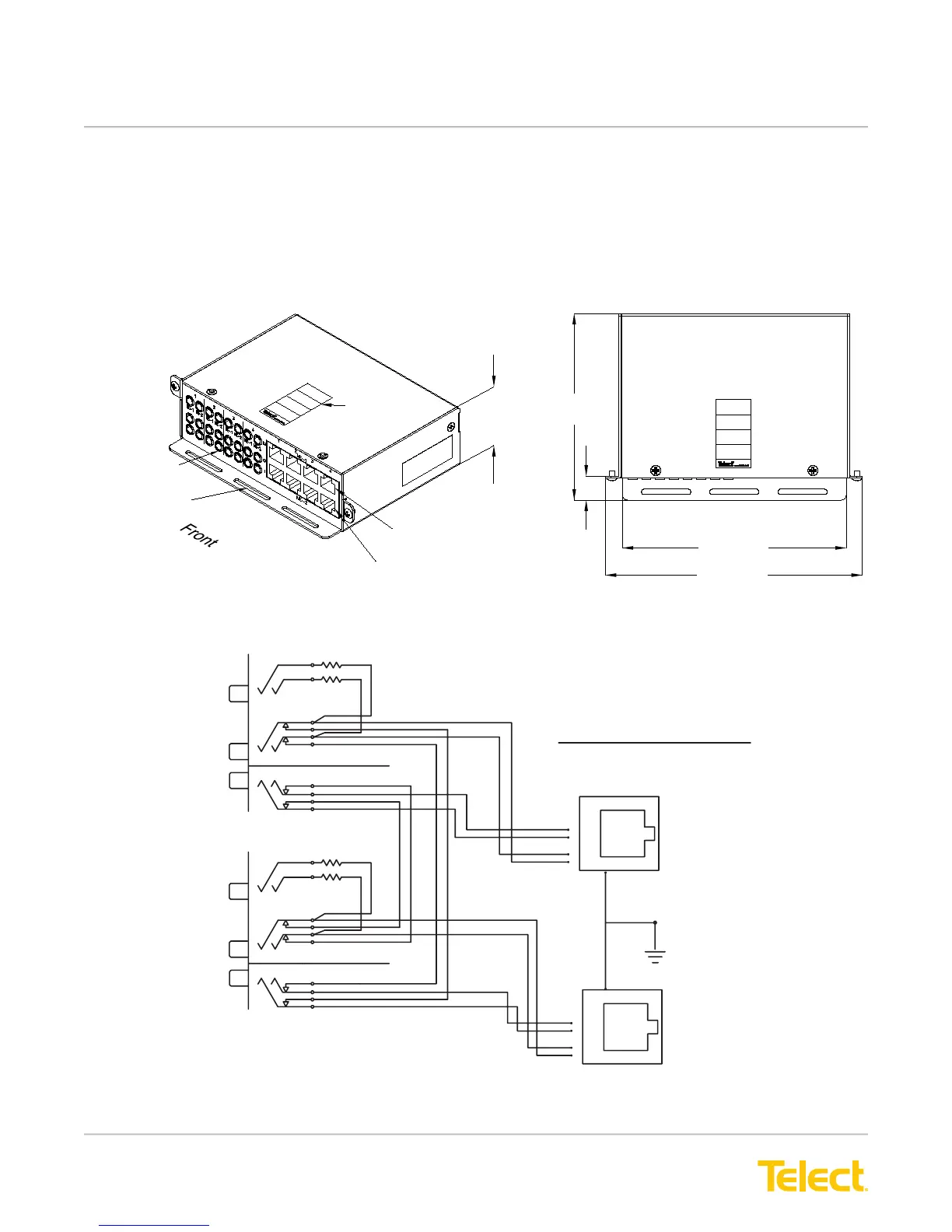

Figure 23 - Model ELF-3004-1800 Dimensions
REFERENCE SCHEMATIC
(TYPICAL FOR ALL CIRCUITS)
RESISTOR VALUE = 475 ohm
7
6
4
2
3
5
8
RJ SHIELD
GND.
1
CHASSIS
GND.
IN
OUT
MON
R1
R2
R
1
8
R
T
5
OUT
3
T
2
4
IN
6
7
NE-2
NE-1
MON
OUT
IN
R2
R1
R
T
R
T
IN
OUT
Figure 24 - Model ELF-3004-1800 Reference Schematic
