Telect ELF-1008-1100 - ELF RJ45 C to RJ45 C Patch Module (Model ELF-9716-1900); Figure 35 - Model ELF-9716-1900 Parts & Dimensions; Figure 36 - Model ELF-9716-1900 Schematic

© Telect, Inc., All Rights Reserved, 124317-10 A0
1.509.926.6000 :: telect.com
38
ELF System
Copper / Fiber :: ELF Family
5.1 ELF RJ45C to RJ45C Patch Module (Model ELF-9716-1900)
Tie-Down Bars
RJ45C to RJ45C Patch Module
5.50
(139.7)
5.25 (133.4)
1.63
(41.3)
0.55
(13.9)
Note: Dimensions are in in. (mm)
Top View
5.86 (148.9)
RJ45C Connectors
1.62
(41.3)
16-Termination

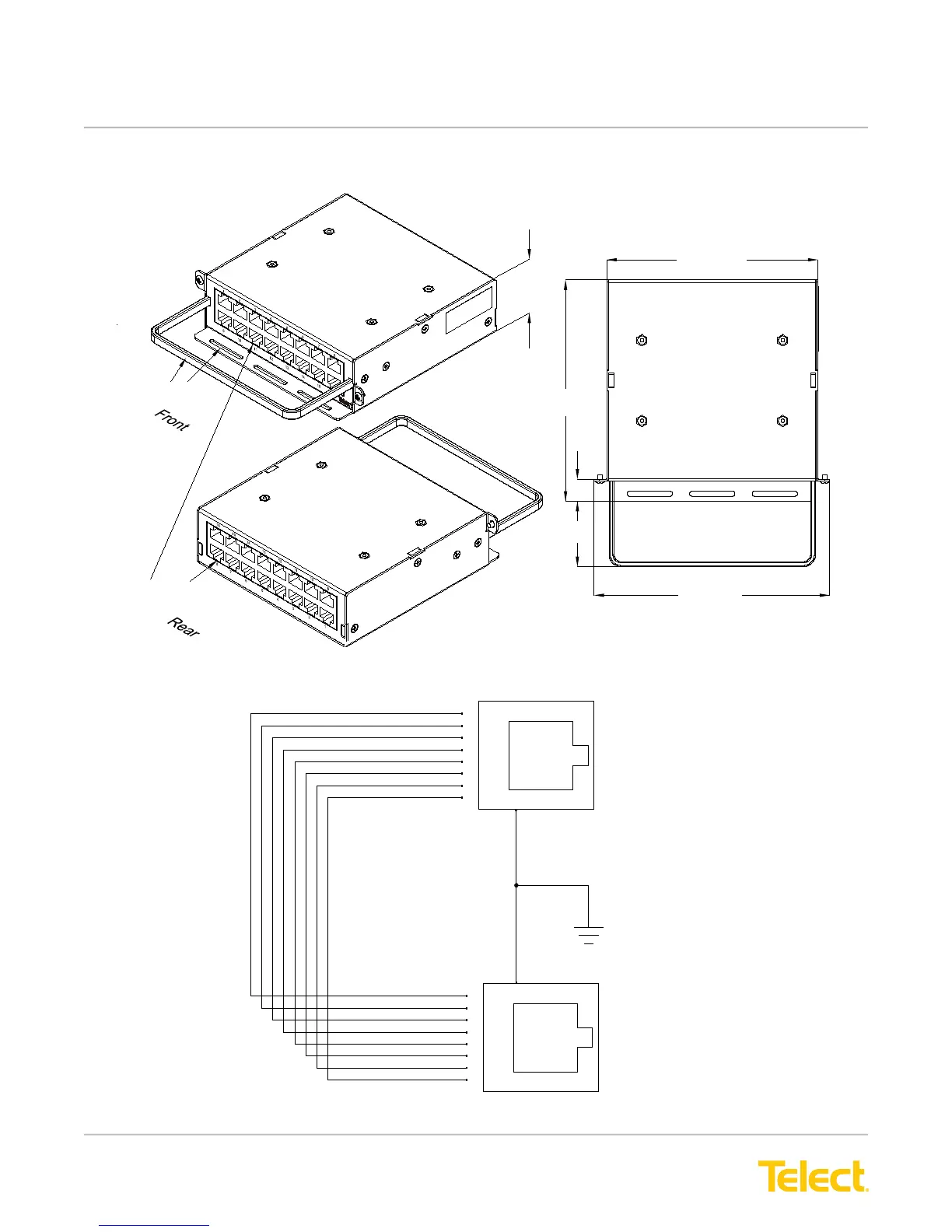

Figure 35 - Model ELF-9716-1900 Parts & Dimensions
7
6
4
2
3
5
8
RJ SHIELD
GND
1
CHASSIS
GND
1
8
5
3
2
4
6
7
REAR
FRONT
Figure 36 - Model ELF-9716-1900 Schematic
