780E Video Generator / Analyzer – Quick Start Guide Page 11

September 13, 2018

P/N 68-00231 - Rev. B1

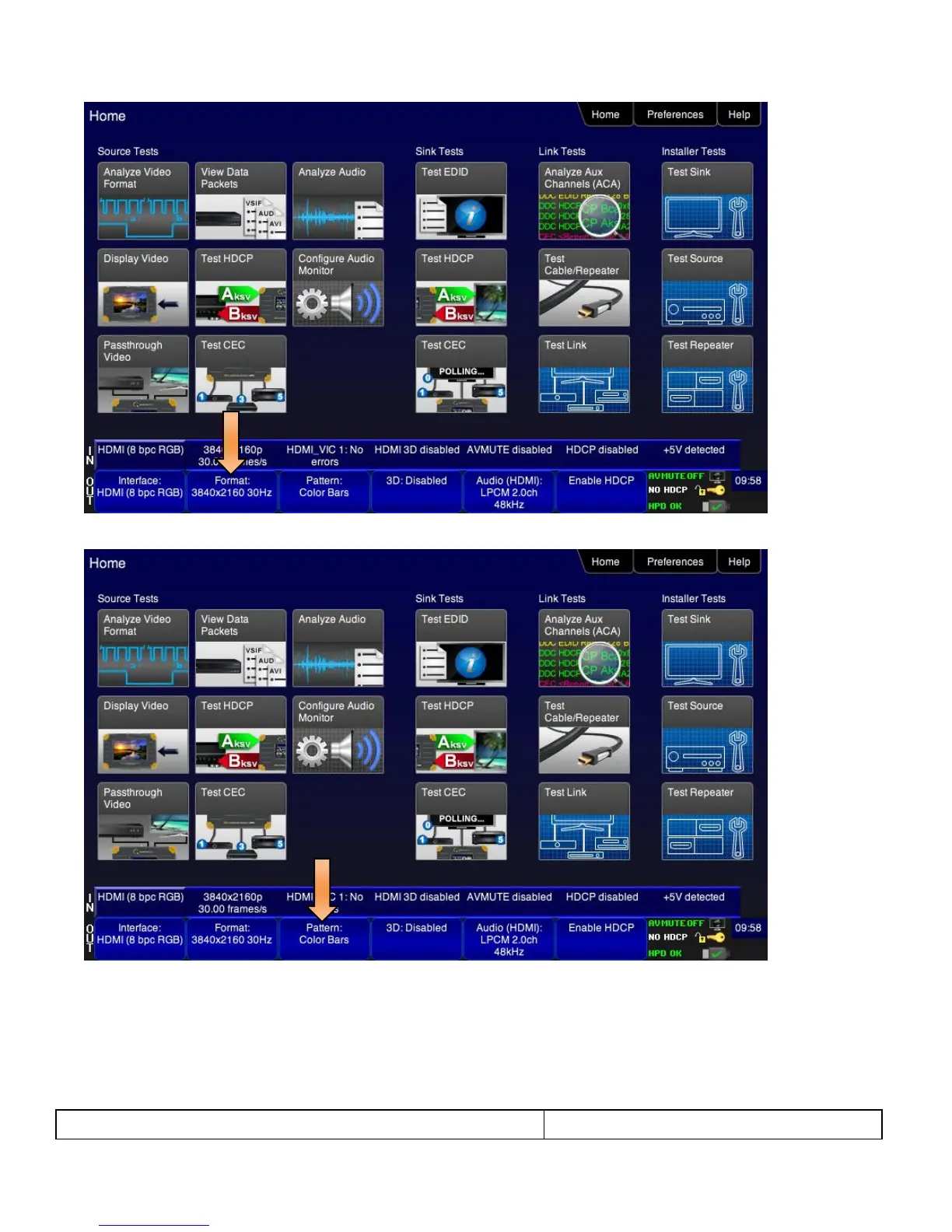

3. To select the video test pattern, touch select the Pattern button from the Home menu as shown below:

4. To enable and disable 3D and specify the 3D format, touch select the 3D button from the Home menu as shown

below:
