Portable Oxygen Monitor Operating Instructions
Teledyne Analytical Instruments 9
Note: Do not use the plastic flow diverter with the R17MED sensor when the sensor is
used for diffusion sampling (such as with oxygen tents, incubators, etc.). When
the sensor is used with a Tee Adapter, such as in a breathing system, the diver-
ter must be used as shown in Figure 2-3.

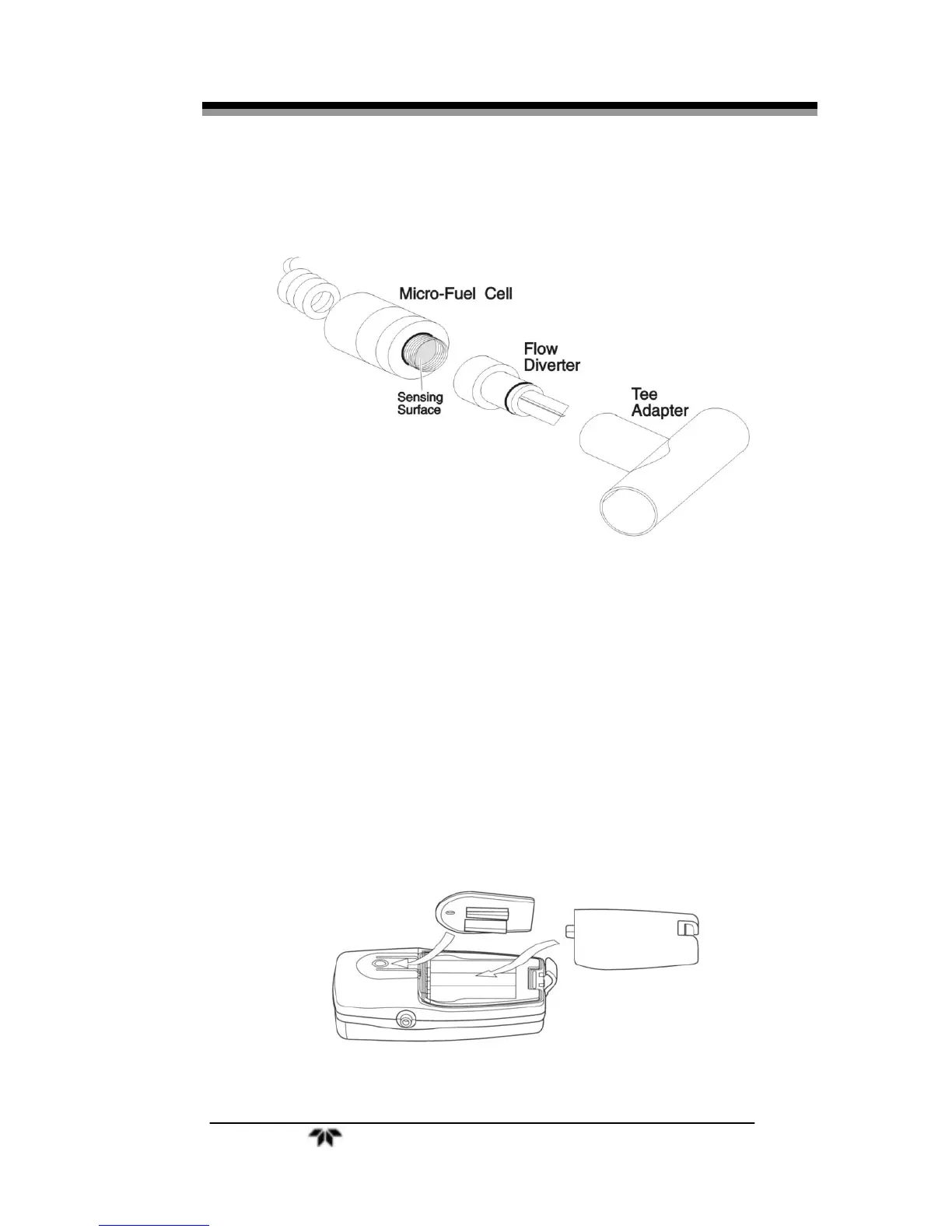

Figure 2-3: Mounting the Sensor in the Tee Adapter
2.1.2 Mounting
The MX300 can be mounted in several ways depending on the optional
equipment ordered at the time of purchase. See Section 1.3.
2.1.2.1 V-Mount Adapter Installation
The V-Mount Adapter consists of a matching plastic plate with integral V-
grooves that attach to the rear of the Monitor.
Figure 2-4: V-Mount Adapter Installation
