Conduit (external)

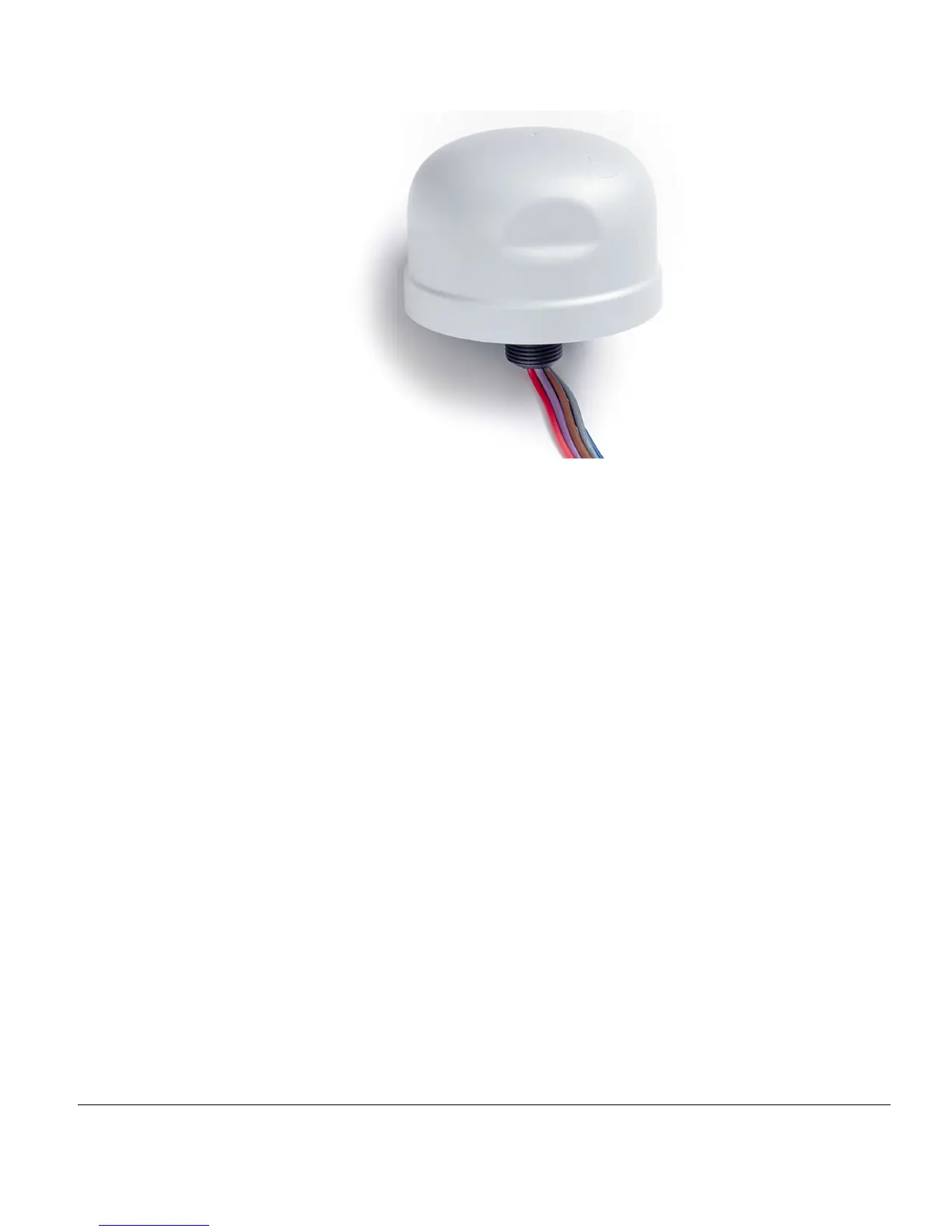

The conduit Telecell is affixed to the lamp via a 20mm diameter thread. The nut securing
the Telecell should be tightened to 3 Nm.
ALERT: Check the rubber sealing washer is intact and undamaged to prevent water getting in.
Telecells with built in dimming have 5 wires and those without have 3 wires.
The Telecell must be wired as per section 2.2.
1) Turn on the mains supply to the Telecell and observe the Power On / DIM / Off
test cycle as described in section 1.7.1. It will turn on for 50 seconds, then turn off.
If dimmable: on 25 seconds, dim 25 seconds, then turns off.
2) Record the necessary data as detailed under section 1.7. Data capture will be
dependent on available tools, for example: paper based or import via PDA.
3) Affix the Telecell labels described in section 1.7 as necessary.
