6.2.3 USB Interface

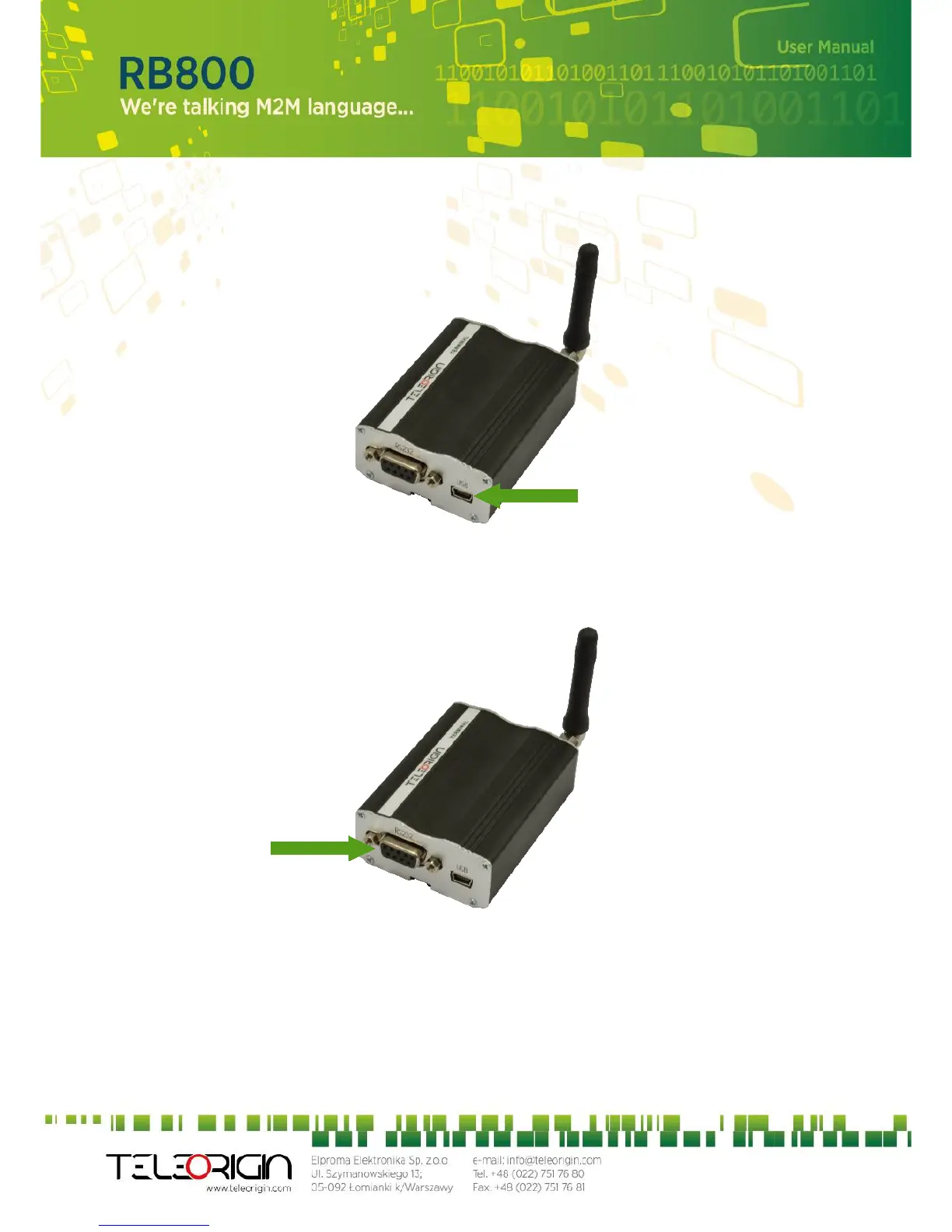

RB800 terminal (only UMTS variant) is equipped with USB interface (as shown below) –
miniUSB connector type.
6.2.4 RS-232 Interface (EIA574)
RB800 terminal is equipped with RS-232 interface (as shown below). DE9 DSUB
socket is connected via voltage level translator circuit to the GSM module.
