2.2.4 ECLIPSE 99

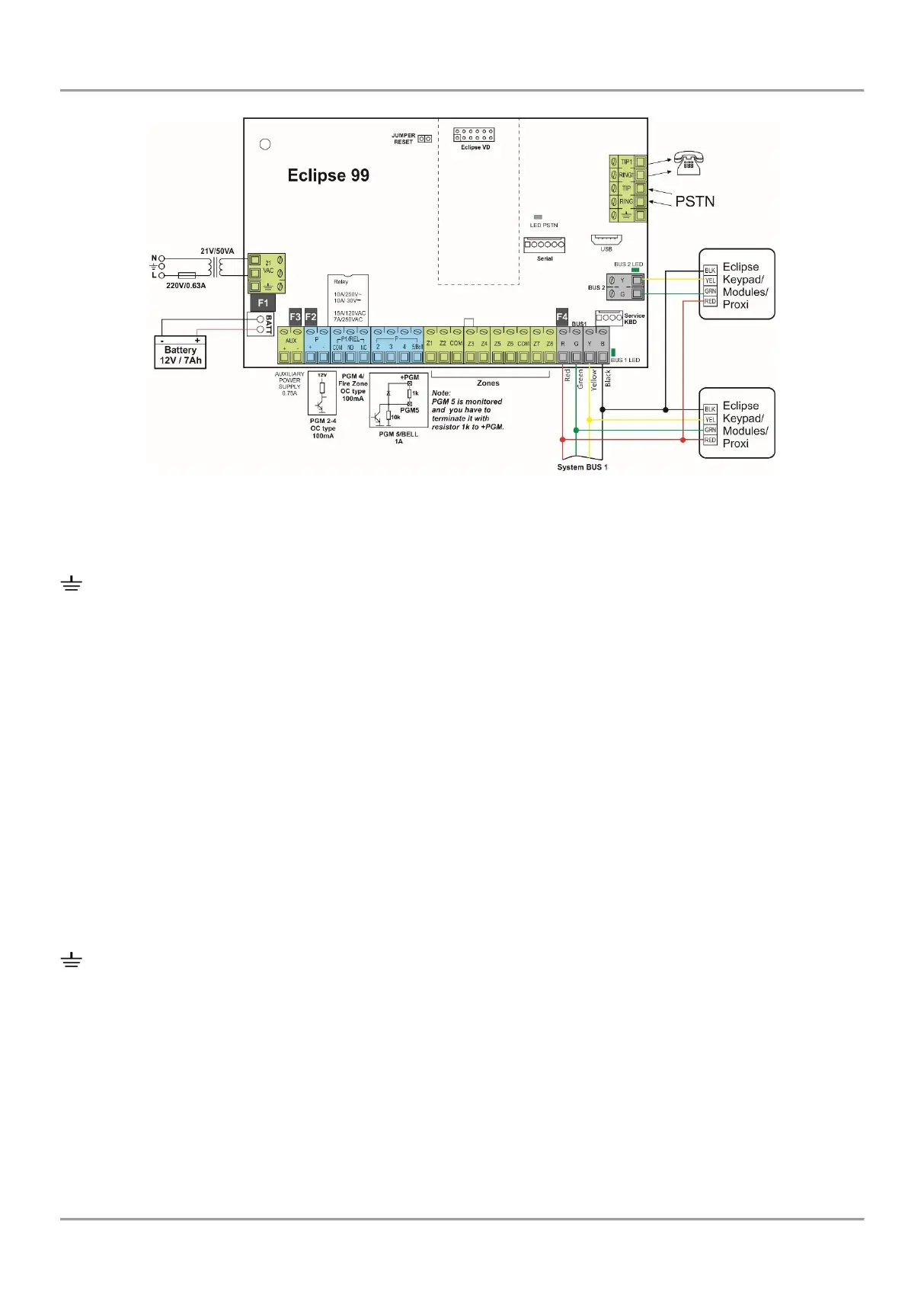

Figure 8. ECLIPSE 99 control panel
ECLIPSE 99 - Terminals and components:
21VAC – Power supply from a mains transformer 21V/50VA, fuse 0.63А
– Grounding
+/- AUX – Power supply for detectors with consumption up to 0.75А
+PGM – Power supply of auxiliary devices with consumption up to 0.75А
P1/REL (COM/NO/NC) – Relay output, 10A@250VAC, 10A@30VDC
PGM 2, 3 – Programmable outputs, 100mA, ОС type (open collector)
PGM 4 – Programmable output/Fire zone (programmed at Menu 3. Programmable outputs), 100mA, ОС type (open collector)
PGM 5/BELL – Monitored programmable output, high power up to 1А, ОС type (open collector), for connecting siren
Z1-Z8 – Zone inputs
COM – Common ground for the zones
R (Red), G (Green), Y (Yellow), B (Black) - System bus interface (System BUS 1) for connection of keyboards, proximity card
readers, expanders, etc.
Y (Yellow), G (Green) - System bus interface (System BUS 2) for connection of keyboards, proximity card readers,
expanders, etc. (Note: You can also use an external power supply to power the devices connected to BUS 2.)
Jumper RESET – Jumper for total hardware reset of the control panel
Serial – Interface for PC connection
Service KBD – Connecting a service keyboard – see item 6 (available for HW 1.2 and higher)
VOICE - Interface connector for mounting of Voice module ECLIPSE VD
BATT – Terminals for connecting the back-up battery
USB – Micro USB port for programming with ProsTE software (available for HW 1.4 and higher)
PSTN terminals:
TIP1, RING1 – Connect the telephone device
TIP, RING – Connect the PSTN line
– Grounding
Fuses, PTC type:
F1 – Fuse for the back-up battery: 2.5A
F2 – Fuse for PGM outputs: 0.75A
F3 – Fuse for AUX outputs: 0.75A
F4 – Fuse for the system bus: 0.5А
LED indication:
BUS 1 LED – LED Indication for the status of the System BUS 1*
BUS 2 LED – LED Indication for the status of the System BUS 2*
PSTN LED – LED Indication for the status of the built-in digital communicator.
* The indication is the same as described for ECLIPSE 32 control panel – refer to item 2.2.3.
