Eclipse 8/16/32/99 Series - Installation Manual
14

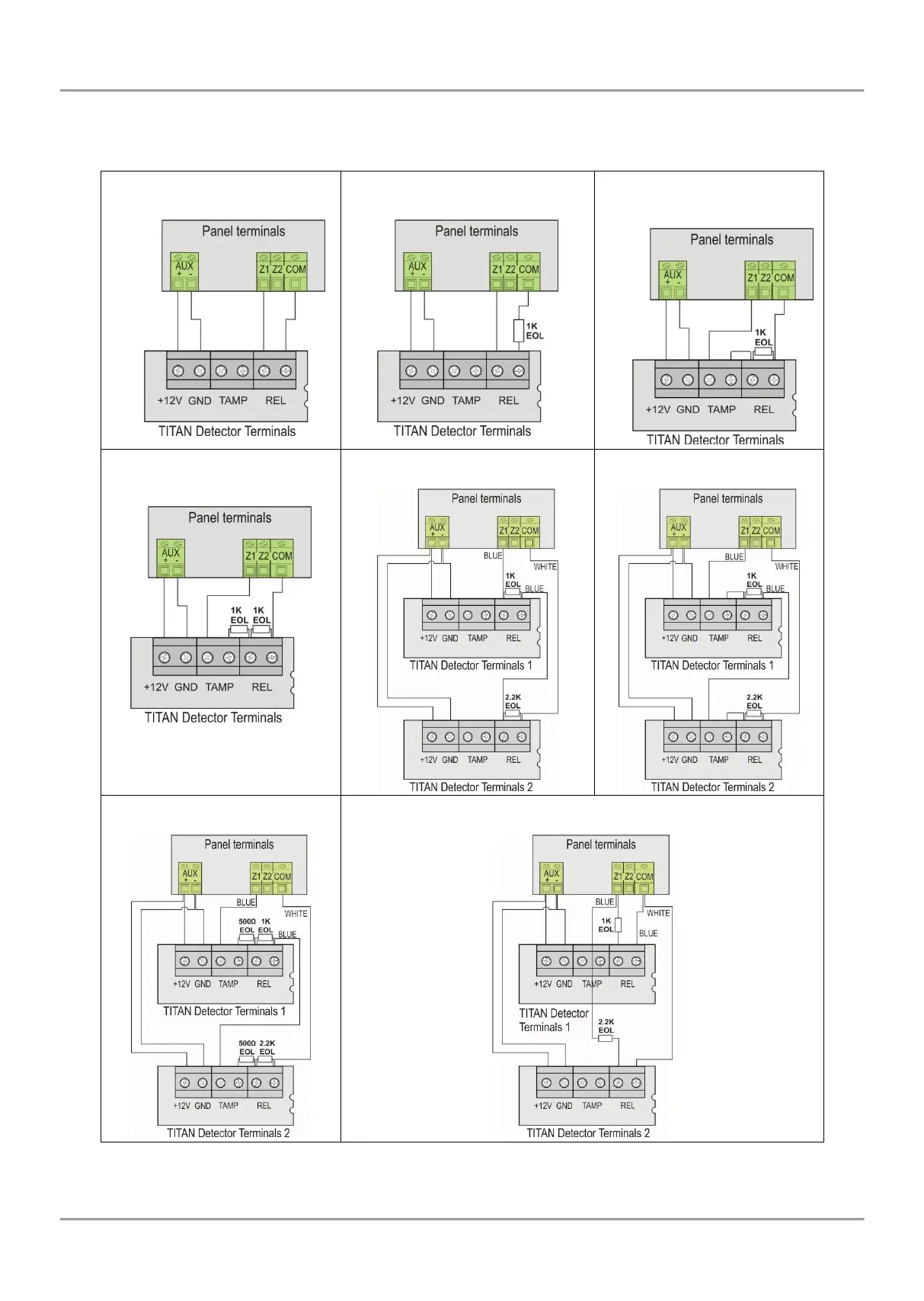

Examples for realizing different connection styles using TITAN series detectors.
NOTE: The connection style 3. NO with EOL is applicable only for detectors with normal open (NO) type
terminals.
1. NC without EOL
2. NC with EOL
4. NC without EOL, TAMPER
recognition
5. NC with EOL, TAMPER
and short-circuit recognition
6. NC without EOL
7. NC without EOL, TAMPER
recognition
8. NC with EOL,
TAMPER recognition
9. NC without EOL, no TAMPER (parallel connection)
Figure 10. Examples for detector connection
