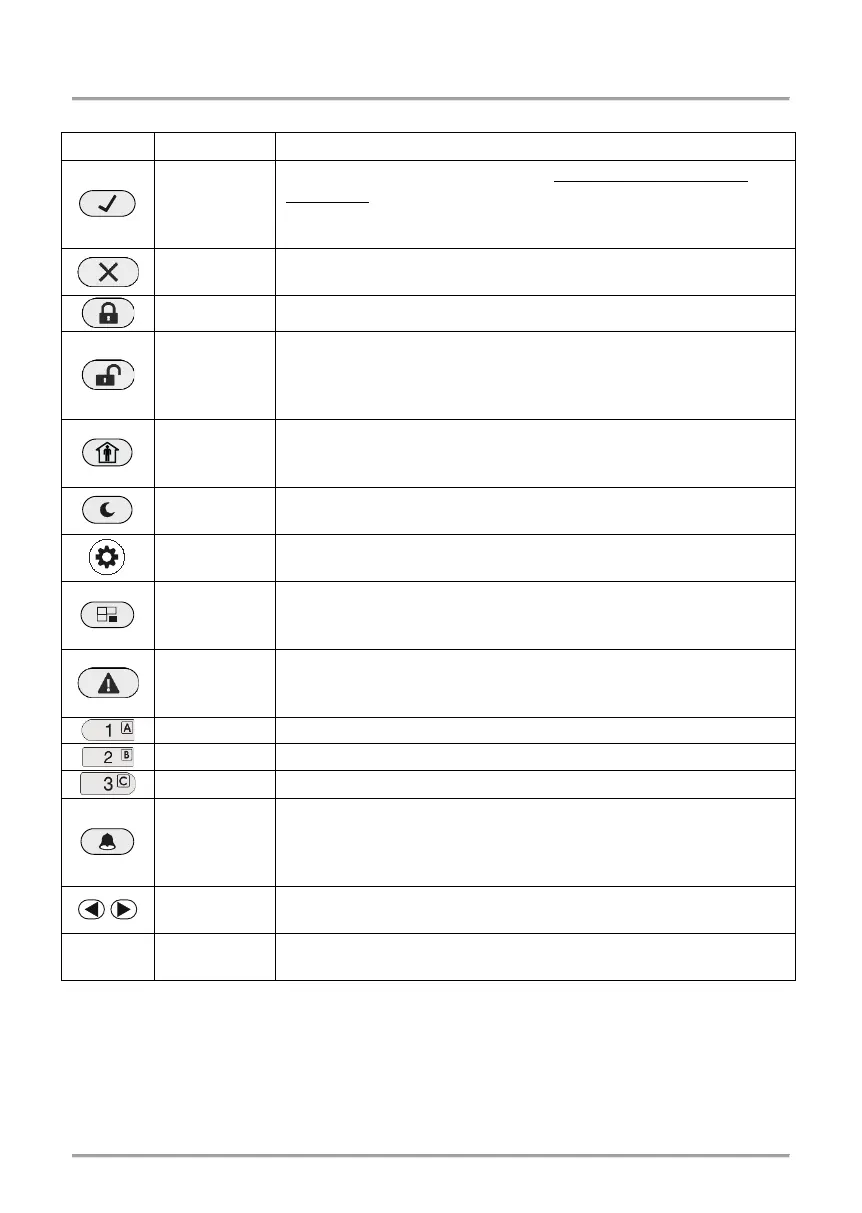

2.3 Buttons Functionality
ENTER
Confirmation of the entered data. For LED 8 and LED 16A
keyboards: Use the button to review the memory log file, the
system troubles and the bypassed zones – the respective
system LED is blinking during the review.
CANCEL
Canceling the entered parameters; exit from a programming
mode.
FULL ARM Quick button for Full Arming Mode.
DISARM
Disarming the system. The button has a special function in
text entering mode – deletes the current symbol and moves
the cursor on one position to the left (like Backspace button on
STAY ARM
Quick button for Stay Arming Mode. The button has a special
function in text entering mode – shifting between small and
Quick button for Sleep Arming Mode.
PRG Entry in Manager and User programming modes.
BYPASS*
Bypassing zones. The button lights on permanently if there
are bypassed zones in the system. The button is blinking
during the bypassed zones review.
TROUBLE*
Reviewing the system troubles. The button lights on
permanently if there are system problems. The button is
blinking during the system troubles review.
LED 16A: The button performs arming/disarming of AREA А.
LED 16A: The button performs arming/disarming of AREA В.
LED 16A: The button performs arming/disarming of AREA С.
MEMORY*
Reviewing the memory events log file. The button lights on
permanently if there are memory events. The button is blinking
during the memory events review. The button has a special
function in text entering mode – entering of special symbols.
Arrows for moving the cursor on the left and on the right in
programming mode.
0 - 9
Digital buttons for entering parameters, codes, etc.
* Note: The functionality of BYPASS, TROUBLE and MEMORY buttons for LED8 and
LED16A keyboards is accessible through the manager and user menus only with the
same LED indication on the display.
