iRIS4 - Addressable Fire Alarm Panel – Installation Manual
10
2.2. Wall Mounting

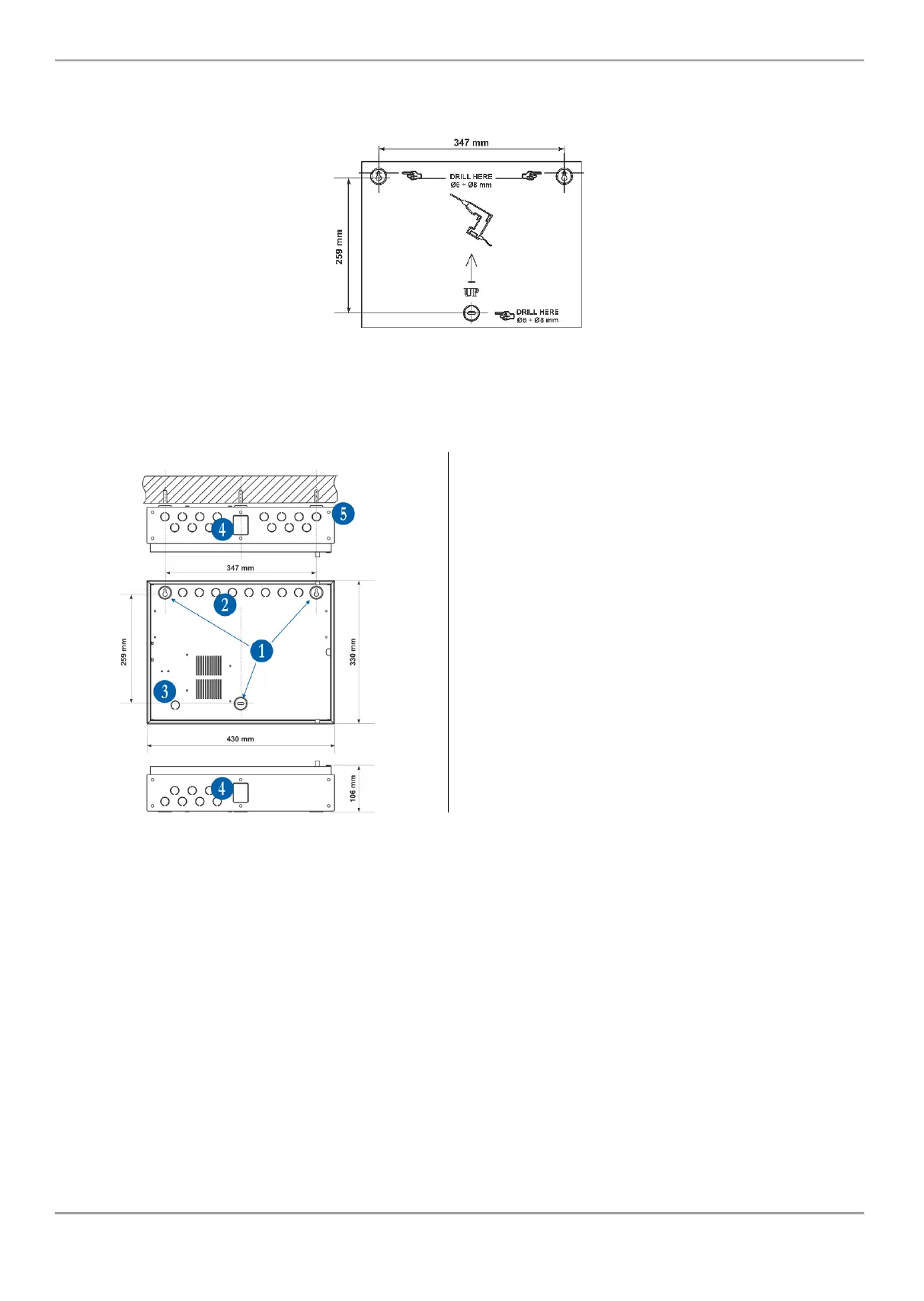

• For wall mounting, use the drilling paper template to mark the mounting holes – Figure 4.
• For mounting of iRIS4, drill holes Ø6 ÷ Ø8mm.
Figure 4
• Fix the box bottom with the supplied anchors and mounting screws.
• The elements of the metal box bottom are described on Figure 5.
1 - Main mounting holes
2 - Holes for cable running
3 - Hole for main power supply cable running, protected
with a metal cap element
4 - Additional holes for cable running, protected with a
metal cap element
5 - Ø6mm openings protected with plastic caps (6 on
upside and 6 on downside on the box bottom) for
building of modular structure with IRIS PS72 (external
power supply) and IRIS termal printer
