iRIS4 - Addressable Fire Alarm Panel – Installation Manual
28

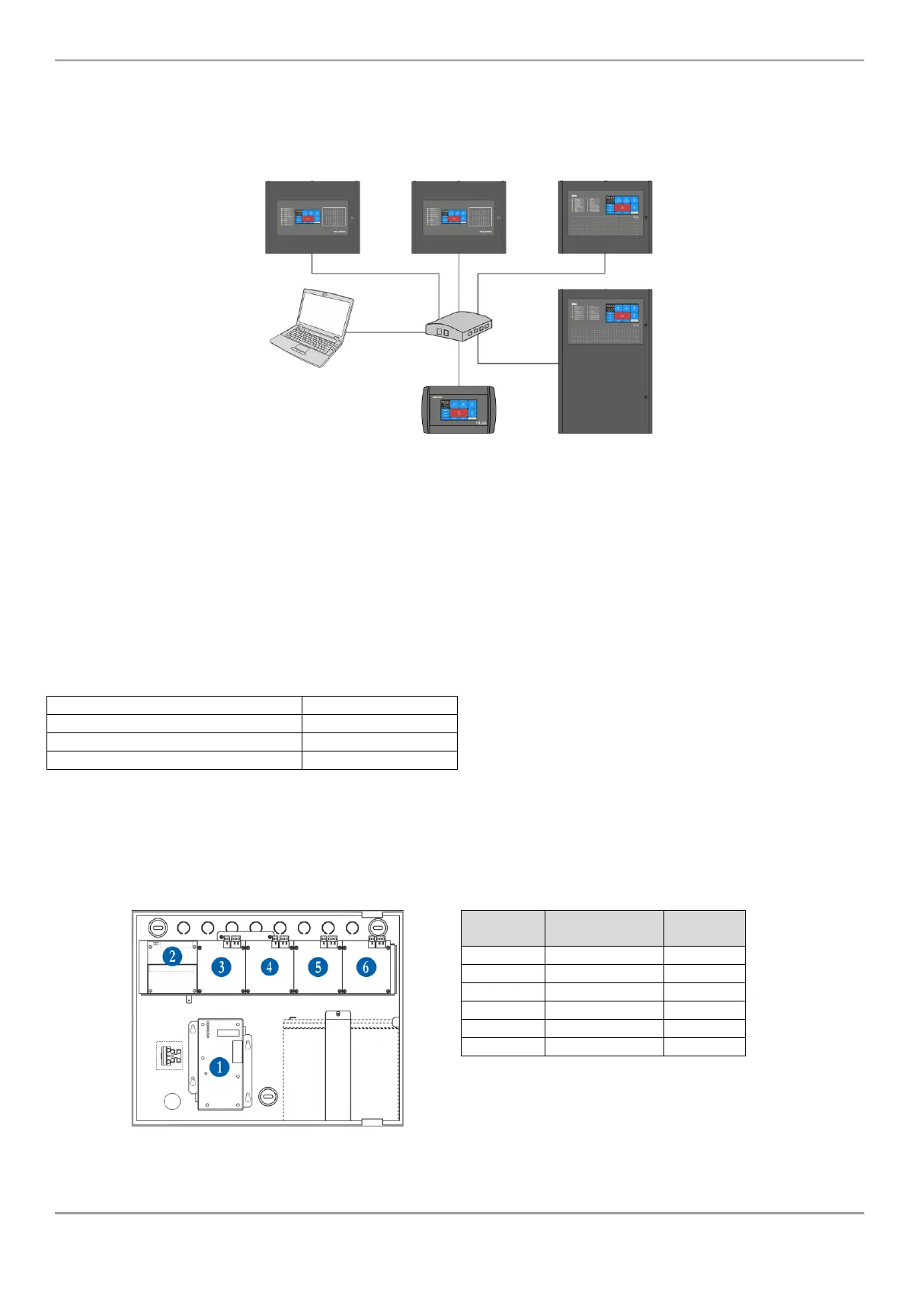

4.6. LAN connection
The realization of LAN network is possible only for Repeaters TFT model and iRIS4 and iRIS8 series addressable fire
alarm panels (up to 64). The LAN connection can be direct panel-to-panel or by means of a HUB via TCP/IP protocol.
To operate in LAN network with other iRIS4, iRIS8 and Repeater TFT panels the installer must set for all panels “LAN”
type of the communication protocol.
Figure 33
5. SUPPLEMENTARY INFORMATION
5.1. Periphery Devices
All “functional modules” connected to the control panel configuration are defined as Periphery Devices, and have
special programming and settings.
Attention: The Interface module and Main control module PCB are not periphery devices!
Up to 6 periphery devices can be added to the system configuration of iRIS4 panel.
Periphery Device
iRIS4
PSU – Main power supply
1
OUT – Outputs module
1
LOOP – Loop controller (expander)
4
The periphery devices have factory set address numbers that cannot be changed. The loop controllers always take
addresses from 3 to 6.
The following drawing of the hardware configuration of iRIS4 panel models and table represent the fixed factory
addresses of the periphery devices, which must be assumed during the initial power up and programming of the whole
system.
System
Name
Periphery
Device
Factory
Address
PSU
Power Supply
1
OUT
Output module
2
LOOP
LOOP 1
3
LOOP
LOOP 2
4
LOOP
LOOP 3
5
LOOP
LOOP 4
6
The free addresses for periphery devices are
presented as EMPTY.
Figure 34
