iRIS4 - Addressable Fire Alarm Panel – Installation Manual
27

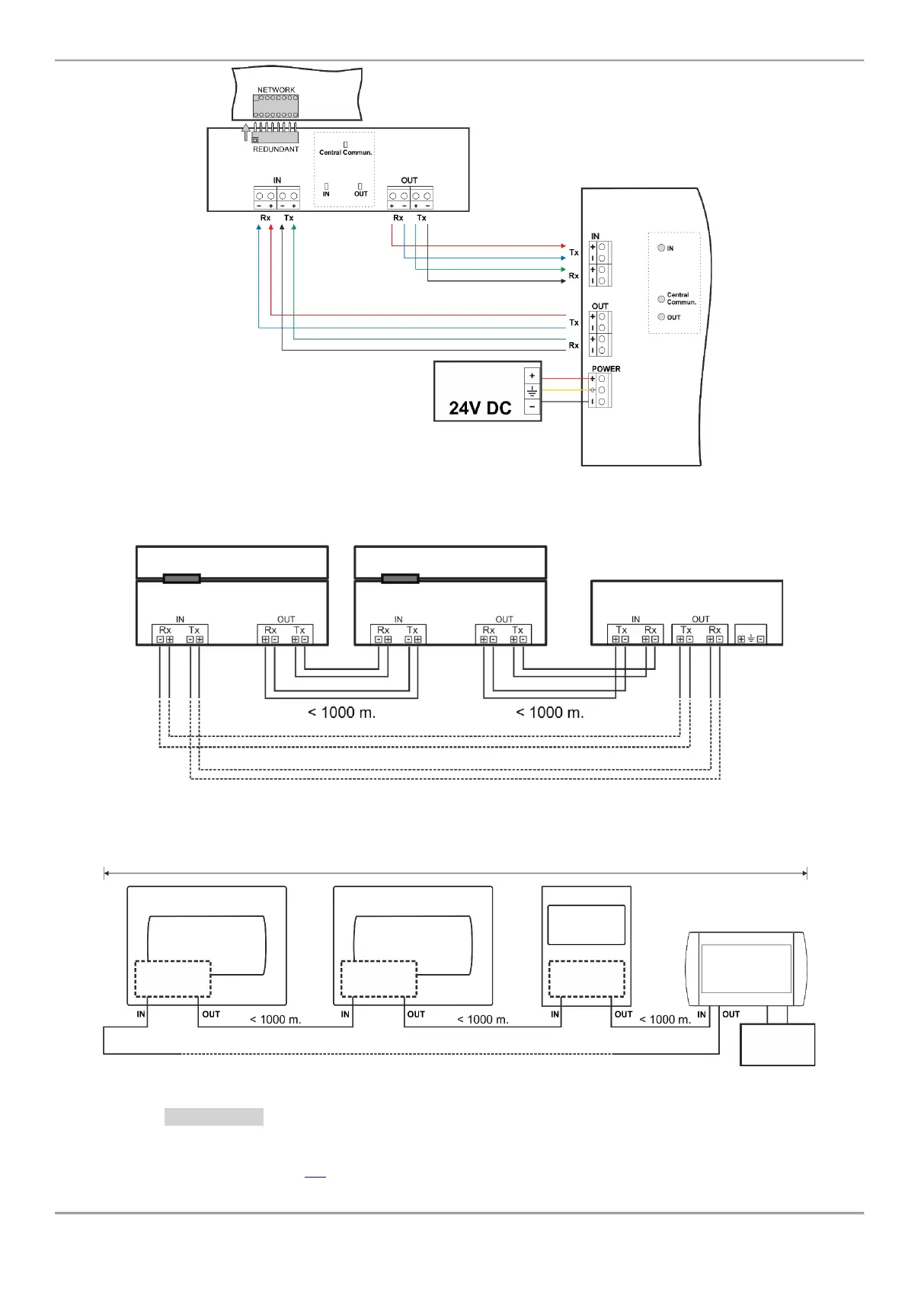

Figure 30
The maximum cable length between two network modules and/ or repeater panel is 1000m.
Figure 31
Up to 64 panels can be connected in a common redundant network.
Figure 32
LAN Interface
Model IRIS/SIMPO Repeater TFT supports operation also via LAN network. Note: The LAN connector is accessible
after removing the left and right side covers and the front panel of the enclosure box. The general connection diagram
for LAN network is presented in item 4.6.
