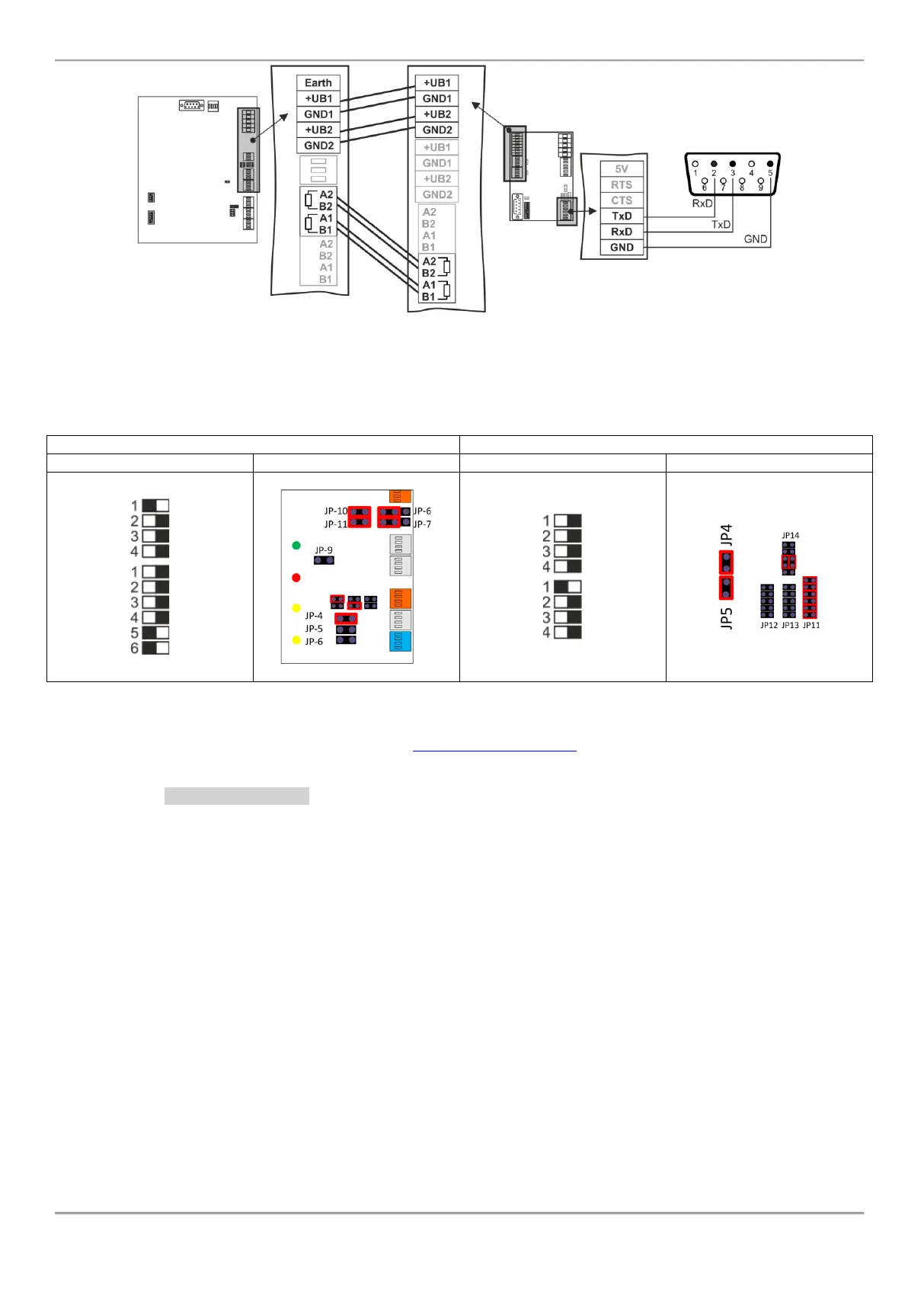

Figure 26
For the correct operation of the system configuration with iRIS4 panel, is obligatory also to set the DIP switches and
jumpers of the FAT indication panel and SM3 redundancy module in the following way:
Note: The detailed description and documentation for FAT-KÜ control panel, SM3-RM module and other suitable
products is available at the site of the manufacturer - https://www.schraner.de
General Description
The performed above configuration of iRIS4 and FAT/FBF control panel is realized at the protected site. In case of a fire
alarm situation the dialer sends an alarm signal to the Fire Brigade Unit. The Fire Brigade Unit receives the signal and
confirms it (via a special switch installed at Fire Brigade Site, according German standards*). The iRIS4 panel receives
the signal from the Fire Brigade and unlocks the adapter box with key safe. (The key safe keeps all the keys for the
rooms in the protected site.) The Fire Brigade Officer unlocks the key safe (with own key) and takes all the keys for the
rooms. When the fire is extinguished, the Fire Brigade Officer returns all the keys back to the key safe and locks it. Now
the iRIS4 panel must be reset to normal operation mode. After resetting, the adapter of the key safe is locked, the Dialer
is returned to stand-by mode, and all of the messages for alarms and warnings are cleared.
* For detailed information about the system requirements according the German standards and the operation of iRIS4
panel connected to FAT/FBF (Fire Brigade Indication and Operation Panel) you can ask your distributor.
