A vant PC Programming Interface
31
ENGLISH

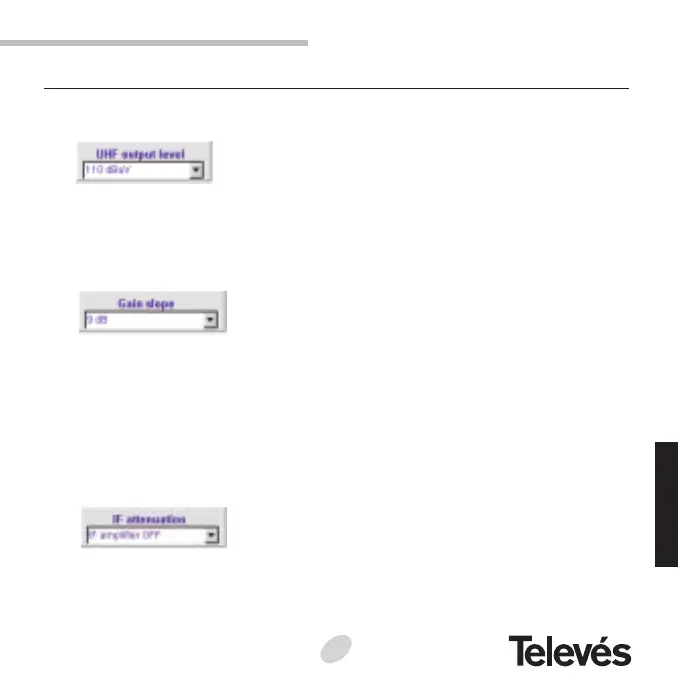

2.1.2.- Options
UHF output level
Set the UHF output level and put the VHF and FM levels to 5 dB and 8 dB
below this respectively. The margin allowed is from 115 to 100 dBµV.
Gain slope
This equalises the UHF channels within a margin of 0 to 9 dB. The equalisation
is carried out between the maximum and minimum channels programmed in the
single-channels. For example, if we program channels 25, 31, 53 and 62 with a
UHF output level of 110 and an equalised slope of 7, the highest channel (62) will
have a level of 110 dBµV and the lowest channel (25) will have 103 dBµV.
IF Attenuation
This sets the IF amplifier’s attenuation between 0 and 15 dB.
