Televes SmartKom 531981 User Manual

SMARTKOM
12
10,11,12. Channels found in input: Visualization (selection) of channels on dierent inputs.
In the channel visualization, selected channels (in the gure, input 1) are highlighted in the same color as the input. Those
highlighted in gray correspond to channels that are selected in other inputs, while the rest of the channels (in white) are not
selected on any input.
13. Output level adjusting (dBmV): Output level is adjusted starting (maximum 25 dBmV).
Note: Maximum output level is 25 dBmV regardless of the number of channels that are amplied.
14, 15, 16. SmartKom inputs: Reference to the SmartKom connections and controls section.

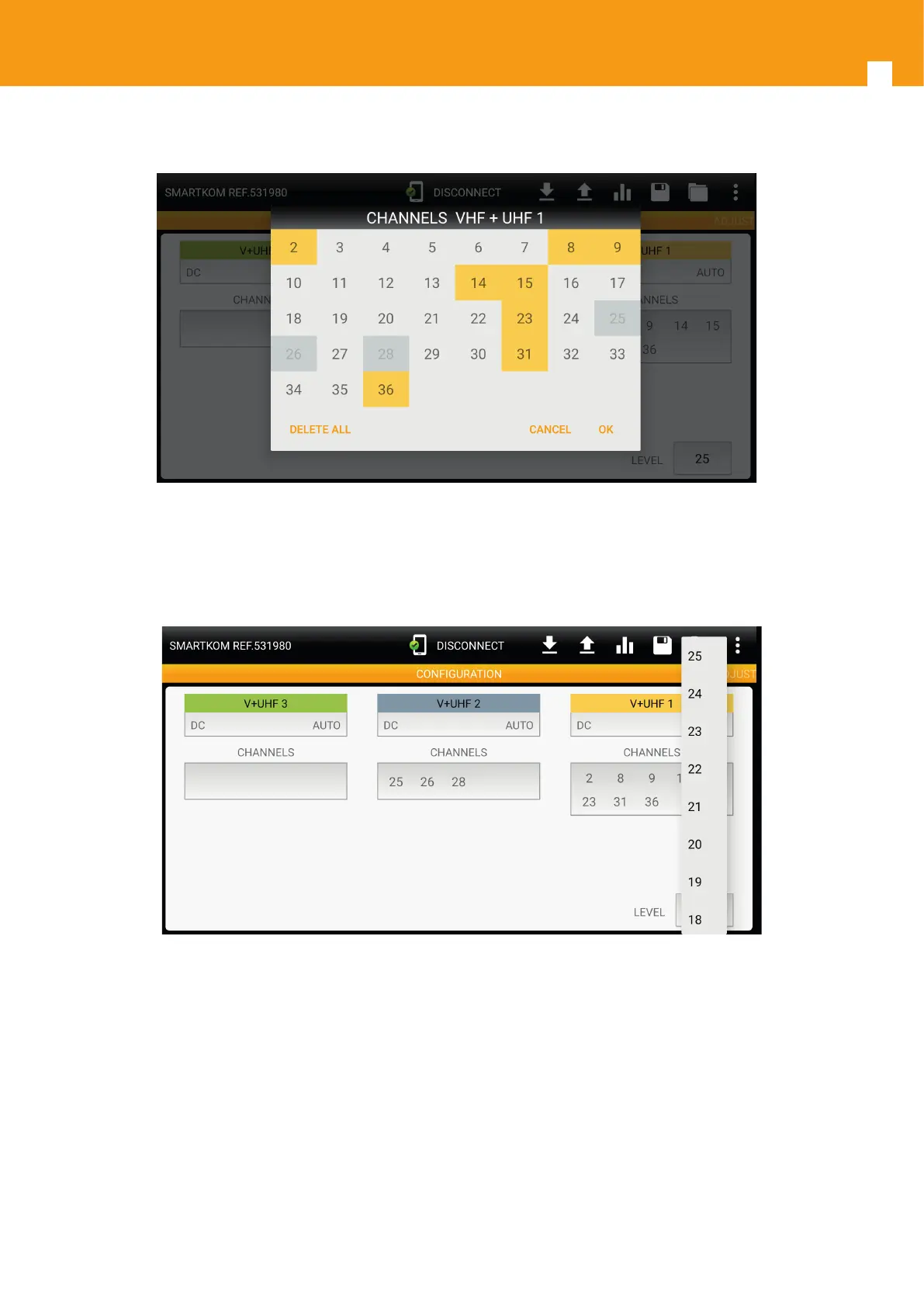

Figure 13: Channels selection screen entry 1.
Figure 14: Level adjust screen
