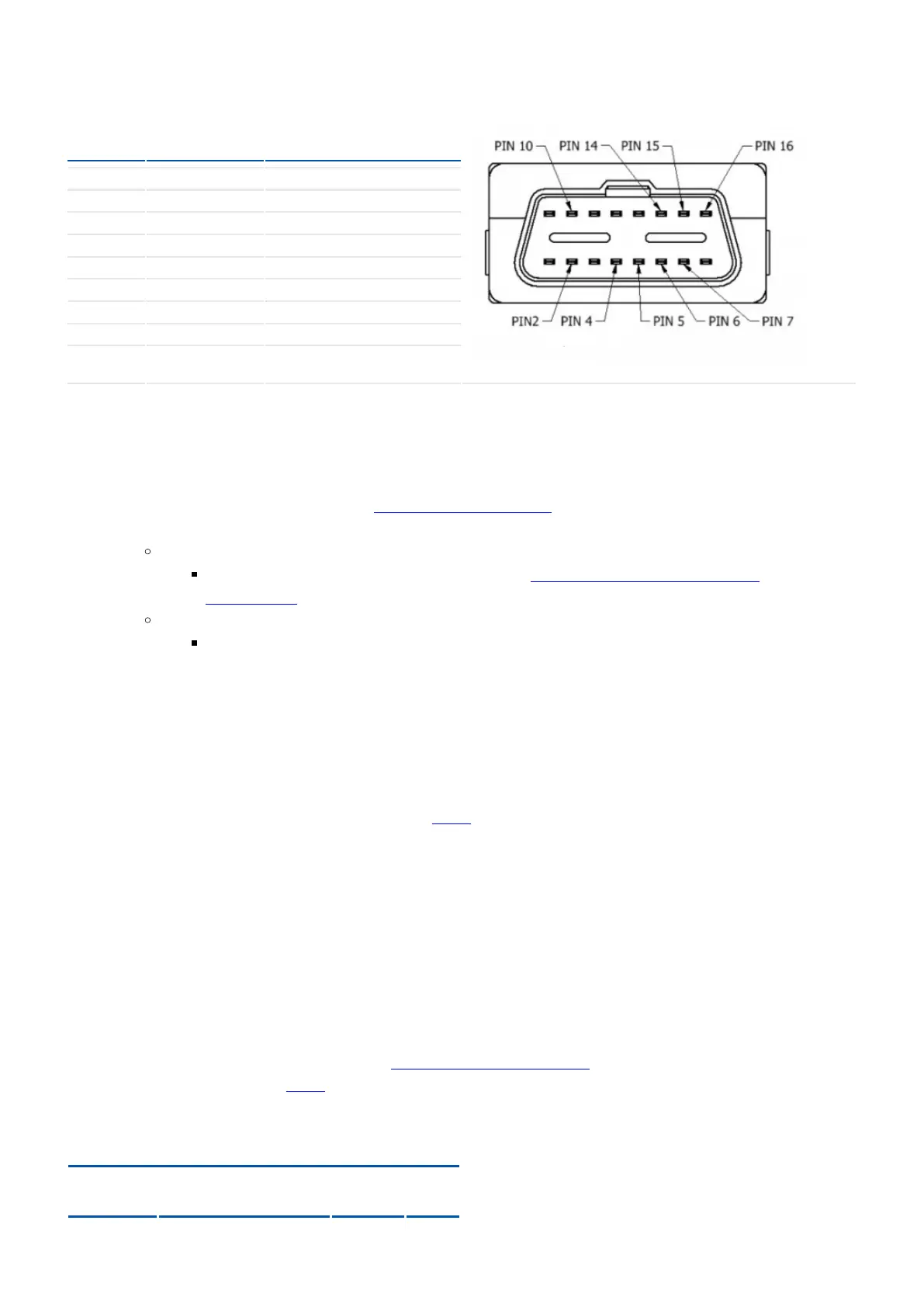

Pinout
PIN
NUMBER
PIN NAME DESCRIPTION
2
PWM_BUS+/VPW
4
GND (-)
Ground.
5
GND (-)
Ground.
6
CAN_H
CAN high.
7
K-Line
10
PWM_BUS-
14
CAN_L
CAN low.
15
L-Line
16
VCC (10-30)V DC
(+)
Power supply (+10..+30 V DC).
PC Connection (Windows)
Power-up FMM00A with DC voltage 10-30 V power supply using supplied power cable.1.
LED’s should start blinking, see “FMM00A LED status”.
Connect device to computer using Micro-USB cable or Bluetooth connection:2.
Using Micro-USB cable
You will need to install USB drivers, see "How to install USB drivers
(Windows)"
Using Bluetooth
FMM00A Bluetooth is enabled by default. Turn on Bluetooth on your PC, then
select Add Bluetooth or other device > Bluetooth. Choose your device named –
“FMM00A_last_7_imei_digits”, without LE in the end. Enter default password
5555, press Connect and then select Done.
You are now ready to use the device on your computer.3.
How to install USB drivers (Windows)
Please download COM port drivers from here.1.
Extract and run TeltonikaCOMDriver.exe.2.
Click Next in driver installation window.3.
In the following window click Install button.4.
Setup will continue installing the driver and eventually the confirmation window will appear.5.
Click Finish to complete the setup.
Configuration (Windows)
At first FMM00A device will have default factory settings set. These settings should be changed
according to the user's needs.
Main configuration can be performed via Teltonika Configurator software. Get the latest FMM00A
Configurator version from here. Configurator operates on Microsoft Windows OS and uses
prerequisite MS .NET Framework. Make sure you have the correct version installed.
MS .NET requirements
Operatin
g system
MS .NET
Framework version
Version Link
