Temco DV1000/1200/1400MBN Series
76658
Fireplace Dimensions
Ref. DV1000 DV1200 DV1400
A34¹⁄₄” (870mm) 35¹³⁄₁₆” (190mm) 41³⁄₄” (1061mm)
B28³⁄₈” (721mm) 33” (838mm) 33” (838mm0
C31¹⁄₈” (791mm) 32⁹⁄₁₆” (827mm) 38³⁄₄” (984mm)
D29⁷⁄₈” (759mm) 34¹⁄₂” (876mm) 34¹⁄₂” (876mm)
E16³⁄₄” (426mm) 21³⁄₈” (543mm) 21³⁄₈” (543mm0
F5³⁄₄” (146mm) 6¹⁄₄” (159mm) 6¹⁄₄” (159mm)
G27¹⁄₂” (699mm) 32” (813mm) 32” (813mm)
H32³⁄₄” (832mm) 34¹⁄₄” (870mm) 40¹⁄₄” (1022mm)
I13¹⁄₈” (333mm) 14¹⁄₄” (362mm) 14¹⁄₄” (362mm)
J13³⁄₈” (340mm) 13³⁄₈” (340mm) 13³⁄₈” (340mm)
K1⁵⁄₈” (41mm) 1⁵⁄₈” (41mm) 1⁵⁄₈” (41mm)
L5¹⁄₈” (130mm) 5⁵⁄₈” (143mm) 5⁵⁄₈” (143mm)
M3³⁄₄” (95mm) 4¹⁄₂” (114mm) 4¹⁄₂” (114mm)
N3³⁄₄” (95mm) 4¹⁄₂” (114mm) 4¹⁄₂” (114mm)
O3”(76mm) 3” (76mm) 3” (76mm)
Framing Dimensions
P63⁵⁄₃₂” (1604mm) 64²⁹⁄₃₂” (1633mm) 71³⁄₁₆” (1808mm)
Q44¹¹⁄₁₆” (1135mm) 45⁷⁄₈” (1165mm) 50⁵⁄₁₆” (1295mm)
R30¹⁄₈” (765mm) 34³⁄₄” (883mm) 34³⁄₄” (883mm)
S34¹⁄₂” (876mm) 36” (914mm) 42” (1067mm)
T Refer to Figure 2 or 3 for Rough Opening Depth

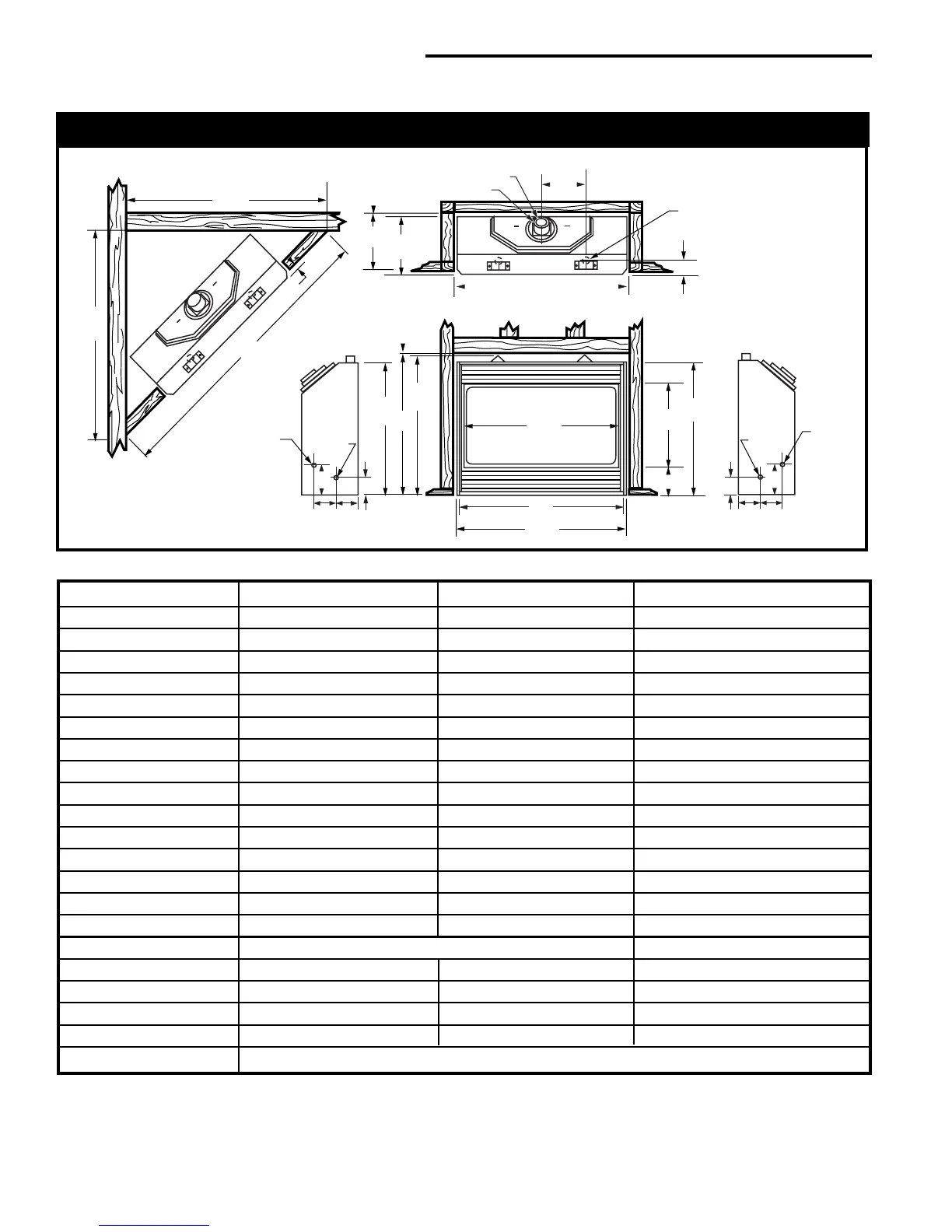

Fig. 1 Fireplace specifications and framing dimensions.
S - Rough Opening Width
Rough
Opening
Height
Rough
Opening
Depth
A
C
L
4" (102mm) Dia.
7" (178mm) Dia.
1/2" (13mm)
Q
Q
P
T
I
J
R
B
K
L
M
N
C
H
E
F
G
K
L
M
N
O
D
Gas Line
Access
J Box
Access
Gas
Line
Access
J Box
Access
Bottom Gas Line
Access
NOTE: Flex pipe diameters are
4” for inner pipe and 7” for outer
pipe.
