Temco TF36 - Parts Identification

5
TF/TL Series Woodburning Fireplaces
20007461
WF554
BR/BC
Combo of IWF261 AND IWF265
11/10/97
Chase Installation
Insulation methods shown are optional
for cold climate, not a requirement for
unit operation.
FP554

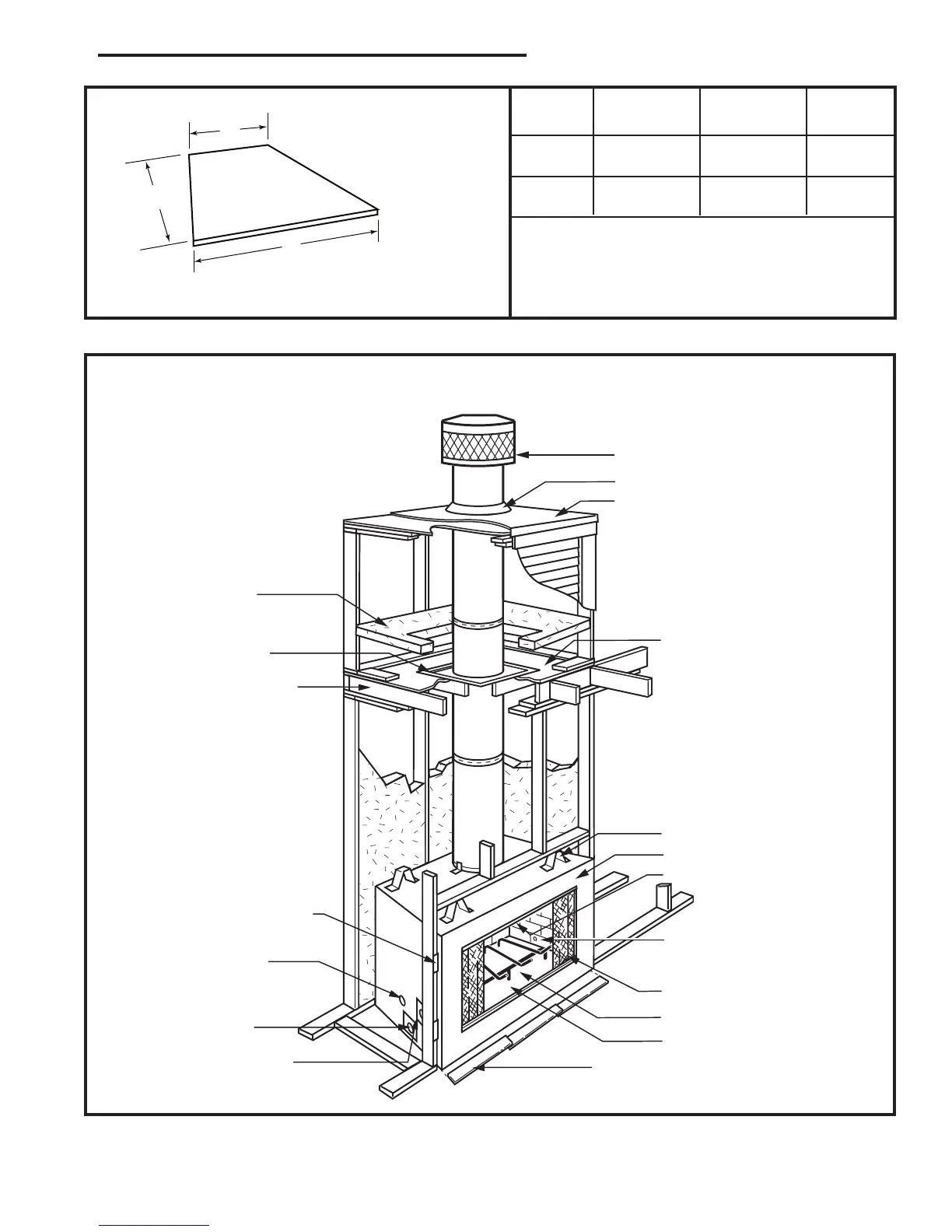

Fig. 5 Fireplace and chase parts identification.
Termination Cap
Storm Collar
Pan Flashing
Draftstop
Standoff
Surround
Damper Control
Gas Line Knockout
(both sides)
Screen
Grate
Firebox
Metal Safety Strips
(1,2 or 3 pieces)
Outside Air Cover Plate
Electrical Access
Gas Line Access
(both sides)
Nailing Flange
Ceiling Level
Firestop
Batt Insulation
(cut our around firestop)
A
B
C
FP1531
hearth dimensions
9/04 djt
Front Width Back Width Depth
A B C
TF/TL36 33
¹⁄₄" 19⁵⁄₈" 15¹⁄₄"
(845 mm) (499 mm) (387 mm)
TF/TL42 39
¹⁄₄" 25⁵⁄₈" 15¹⁄₄"
(997 mm) (651 mm) (387 mm)
FP1531
Fig. 4a Hearth dimensions.
