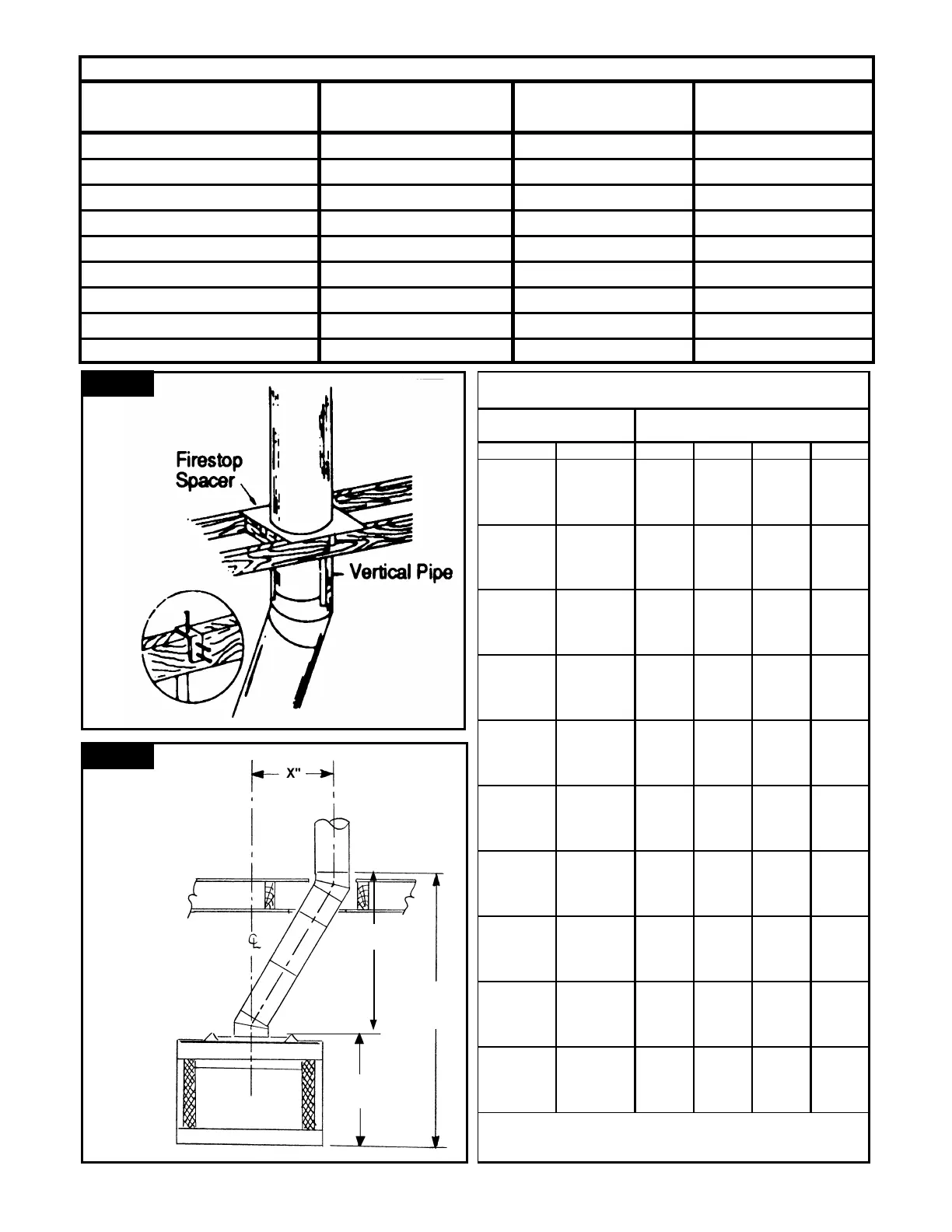

Figure 17
Figure 18
“Y”
TOTAL
RISE
39”
10
OFFSET “X” OFFSET “Y”
COMPONENT ONLY ACTUAL VERTICAL GAIN (CHIMNEY AT 30 DEG,) (CHIMNEY AT 30 DEG.)
TLC3922 39” — —
TFC3922 39” — —
8203D ROUND CAP 6” — —
8232E ELBOW (30 DEGREE) — 3-7/8” 14-5/8”
8212D (12” PIPE SECTION) 10” 5” 8-5/8”
8218D (18” PIPE SECTION) 16” 8” 13-7/8”
8236E (36” PIPE SECTION) 34” 17” 29-3/8”
8248E (48” PIPE SECTION) 46” 23” 39-7/8”
8204S FLUE SUPPORT 3-3/4” 1-7/8” 3-1/4”
LINEAL, VERTICAL & HORIZONTAL GAIN OF INSTALLED COMPONENTS
Inches Feet/Inches 12" 18" 36" 48"
10 0'-10" 1 0 0 0
16 1'-4" 0 1 0 0
20 1'-8" 2 0 0 0
26 2'-2" 1 1 0 0
34 2'-10" 0 0 1 0
46 3'-10" 0 0 0 1
50 4'-2" 0 1 1 0
56 4'-8" 1 0 0 1
62 5'-2" 0 1 0 1
66 5'-6" 2 0 0 1
72 6'-0" 1 1 0 1
80 6'-8" 0 0 1 1
92 7"-8" 0 0 0 2
96 8'-0" 0 1 1 1
102 8'-6" 1 0 0 2
108 9'-0" 0 1 0 2
112 9'-4" 2 0 0 2
118 9'-10" 1 1 0 2
126 10'-6" 0 0 1 2
136 11'-4" 1 0 1 2
138 11'-6" 0 0 0 3
142 11'-10" 0 1 1 2
148 12'-4" 1 0 0 3
154 12'-10" 0 1 0 3
158 13'-2" 2 0 0 3
164 13'-8" 1 1 0 3
172 14'-4" 0 0 1 3
182 15'-2" 1 0 1 3
184 15'-4" 0 0 0 4
188 15'-8" 0 1 1 3
194 16'-2" 1 0 0 4
200 16'-8" 0 1 0 4
204 17'-0" 2 0 0 4
210 17'-6" 1 1 0 4
218 18'-2" 0 0 1 4
228 19'-0" 1 0 1 4
230 19'-2" 0 0 0 5
234 19'-6" 0 1 1 4
240 20'-0" 1 0 0 5
246 20'-6" 0 1 0 5
*
ADD
39"
FOR TFC/TLC3922 FIREPLACES
*
ADD
6"
FOR
8203D
CAP
*
ADD 3-3/4"
FOR
8204S
FLUE SUPPORT (IF NEEDED)
VERTICAL ELEVATION CHART
Chimney Only
Chimney Lengths
Number Of
Height Of
*
