PLANNING AHEAD
CHOOSING THE LOCATION FOR
THE FIREPLACE:

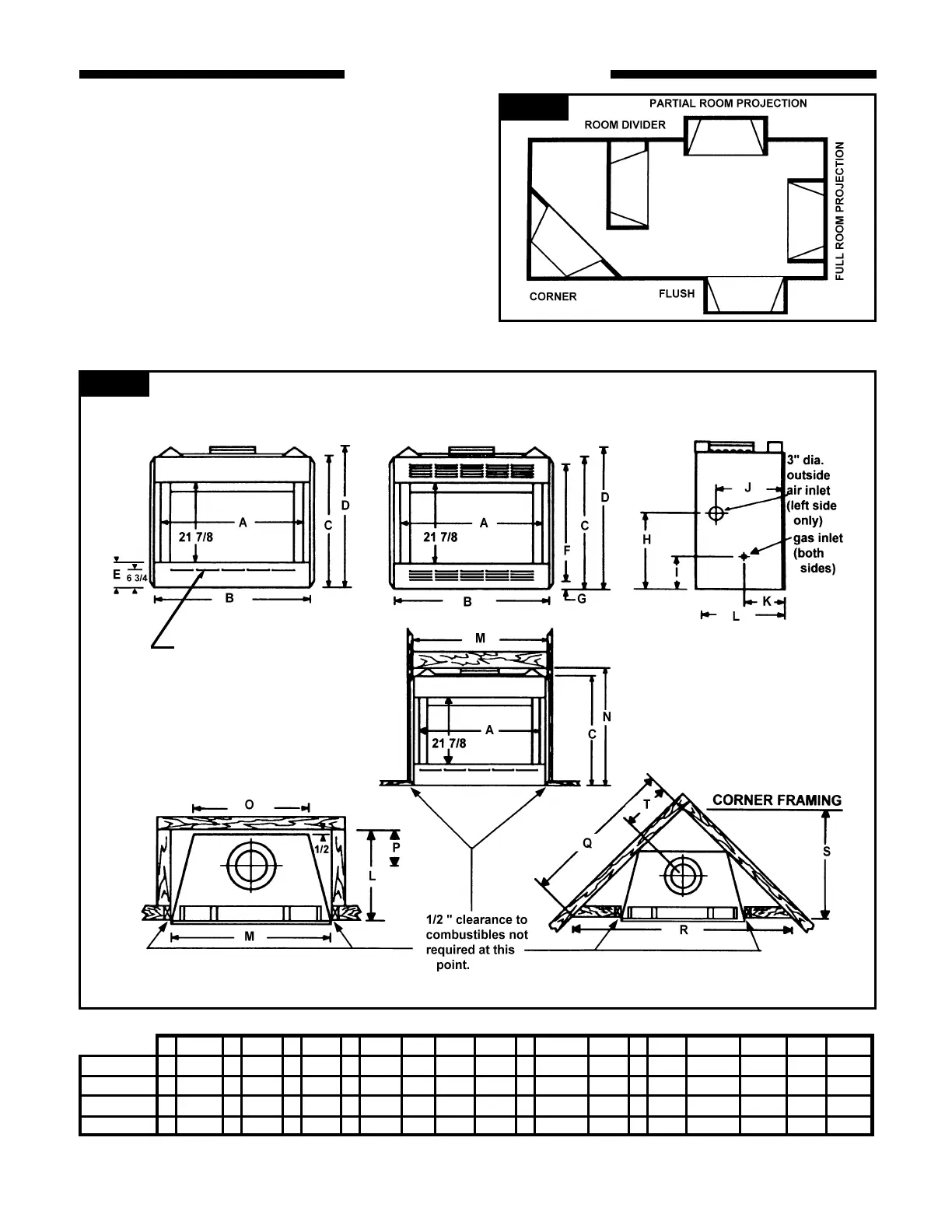

Figure 1 shows some of the many ways the fireplace may
be installed. Consider the traffic pattern in the room and
location doors and windows. A corner location may be best
where space is limited.
The fireplace weighs no more than common furniture. If the
fireplace is located near a load bearing wall, additional
supports to the foundation will not be necessary.
HEAVY FACINGS SUCH AS SOLID BRICK, STONE,
ETC., MAY REQUIRE ADDITIONAL FOUNDATION
SUPPORT.
ALTHOUGH THIS UNIT MAY BE INSTALLED ON
COMBUSTIBLE SURFACES, IT MUST NOT BE
Figure 1
Figure 2
Fireplace and Framing Dimensions (inches)
A B C D E F G H I J K L M N O P Q R S T
TLC36-3MB 36 38 1/2 35 37 3/4 7 31 1/4 2 12 1/8 8 5/8 15 1/2 9 21 38 3/4 38 1/4 22 8 7/8 46 65 32 1/2 14 3/8
TLC36-3MBE
36 38 1/2 35 37 3/4 7 31 1/4 2 12 1/8 8 5/8 15 1/2 9 21 38 3/4 38 1/4 22 8 7/8 46 65 32 1/2 14 3/8
TLC42-4MB 42 44 9/16 39 41 1/2 8 33 3 17 9 3/4 18 10 1/2 22 44 13/16 41 3/4 32 8 1/2 54 76 1/4 38 1/8 17 5/8
TFC36-3M 36 38 1/2 35 37 3/4 7 N/A - 12 1/8 8 5/8 15 1/2 9 21 38 3/4 38 22 8 7/8 46 65 32 1/2 14 3/8
4
TLC42-4MB ONLY
