DIGITAL PID CONTROLLER

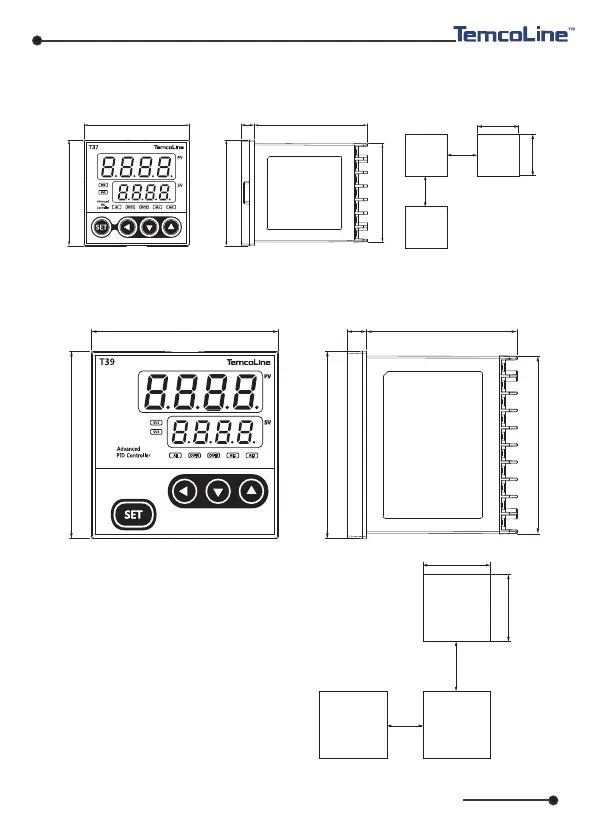

4) T37 (72x72 mm) Dimensions
5) T39 (96x96 mm) Dimensions
10
(Unit: mm)
(Unit: mm)
T37 (72x72) Panel cutouts
Min. 20
68
±0.5
68
±0.5
Min. 30
T39 (96x96)
Panel cutouts
Min. 20
92
±0.5
92
±0.5
Min. 30
72.0
9.0 77.0
72.0
67.0
72.0
96.0
77.0
96.0
91.0
10.0
96.0
