DIGITAL PID CONTROLLER

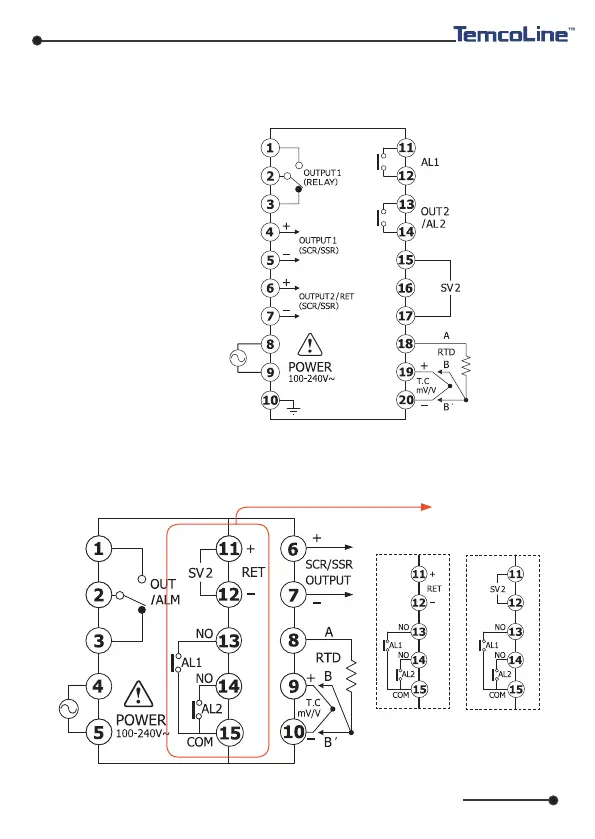

4. Terminal arrangements and Wirings
1) T32 (48x96 mm), T33 (96x48 mm)
2) T34 (48x48 mm
)
12
T32, T33
T34
Option 1
(T34-S1x)
Option 3
(T34-S3x)
OPTION
