DIGITAL PID CONTROLLER
(2)

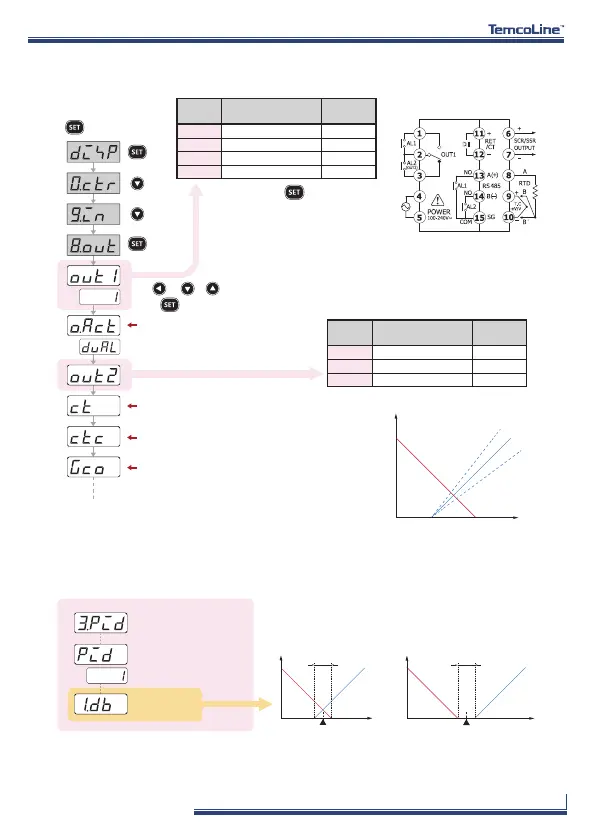

Setting of heating and cooling control PID control mode
Press and hold for
more than 3 seconds
Selecting Output Operation (REV, DIR, DUAL)
REV : Heating control
DIR : Cooling control
Dual : Heating and cooling control
Use or , key to adjust the setting number corresponding to the output type, and then save it
using key.
※ Caution!
In Heating & cooling mode, control output uses alarm 2
output, so must be change to alarm 1 or alarm 3 when
using alarms.
Cycle time in heating (output 1) SSR or relay
※ It is not used in the SCR (4 to 20 mA) mode,
so it will not be displayed.
Cycle time in Cooling (output 2) SSR or relay
※ It is not used in the SCR (4 to 20 mA) mode,
so it will not be displayed.
The cooling gain setting range can be set from 0.1 to 10.0
※ Explanation of operation according to dead band value
The default value is set to 0.0% and does not need to be
set except in special cases.
output
of heating
output
of heating
output
of cooling
output
of cooling
T50 SERIES
(3)
Dead band setting
It is used only for heating / cooling control and sets the dead zone area of
heating and cooling.
Example) Model T54-C10
SSR P.I.D 제어
SCR (4~20mA) P.I.D 제어
RELAY P.I.D 제어
⑪, ⑫
⑪, ⑫
⑭, ⑮
1
2
3
PID group menu
Select group (default)
Dead band setting
(-100 ~ 100%)
short
※
Press and hold key for more than
3 seconds in any menus to return to Normal
operation mode. After the auto tuning is
completed, the entry of the input and
output setting menu is automatically blocked.
Please refer to the instruction manual if
reset and release are required.
PV
SV
PV
SV
T54
D.I
Cooling Gain
GCO Operation
Heating side
proportional band
Cooling side
proportional band
0 PV
output
Gco > 1.0
Gco = 1.0
Gco < 1.0
+ value(Dead band)
- value(Overlap band)
0 PV
output output
Set value(target) Set value(target)
0 PV
Output
selection
number
Output
terminal
RELAY ON/OFF control
SSR P.I.D control
SCR (4~20mA) P.I.D control
RELAY P.I.D control
Example) Model T54-C10
①, ②, ③
⑥, ⑦
⑥, ⑦
①, ②, ③
0
1
2
3
Output
selection
number
Output
terminal
Heating or cooling
control (output 1)
Heating or cooling
control (output 2)
Only displayed during dual (heating and cooling) control
10
To Next Page
