DIGITAL PID CONTROLLER
33
Enter to P.I.D setting group
Anti Reset Wind-up setting
P.I.D group selection
n. Proportional (P)
n. Integral time (I)
n. Differential time (D)
n. Manual reset (M.R)
n. Hysteresis band
n. Zone position setting
-
Auto /
50.0 ~ 200.0 %
0 / 1 ~ 3
OFF / 0.1 ~ 999.9
℃
(OFF = ON/OFF)
OFF / 1 ~ 6000 sec.
OFF / 1 ~ 6000 sec.
-5.0 ~ 105.0 %
-100.0 ~ 50.0 %
EU (0)＜ 1.RP＜ 2.RP
＜ EU (100.0 %)
PID control
PID control
Always
PID group
selection
Always
Always
ntegral time
OFF
Heating and
Cooling type
ZONE=ON
-
AUTO
1
20.0 %
240 sec.
60 sec.
50.0 %
3.0 %
EU (100.0 %)

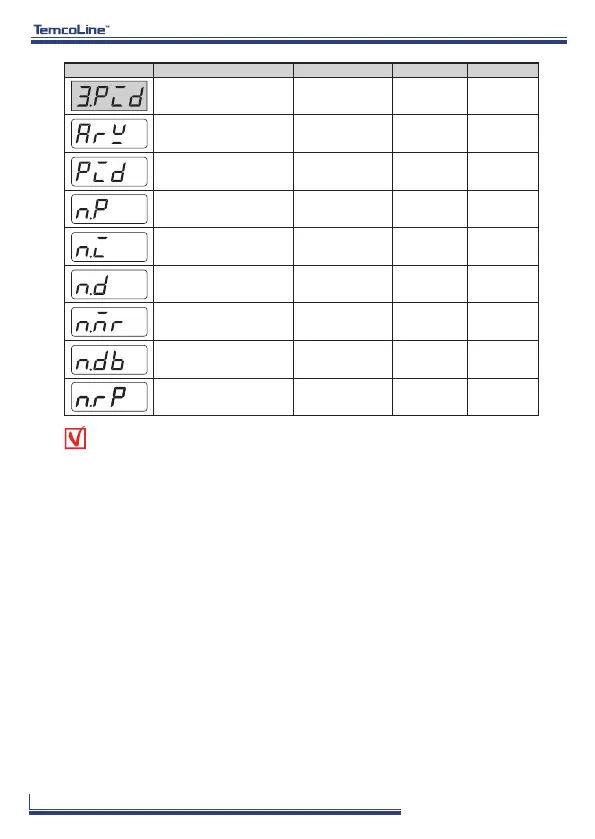

display description setting range condition initial value
The meaning of the n symbol in the table indicates that there are a total of three
groups (SV1-3), such as n.P. In other words, you can set the P, I, D parameter
values separately applied according to SV number selection. Up to three P, I, and
D values can be set and individually controlled to achieve optimal control for
each temperature step.
