Tempco TEC-2400 - Menu Flowchart; User Menu

Page 10 of 44

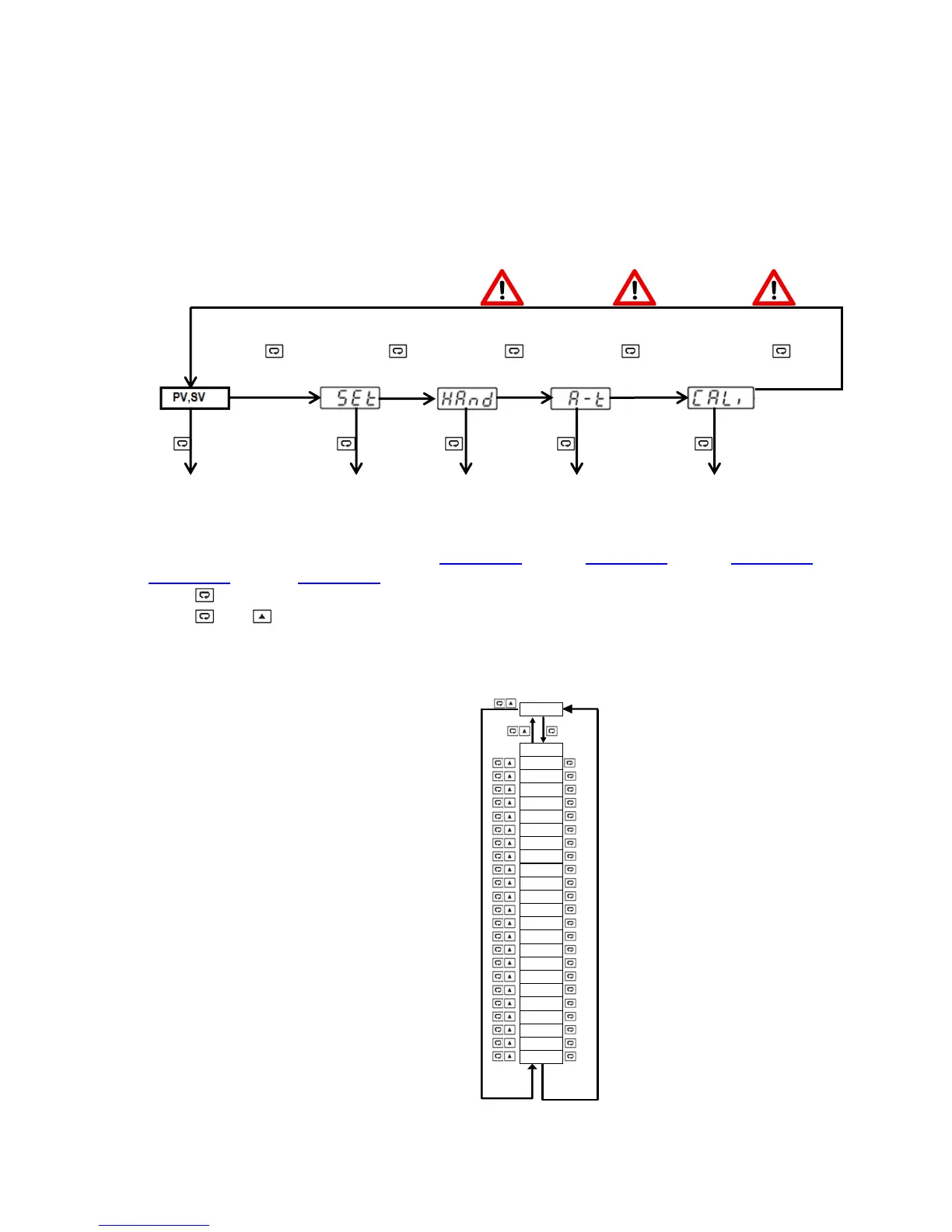

1.5 Menu Flowchart
The Menu has been divided in to 5 groups. They are as follows:
1. User Menu
2. Setup Menu
3. Manual Mode Menu
4. Auto-Tuning Mode Menu
5. Calibration Mode Menu (not recommended, calibration section has been removed)
User Menu
Setup
Menu
Manual Mode
Auto-Tuning Mode
Calibration Mode
5 Sec 6.2 Sec 7.4 Sec 8.6 Sec 9.8 Sec
5 Sec 5 Sec 2 Sec Min
3 Sec Max
To access
parameter
In the User Menu,
Refer to
Section 1.5.1
To access
parameter in
the Setup Menu,
Refer to
Section 1.5.2
To start
Manual Control
Mode, Refer to
Section 1.5.3
To start
Auto-Tuning
Mode, Refer to
Section 1.5.4
To access
Calibration Mode,
Refer to
Section 1.5.5
Press for the next parameter
Press and key to return to the previous parameter.
1.5.1 User Menu
The below user menu parameters are available depending on user selection.
PV,SV
SP1
SP2
SP3
SP4
SP5
SP6
SP7
SFtR
CT1 R
CT2 R
DTMR
PASS
RUN
CYCR
ST EP
TIMR
SEL1
SEL2
SEL3
SEL4
SEL5
SEL6
SEL7
SEL8
