3.13
Manual Tuning
In certain applications, using Auto-Tuning to tune a process may be inadequate. If this is the case, the
user
can try manual tuning.
The following
guidelines
can be applied for further adjustment of PID values.
ADJUSTMENT SEQUENCE
SYMPTOM
SOLUTION
Proportional Band ( PB )
Slow Response
Decrease PB
High
overshoot or
Oscillations
Increase PB
Integral Time ( TI )
Slow Response
Decrease TI
Instability or
Oscillations
Increase TI
Derivative Time ( TD )
Slow Response or
Oscillations
Decrease TD
High Overshoot
Increase TD

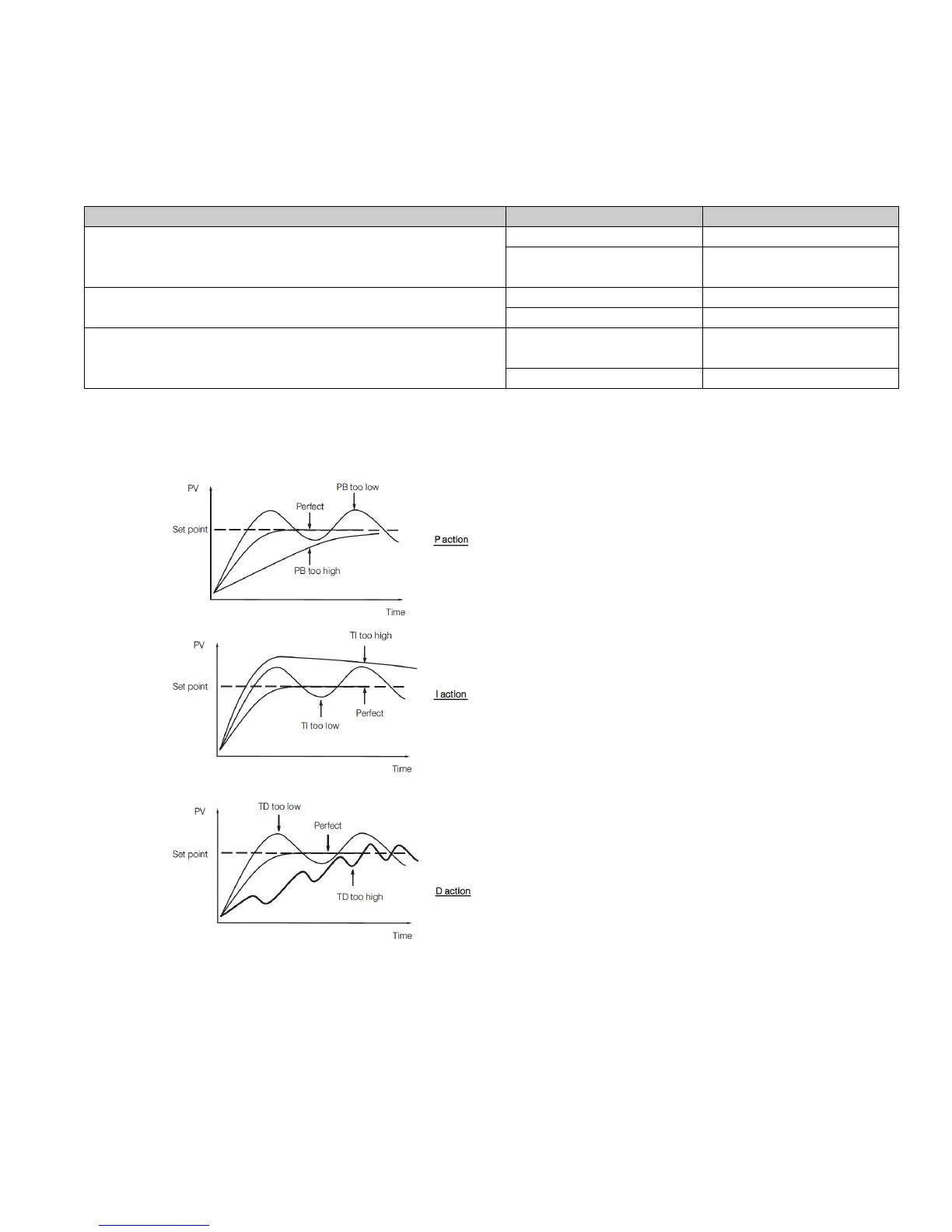

Effects of PID
Adj
ustment are as f
ollows. Note t
hat this is a
guide only, and
your specific app
lication may be d
ifferent.
34
