TempMaster ZV Series - ZVT06 through T12 Unit Clearances

5567613-TIM-B-1218
14 Johnson Controls Ducted Systems

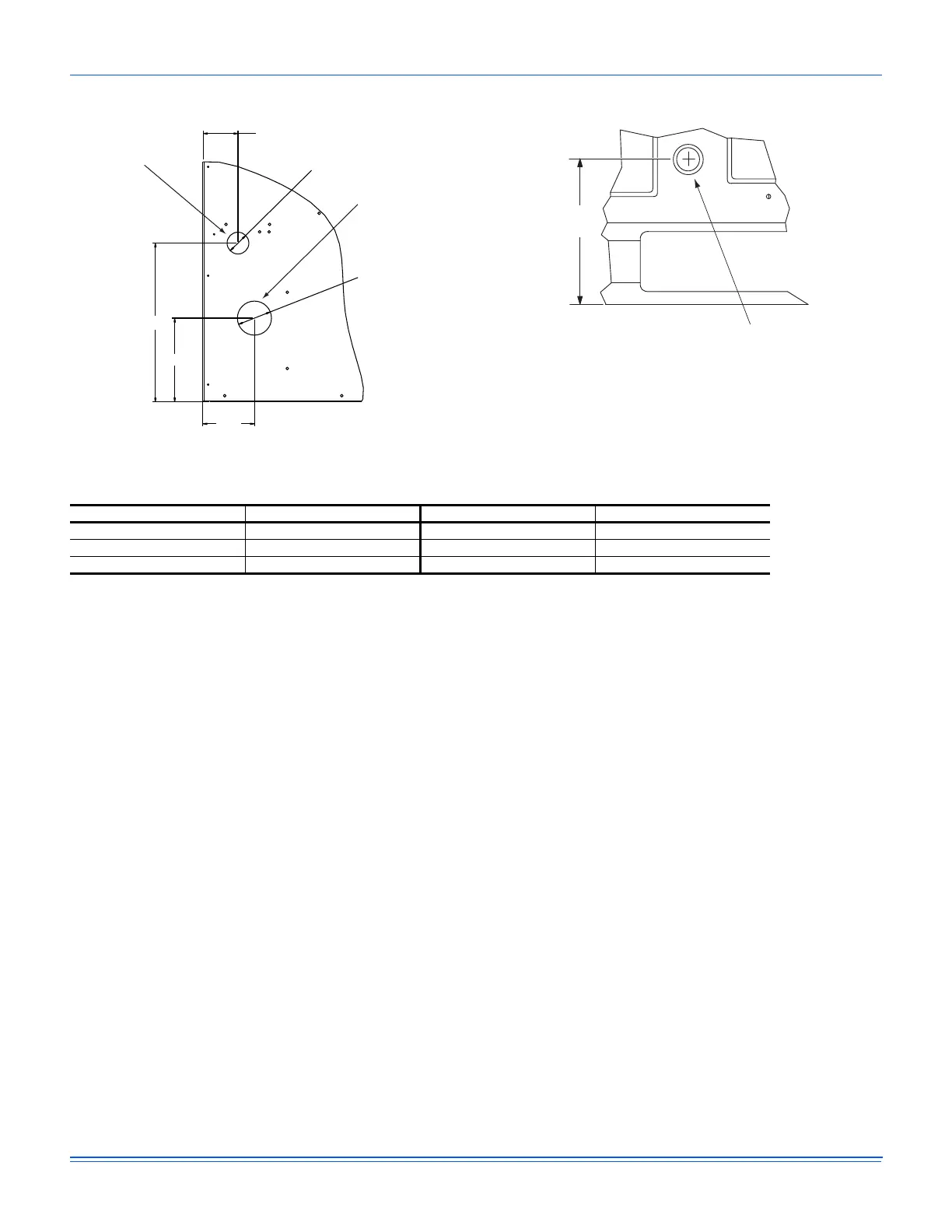

Detail A Detail B
42” CABINET
Ø 3.126
Ø 2.000
3.184
4.727
7.705
14.594
Gas Pipe Inlet
Gas Exhaust Vent
5-3/8
1” FPT
Table 7: ZVT06 through T12 unit clearances
Direction Distance (in.) Direction Distance (in.)
Top
1
1. Units must be installed outdoors. Make sure that overhanging structures or shrubs do not obscure the condenser air
discharge outlet.
72 Right 12
Front 36 Left 36
Rear 36 Bottom
2
2. Units may be installed on combustable floors made from wood or class A, B or C roof covering materials.
0
