TempMaster ZV Series - ZVT06 through T08 unit side duct openings; ZVT10 through T12 unit side duct openings

5567613-TIM-B-1218
Johnson Controls Ducted Systems 17

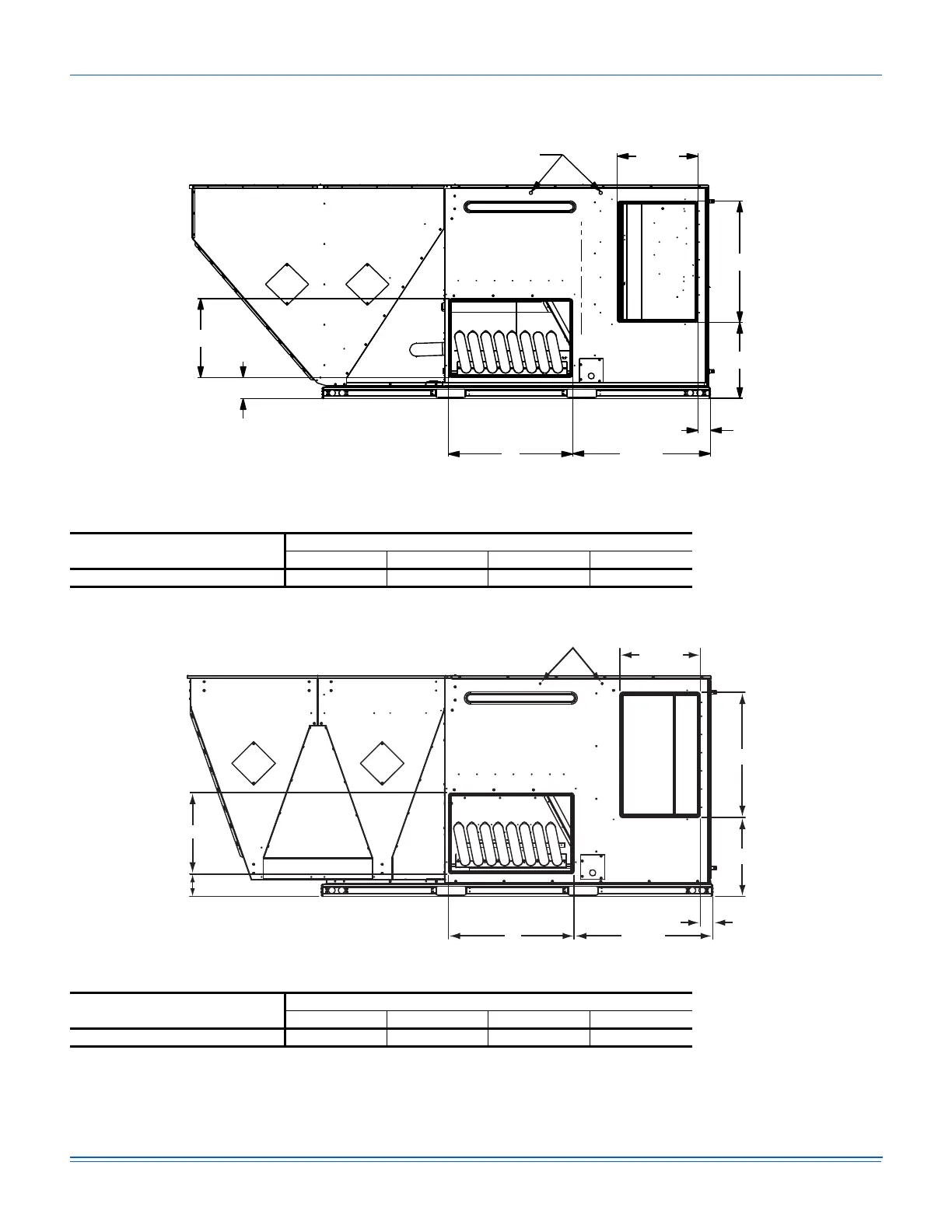

ZVT06 through T08 unit side duct openings
ZVT10 through T12 unit side duct openings
Table 8: ZVT06 through T08 side duct dimensions
Unit model number
Dimension (in.)
ABCD
ZVT06, T07, T08 28 1/4 18 1/16 28 1/4 18 1/4
Table 9: ZVT10 through T12 side duct dimensions
Unit model number
Dimension (in.)
ABCD
ZVT10, T12 28 1/4 18 1/16 28 1/4 18 1/4
Dot Plugs
2-7/8
5-5/32
D
C
31-5/8
18-1/4
B
A
Dot Plugs
2-7/8
5-5/32
D
C
31-5/8
18-1/4
B
A
