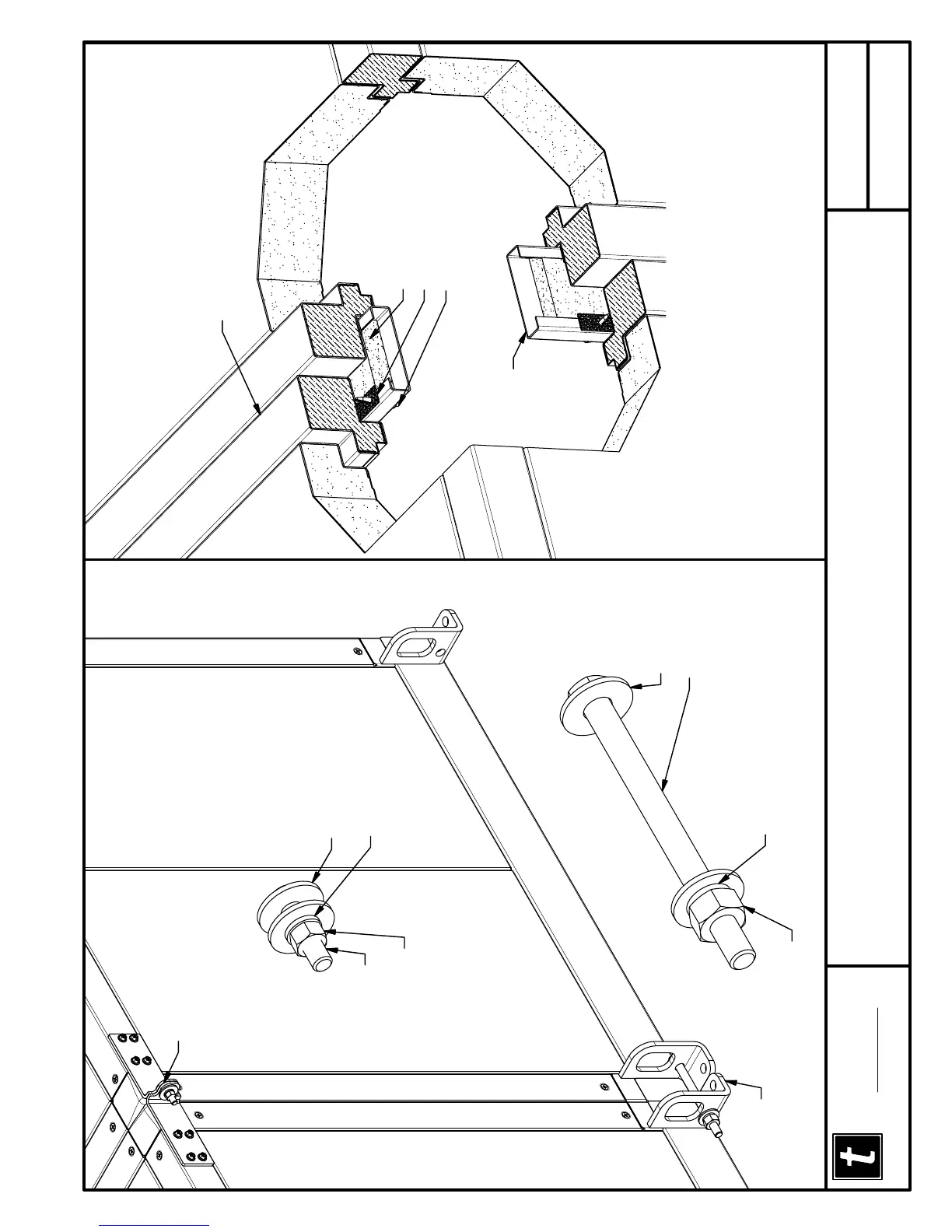

ITF Demount Instructions
1a.) Units are shipped fully assembled and sealed unless they exceed maximum shipping
capabilty. Field disassembly will be the responsibility of the installing contractor.
1b.) Remove protective covering from the ends of each segment
(only if unit is shipped in multiple pieces).
2.) Set and level first segment. Set and level next segment.
3.) Bolt lifting & roof lugs together on the exterior of the unit.
4.) Install Internal Demount Covers. (as shown)
5.) (Rooftop Only) See "Weatherproofing Roof Top Demount Seams" detail
6.) Repeat the above for each additional segment.
Lifting Lug
Roof Lug
(IDC)
(IDC) 1" x 4" Internal Demount Cover
Factory Pre-insulated & Gasketed.
IDC - Insulation
IDC - 1/4"x3/4" Gasket
Hex Head Bolt
0.5"-13 x 6.5"
(2) 0.5" Washers
0.5"-13 Hex Nut
0.5" Lock Washer
Lifting Lug
Hardware
IDC - Fastener
Roof Lug
Hardware
(2) 0.375"
Washers
0.375" Lock
Washer
Hex Head Bolt
0.375"-16 x 1.5"
0.375"-16
Hex Nut
Caulk Demount Seam
