(F) MAINTENANCE (Con’t)
Fan Wheel/Cone Alignment (Continued)

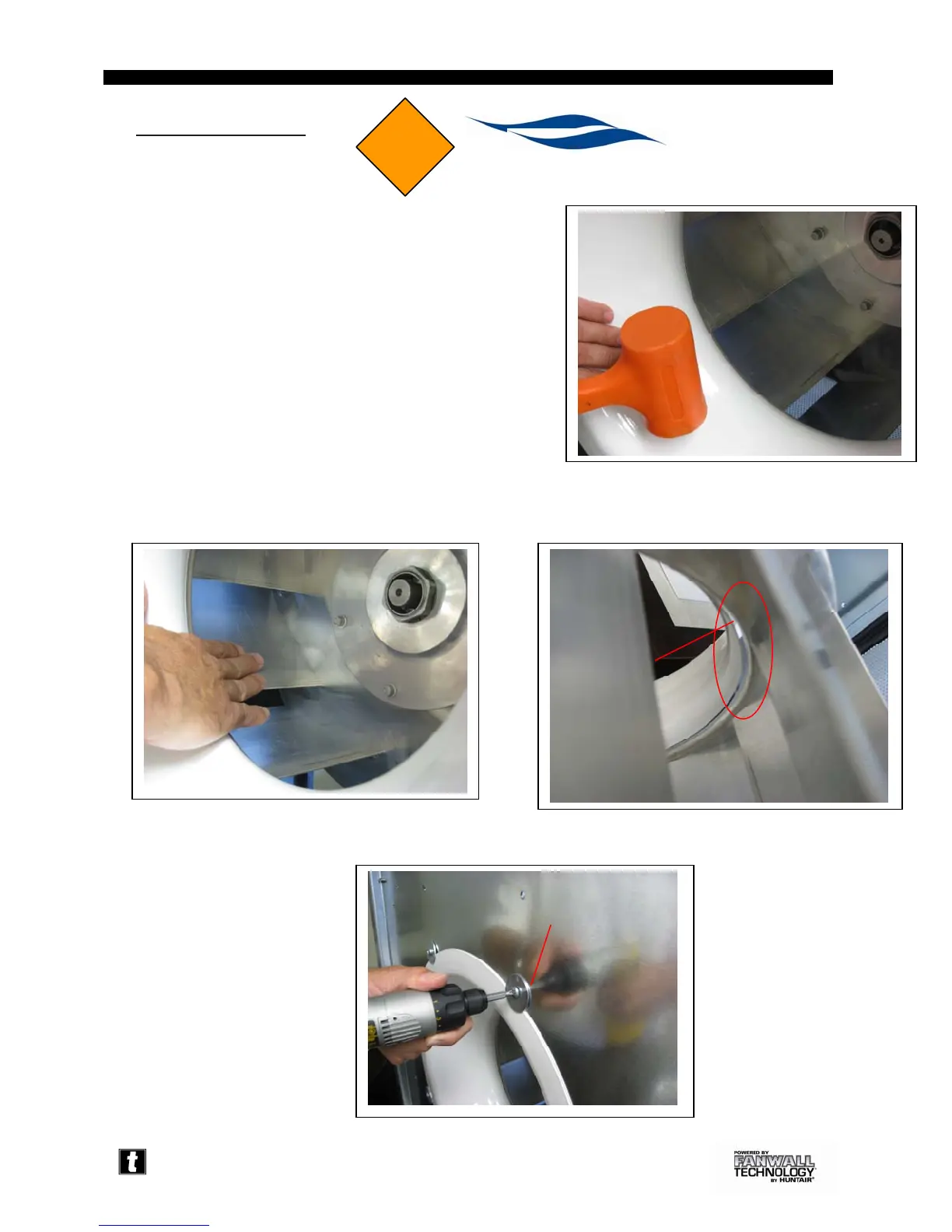

(6) Using a rubber mallet, gently, tap around the cone
until desired clearance is acquired between
fan wheel and cone.
(7) Gently rotate the fan wheel to verify cone adjustment
for proper clearance from fan wheel.
(8) Tighten all the cone retaining fasteners.
(9) Once again gently rotate the fan wheel to verify
cone alignment.
(10) To install fan wheel/cone assembly, reverse the
steps above.
Fan Cartridge
Framing
Gently Rotate
Fan Wheel
Proper
Clearance
From Wheel
Gently Tap Cone
Cone Retaining
Fasteners
FWR
FWT
Ste
-6
Step – 7a/b & Step - 9
Ste
7a/b & Ste
9
Ste
- 8
