Temtrol SERIES ITF - Page 73

FWR/FWT 10
Page 25
Temtrol
,
Inc. ®
Manufacturers of ….. Customized Air Handling Units
(F) MAINTENANCE (Con’t)

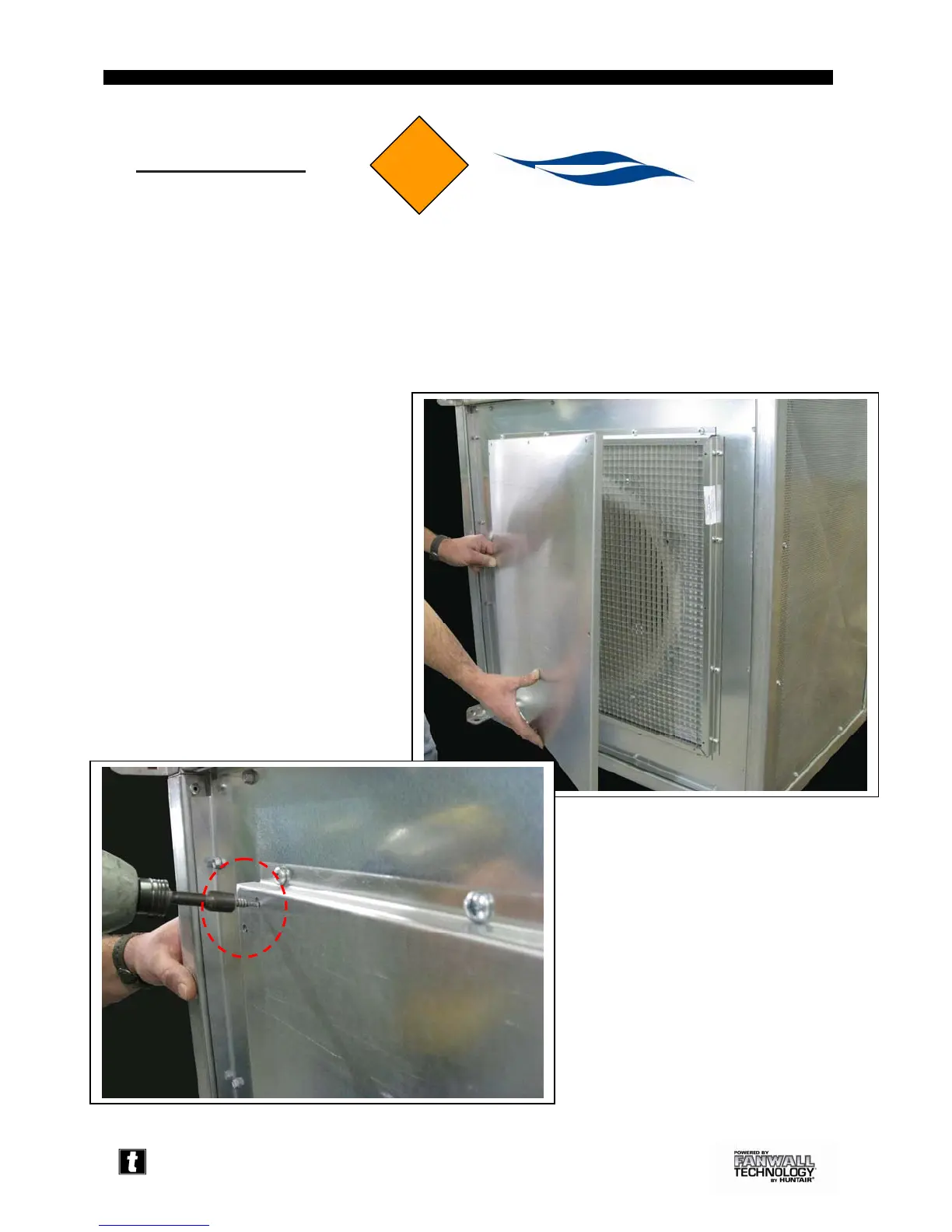

Blank-Off Plate (If Applicable)
(9) Match up the holes in both airflow straightener
and the blank-off plate, it may require a gently tap
to set into place. Secure it with hex head fastener in
the pre-drilled holes furnished.
(10) To remove blank-off plate, reverse the steps above.
FWR
FWT
Fanwall Cube
Blank-Off
Plate
Blank-Off
Plate
Inlet Side
Inlet Side
Ste
p
–
4 a/b
Ste
p
–
4 a/b
