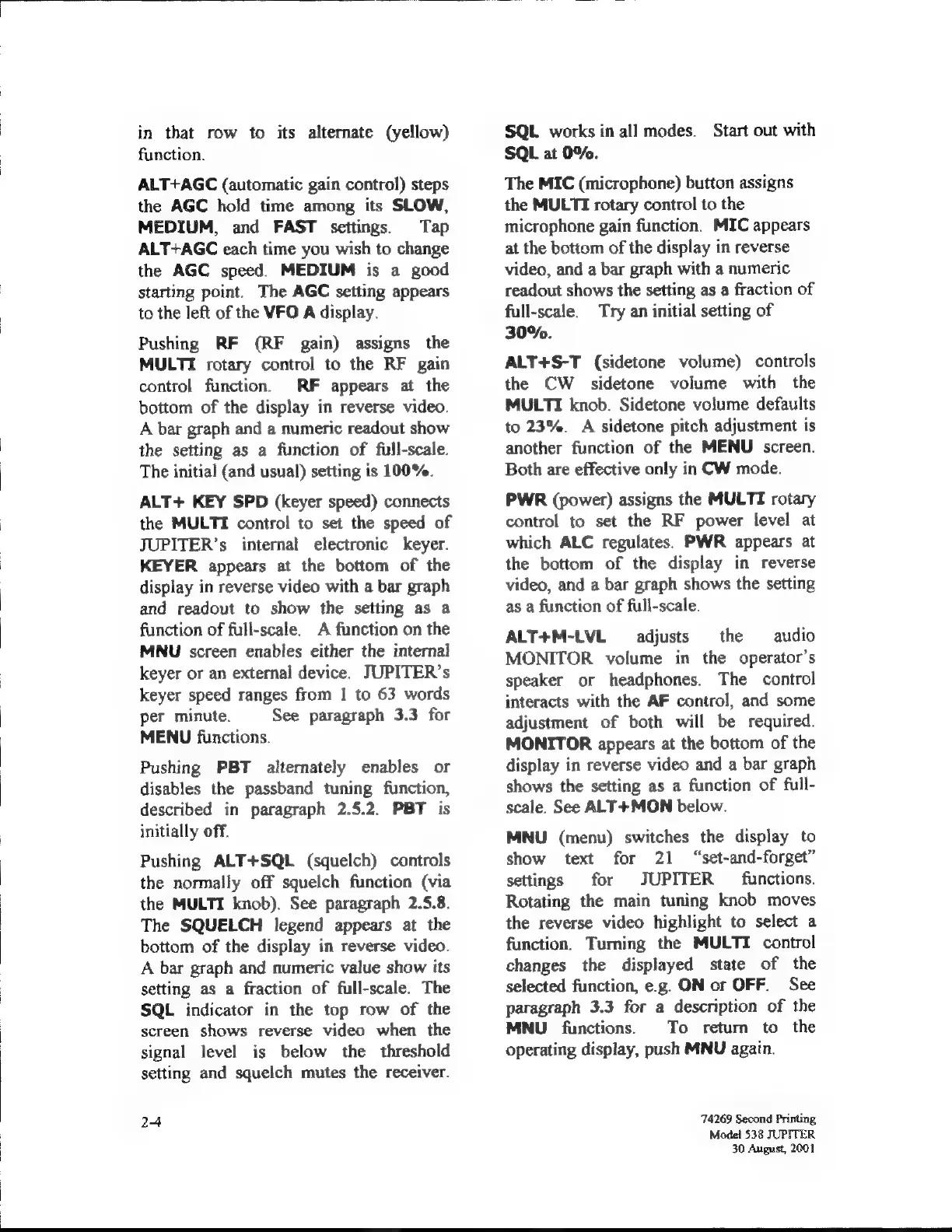

in
that
row
to
its
alternate
(yellow)
function.
ALT+AGC
(automatic
gain
control)
steps
the
AGC
hold
time
among
its
SLOW,
MEDIUM,
and
FAST
settings.
Tap
ALT+AGC
each
time
you
wish
to
change
the
AGC
speed
MEDIUM
is a
good
starting
point.
The
AGC
setting
appears
to
the
left
of
the
VFO
A
display.
Pushing
RF
(RF
gain)
assigns
the
MULTI
rotary
control
to
the
RF
gain
control
function.
RF
appears
at
the
bottom
of
the
display
in
reverse
video.
A
bar
graph
and
a
numeric
readout
show
the
setting
as
a
function
of
full-scale.
The
initial
(and
usual)
setting
is
100%.
ALT+
KEY
SPD
(keyer
speed)
connects
the
MULTI
control
to
set
the
speed
of
ЛРПЕК
internal
electronic
Кеуег.
KEYER
appears
at
the
bottom
of
the
display
in
reverse
video
with
a
bar
graph
and
readout
to
show
the
setting
as
a
function
of
full-scale.
А
function
on
the
MNU
screen
enables
either
the
internal
keyer
or
an
external
device.
JUPITER's
keyer speed
ranges
from
1
to
63
words
per
minute.
See
paragraph
3.3
for
MENU
functions.
Pushing
PBT
alternately
enables
ог
disables
the
passband
tuning
function,
described
in
paragraph
2.5.2.
PBT
is
initially
off.
Pushing
ALT+SQL
(squelch)
controls
the
normally
off
squelch
function
(via
the
MULTI
knob).
See
paragraph
2.5.8.
The
SQUELCH
legend
appears
at
the
bottom
of
the
display
in
reverse
video.
A
bar
graph
and
numeric
value
show
its
setting
as
a
fraction
of
full-scale.
The
SQL
indicator
in
the
top
row
of
the
screen
shows
reverse
video
when
the
signal
level
is
below
the
threshold
setting
and
squelch
mutes
the
receiver.
24
SQL
works
in
all
modes.
Start
out
with
SQL
at
0%.
The
MIC
(microphone)
button
assigns
the
MULTI
rotary
control
to
the
microphone
gain
function.
MIC
appears
at
the
bottom
of
the
display
in
reverse
video,
and
a
bar
graph
with
a
numeric
readout
shows
the
setting
as
a
fraction
of
full-scale.
Try
an
initial
setting
of
30%.
ALT+S-T
(sidetone
volume)
controls
the
CW
sidetone
volume
with
the
MULTI
knob.
Sidetone
volume
defaults
to
23%.
A
sidetone
pitch
adjustment
is
another
function
of
the
MENU
screen.
Both
are
effective
only
in
CW
mode.
PWR
(power)
assigns
the
MULTI
rotary
control
to
set
the
RF
power
level
at
which
ALC
regulates.
PWR
appears
at
the
bottom
of
the
display
in
reverse
video,
and
a
bar
graph
shows
the
setting
as
a
function
of
full-scale.
ALT+M-LVL
adjusts
the
audio
MONITOR
volume
іп
the
operator's
speaker
ог
headphones.
The
control
interacts
with
the
AF
control,
and
some
adjustment
of
both
will
be
required.
MONITOR
appears
at
the
bottom
of
the
display
in
reverse
video
and
a
bar
graph
shows
the
setting
as
a
function
of
full-
scale.
See
ALT+MON
below.
MNU
(menu)
switches
the
display
to
show
text
for
21
"set-and-forget"
settings
for
JUPITER
functions.
Rotating
the
main
tuning
knob
moves
the
reverse
video
highlight
to
select
a
function.
Turning
the
MULTI
control
changes
the
displayed
state
of
the
selected
function,
e.g.
ON
or
OFF.
See
paragraph
3.3
for
a
description
of
the
MNU
functions.
To
retum
to
the
operating
display,
push
MNU
again.
