10Revision 1.1 08/18/2005

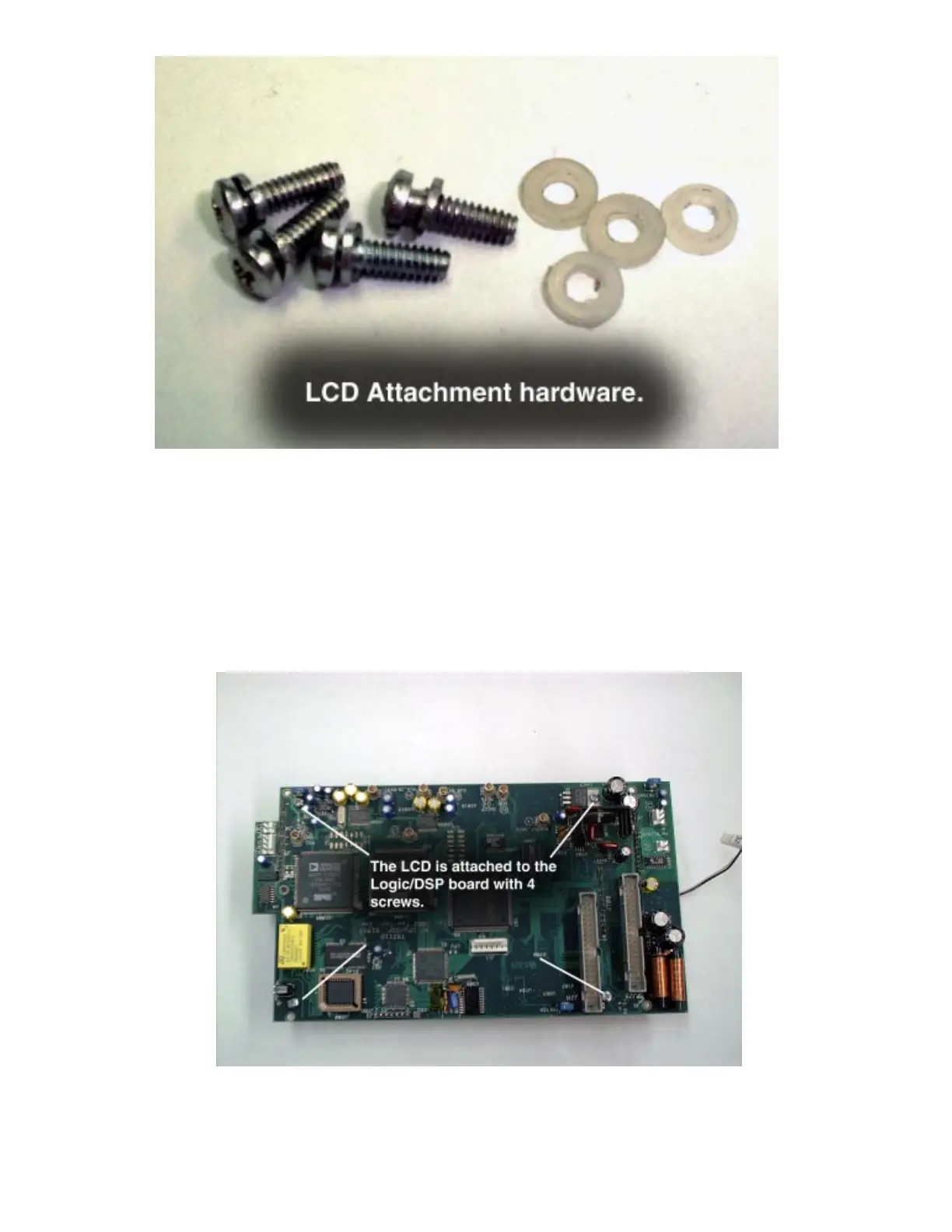

Step 12: Reattach the LCD to the Logic/DSP circuit board. Be sure
to reinstall any insulators removed during disassembly.
Note! The LCD panel is attached to the Logic/DSP board using 4
screws at locations shown.
