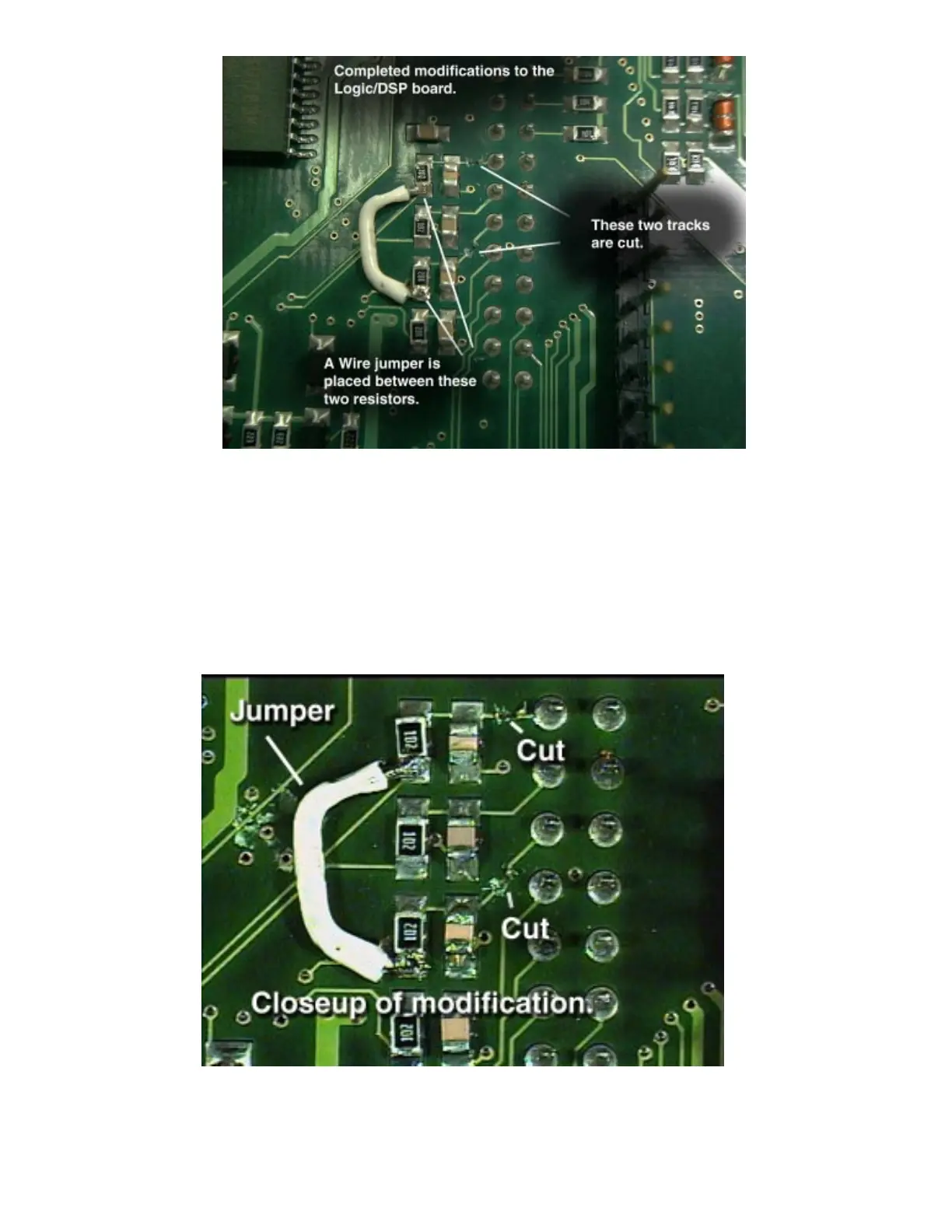

Step 11: The modification involves cutting two tracks and adding a
short wire jumper between two resistors. This is shown in the diagram
above.
A magnified closeup of the modification.
