8Revision 1.1 08/18/2005

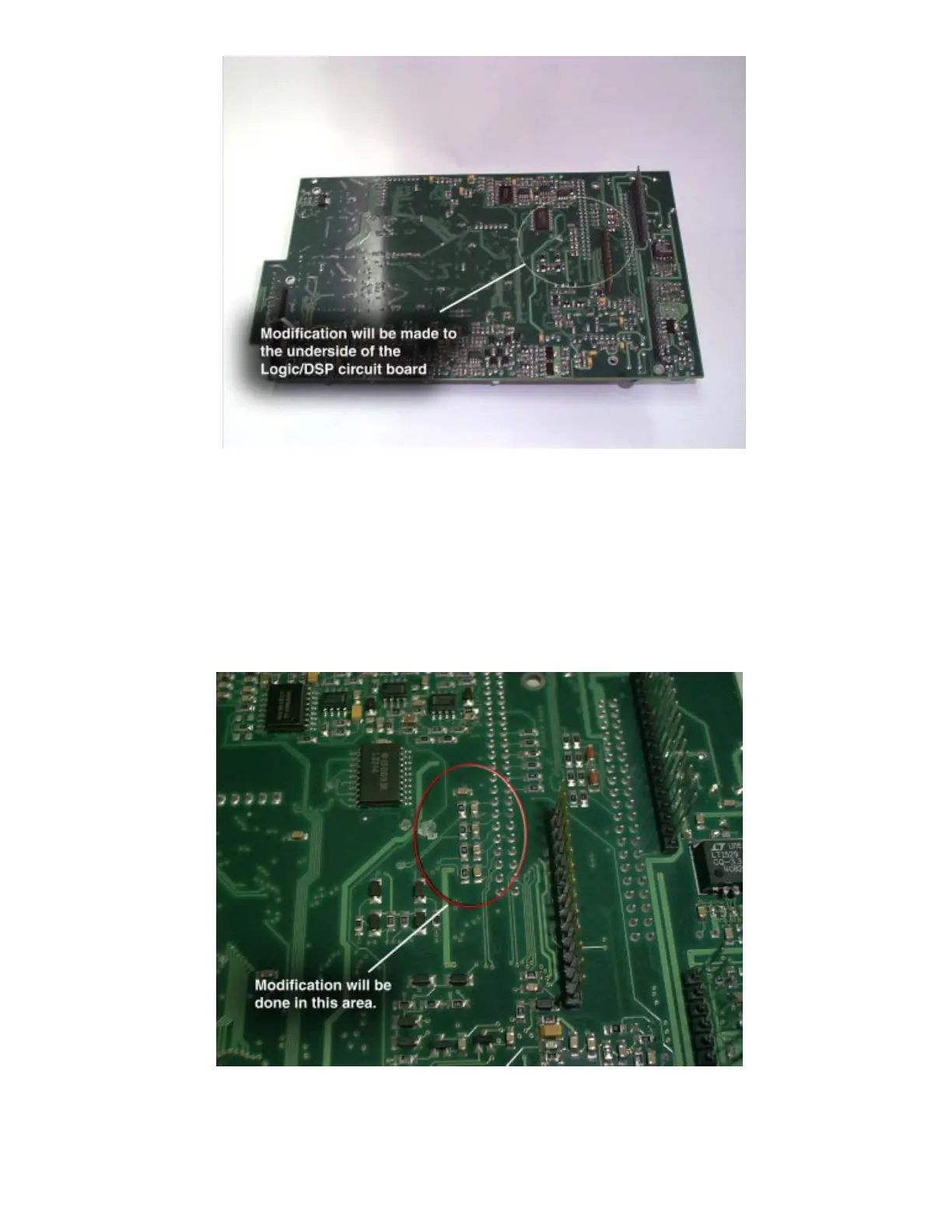

Step 10: Flip the logic board over so the major components are face
down. Locate the general section of the board indicated above.
