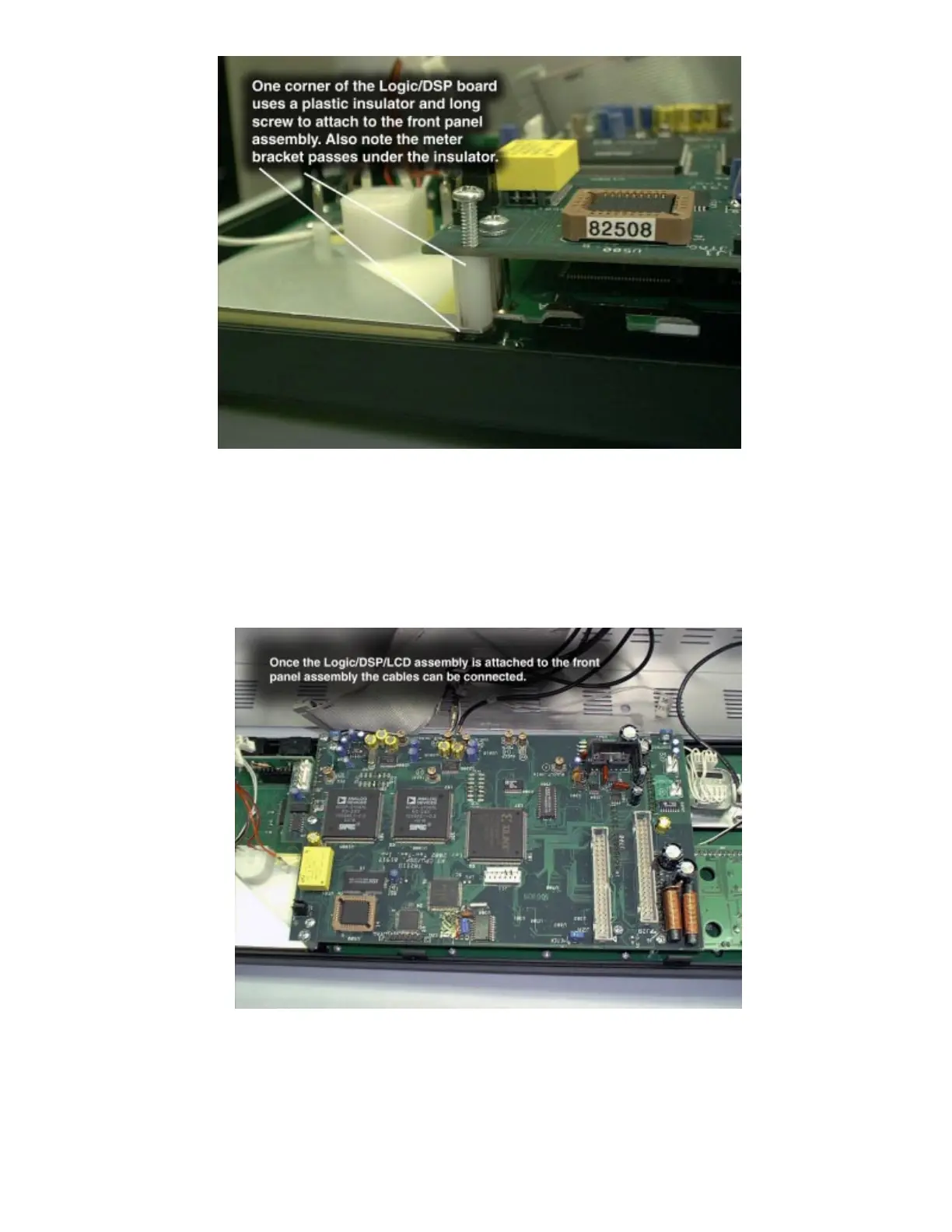

NOTE! One corner of the board is attached to the front molding by
a long screw passed through a large plastic insulator and the meter
mounting bracket. Confirm that the meter movement is properly
seated in the front panel plastic before tightening the screw.
Step 15: Reattach all cables except the ribbon cables. Cables are marked
with a number and there is a corresponding number on the circuit board.
Coax cables must be centered before they seat. This takes some practice
and often is easier with a pair of needle nose pliers. Mass term cables
plug in easily.
