Super easy IP Camera
13

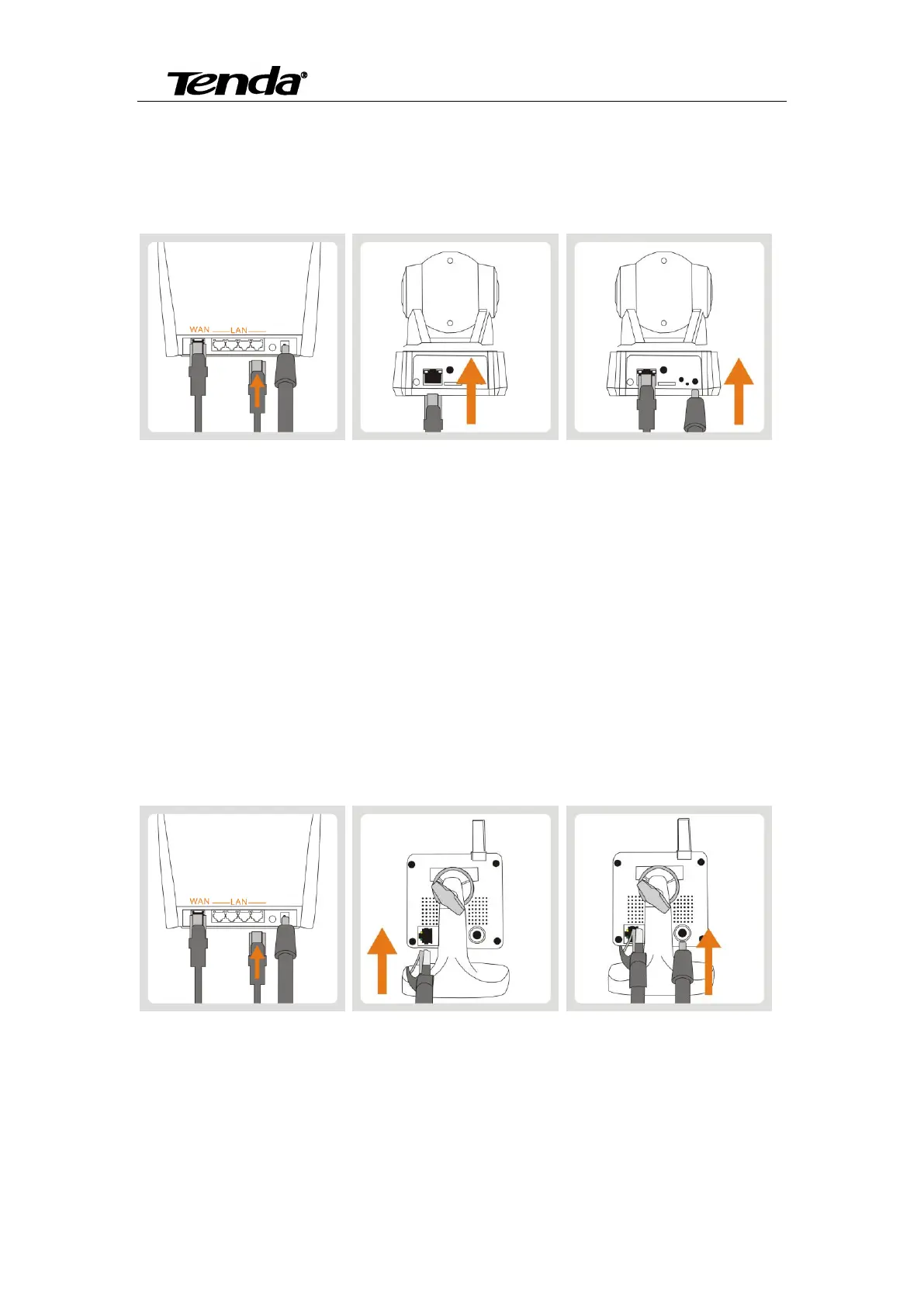

2.1.3 Hardware Connection
2.1.3.1 PTZ Camera
Figure1. Connect an Ethernet cable to the LAN port on your router.
Note: If your Router connected to a MODEM.The camera is unable to connect to the port of the
MODEM.
Figure2. Connect the other end of the Ethernet cable to the network interface of the camera.
Figure3. Connect the power adapter to the power receptacle of the camera, the other end of the
power adapter to a nearby power strip. (Make sure power adapter is plugged properly into device
power receptacle. Some users may mistakenly plug the power connector to device's audio
interface)
2.1.3.2 Cube IP Camera
Figure 1.Connect an Ethernet cable to the LAN port on your router. Note: If your Router
connected to a MODEM.The camera is unable to connect to the port of the MODEM.
Figure 2.Connect the other end of the Ethernet cable to the network interface of the camera.
Figure 3.Connect the power adapter to the power receptacle of the camera, the other end of the
